Femto-second Lasers

FSH Series Femtosecond Fiber Lasers

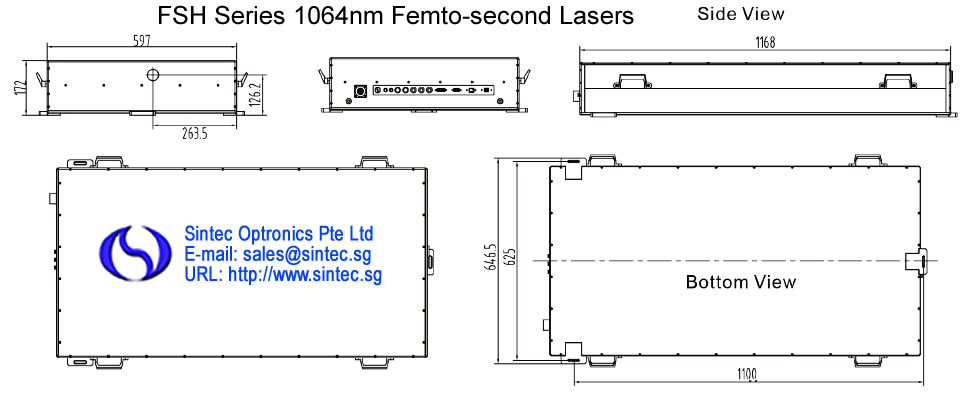

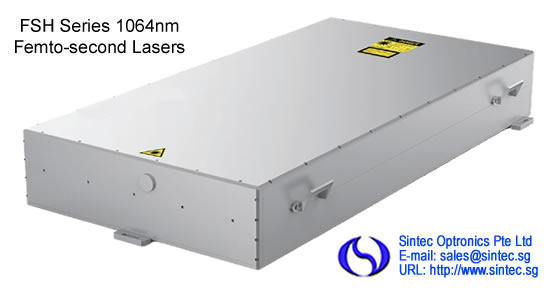

1. FSH Series Femto-second Fiber Lasers

The FSH series fiber lasers are stable and reliable femtosecond pulsed fiber lasers. This series of products adopts integrated optical and electrical design, pulse width less than 350fs, single pulse energy up to 200μJ, and supports Burst Mode, which can be widely used in semiconductor wafer processing, glass and other hard and brittle materials processing or Welding, processing and processing of polymer materials, medical device manufacturing, ceramics and polymer processing.

Feature:

• Single pulse energy up to 200 microjoules

• Support Burst Mode

• Pulse width less than 350fs

• Optical and electrical integrated design

• One-button operation without any adjustment knob

• Built-in optical isolation device

• Built-in pulse selector

• Remote control, maintenance free

Applications:

• Semiconductor wafer processing

• Ceramic and polymer processing

• Diamond processing

• New energy material processing

• Hard and brittle material processing and welding

• Polymer material processing

2. FSH Series Narrow Pulse Width Femto-second Fiber Lasers

FSH-Femto-NP (Narrow Pulse Width) series femtosecond fiber lasers can support the pulse width sub 150fs and average output power up to 5 W. Internal second harmonic generation module is also optional. The applications include micromachining, photo polymerization, Multiple photon excitation, Biological Imaging, ultrafast spectroscopy etc.

Feature:

• Pulse width <150fs

• Average power 1-5W

• Support 1035/517nm output

• Internal optical isolator

• Internal power monitor

FSY Series Femtosecond Fiber Lasers

FSY series femtosecond fiber lasers have been widely used in the material micro-processing field. Our femtosecond fiber lasers offer >80W average power, >5MHz repetition rate with the pulse energy upto 100µJ.
