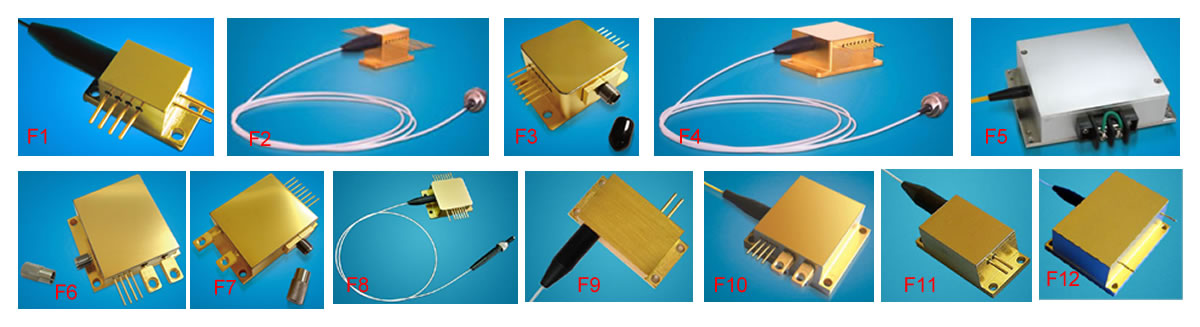

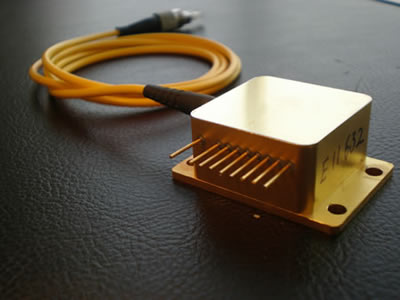

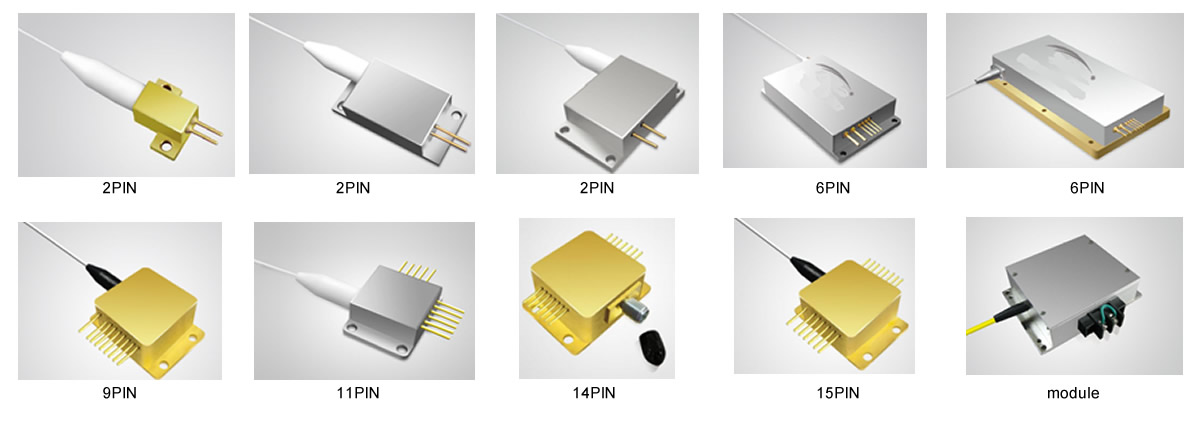

Fiber-coupled Laser Diodes

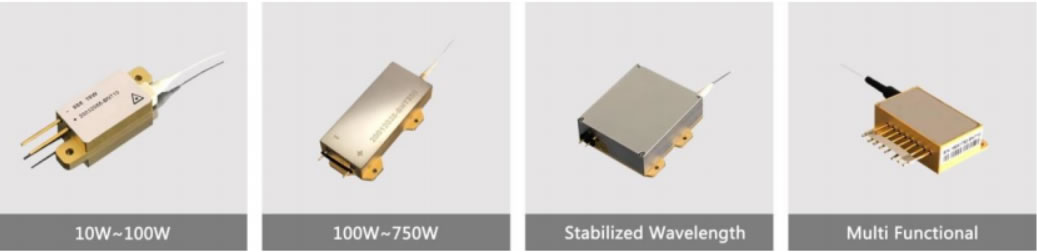

SBN Series Fiber-coupled Laser Diodes

We, a diode laser company, manufacture high-power diode lasers and systems in a wide range of output powers and wavelengths Including wafer growth and slicing, fiber coupling and bar stacking laser. More than 1000 models are for your choice. Established in 2011, over 60 technicians and 2 scientists, 20 of them are PHD degree. Production site is 1000Class Lab Clean Room with 5000sqm. Our current turnover per year is about 20million US Dollars with 30% growth year on year. Our strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.

Optical

Central Wavelength	793nm, 808nm, 830nm, 915nm, 940nm, 976nm, 1064nm
Wavelength Tolerance	±10nm, ±5nm, ±3nm, ±1nm, ±0.5nm
Output Power	1~750W
Spectral Width FWHM	<5nm,<3nm
Slope Efficiency	>1W/A,>5W/A,>10W/A

Fiber

Fiber Core	50um/62.5um/105um/200um/400um/800um
Numerical Aperture	0.13NA~0.22NA
Fiber Length	0.5m~5m
Fiber Jacket Diameter	0.9mm/2mm/3mm/Metal Jacket
Fiber Connector	SMA905/FC/ST/Bare

Electrical

Working Current	1~30A
Threshold Current	0.5~5A
Working Voltage	1~40V
Power Conversion Eff	30%~60%

Optional Function: TEC, Aiming Beam, PD,Thermistor,Detachable Fiber,Multiwave.

Thermal

Working Temp	15~55℃
Storage Temp	-30-70℃
Wave Temp Coefficient	～0.3nm/℃
Lead Soldering Temp	<250℃/<10seconds

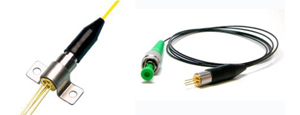

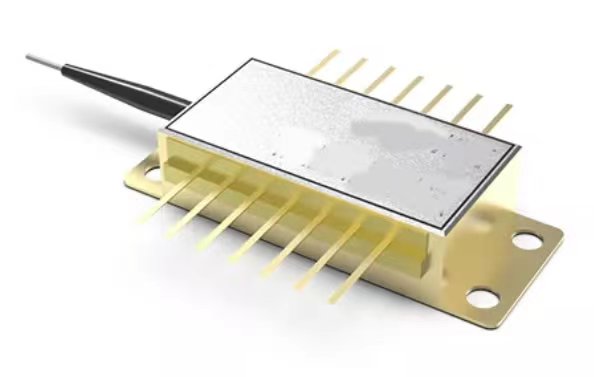

Fiber-coupled Diode Lasers with Small Core Diameter

Features:

• High power as high as 30W at fiber core diameter 50um

• Small fiber core diameter as small as 50um at 30W

• Custom made available according to your specific requirements

Applications:

• Diode pumping

• Scientific research

We are specialized in fiber coupled laser diodes with the ranges of wavelength 792nm, 808nm, 880nm, 885nm, 915nm, 940nm, 976nm and 1064nm, laser power 2 to 30W, fiber core diameter 50um and 105nm. Please contact us for more information.

List of Some typical Fiber-coupled Diodes with Fiber Core Diameter of 50um and 105um.

Part number	Wavelength (nm)	Laser power (W)	Fiber core diameter (um)
STHL-525-6-105	525	6	105
STHL-808-8-105	808	8	105
STHL-808-15-105	808	15	105
STHL-915-10-50	915	10	50
STHL-915-15-50	915	10	50
STHL-915-20-50	915	20	50
STHL-915-20-105	915	20	105
STHL-915-25-50	915	25	50
STHL-940-10-50	940	10	50
STHL-940-20-50	940	20	50
STHL-940-20-105	940	20	105
STHL-940-25-50	940	25	50
STHL-976-10-50	976	10	50
STHL-976-20-50	976	20	50
STHL-976-20-105	976	20	105
STHL-976-25-50	976	25	50
STCX-FCP-30-50-976-10	976	30	50
STK980F02RN-10.00W	980	10	50
STK980FAHRN-20.00W	980	20	50

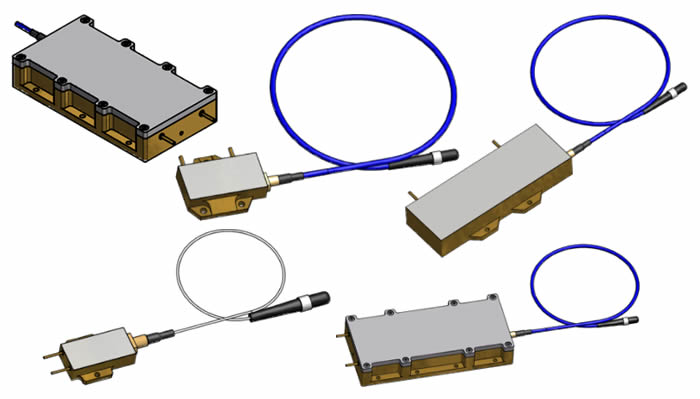

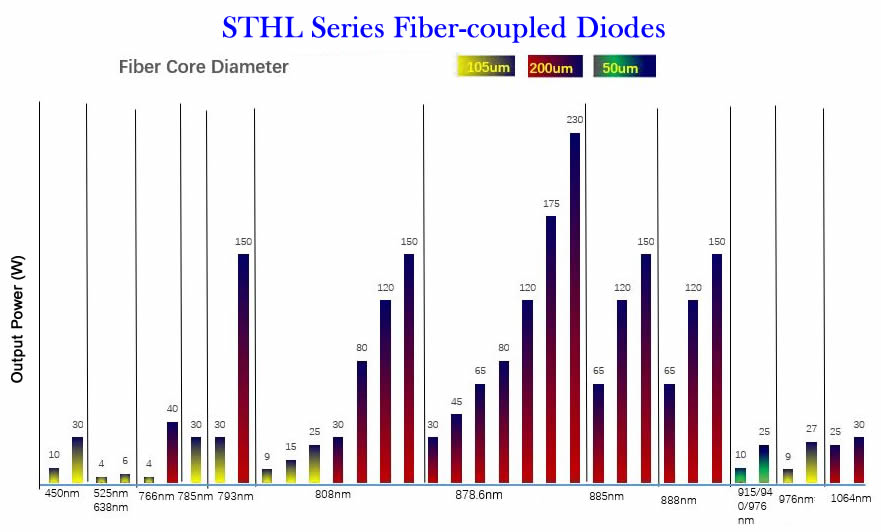

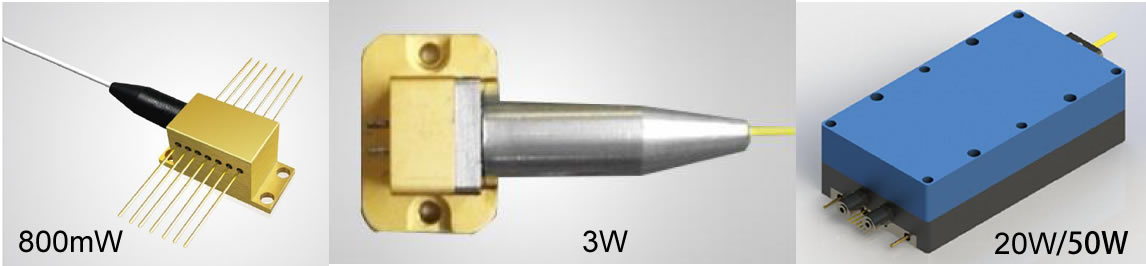

STHL Series Fiber-coupled Laser Diodes

List of STHL Series Fiber-coupled Laser Diodes

Part number	Wavelengthnm	Δλ nm	Band width	Wavelength Stabilized	Power W	Fiber core (um) /NA	Application
STHL-450-3-105	450	±5	6	No	3	105/0.22	Illumination
STHL-450-20-105	450	±5	6	No	20	105/0.22	Illumination
STHL-525-4-105	525	±5	6	No	4	105/0.22	Illumination
STHL-525-6-105	525	±5	6	No	6	105/0.22	Illumination
STHL-525-7-105	525	±5	6	No	7	105/0.22	Illumination
STHL-638-4-105	638	±5	6	No	4	105/0.22	Illumination
STHL-792-20-105	792	±3	4	No	20	105/0.22	Tm:Fiber
STHL-792-30-105	792	±3	4	No	30	105/0.22	Tm:Fiber
STHL-792-80-105	792	±3	4	No	80	105/0.22	Tm:Fiber
STHL-792-120-105	792	±3	4	No	120	105/0.22	Tm:Fiber
STHL-792-150-105	792	±3	4	No	150	105/0.22	Tm:Fiber
STHL-808-15-105	808	±3	4	No	15	105/0.22	Nd:YVO4
STHL-808-25-105	808	±3	4	No	25	105/0.22	Nd:YVO4
STHL-808-30-105	808	±3	4	No	30	105/0.22	Nd:YVO4
STHL-808-30-400	808	±2			30	400/0.22
STHL-808-80-105	808	±3	4	No	80	105/0.22	Nd:YVO4
STHL-808-100-200	808	±3	4	No	100	200/0.22	Nd:YVO4
STHL-808-120-105	808	±3	4	No	120	200/0.22	Nd:YVO4
STHL-808-150-105	808	±3	4	No	150	105/0.22	Nd:YVO4
STHL-878.6/885/888-25-200	878.6/885/888	±1	0.5	Yes	25	200/0.22	Nd:YVO4
STHL-878.6/885/888-30-200	878.6/885/888	±1	0.5	Yes	30	200/0.22	Nd:YVO4
STHL-878.6/885/888-65-200	878.6/885/888	±1	0.5	Yes	65	200/0.22	Nd:YVO4
STHL-878.6/885/888-80-200	878.6/885/888	±1	0.5	Yes	80	200/0.22	Nd:YVO4
STHL-878.6/885/888-120-200	878.6/885/888	±1	0.5	Yes	120	200/0.22	Nd:YVO4
STHL-878.6/885/888-150-200	878.6/885/888	±1	0.5	Yes	150	200/0.22	Nd:YVO4
STHL-878.6/885/888-175-200	878.6/885/888	±1	0.5	Yes	175	200/0.22	Nd:YVO4
STHL-878.6/885/888-260-200	878.6/885/888	±1	0.5	Yes	260	200/0.22	Nd:YVO4
STHL-880-30-400	880	±0.5			30	400/0.22	DSSL Pumping
STHL-880-65-400	880	±0.5			65	400/0.22	DSSL Pumping
STHL-880-80-400	880	±0.5			80	400/0.22	DSSL Pumping
STHL-880-120-400	880	±0.5			120	400/0.22	DSSL Pumping
STHL-880-175-400	880	±0.5			175	400/0.22	DSSL Pumping
STHL-915-20-50	915	±10	4	No	20	50/0.22	Yb:Fiber
STHL-940-20-50	940	±5	4	No	20	50/0.22	Yb:YAG
STHL-940-30-105	940	±5	4	No	30	105/0.22	Yb:YAG
STHL-940-80-105	940	±5	4	No	80	105/0.22	Yb:YAG
STHL-940-200-200	940	±10	4	No	200	200/0.22	Pumping
STHL-976-20-50	976	±10	4	No	20	50/0.22	Yb:Fiber
STHL-976-20-105	976	±0.5	1	Yes	20	105/0.22	Yb:Fiber
STHL-976-30-105	976	±0.5	1	Yes	30	105/0.22	Yb:Fiber
STHL-976-80-105	976	±0.5	1	Yes	80	105/0.22	Yb:Fiber
STHL-981-20-105	981	±0.5	1	Yes	20	105/0.22	Yb:Fiber
STHL-981-30-105	981	±0.5	1	Yes	30	105/0.22	Yb:Fiber
STHL-981-80-105	981	±0.5	1	Yes	80	105/0.22	Yb:Fiber
STHL-450/638/980-3/0.2/10-200	450/638/980	±5	6	No	3/0.2/10	200/0.22	Medical
STHL-808/980/1064/638-10/10/10/0.5-200-0.22	808/980/1064/638	±5	6	No	10/10/10/0.5	200/0.22	Medical
STHL-810/915/1064/635-20/20/20/0.5-200-0.22	810/915/1064/635	±5	6	No	20/20/20/0.5	200/0.22	Medical
STHL-810/980/638-15/15/0.5-200/220-0.22	810/980/638	±5	6	No	15/15/0.5	200/220/0.22	Medical
STHL-980/638-30/0.002-200-0.22	980/638	±10	6	No	30/0.002	200/0.22	Medical

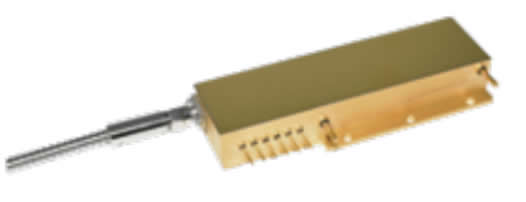

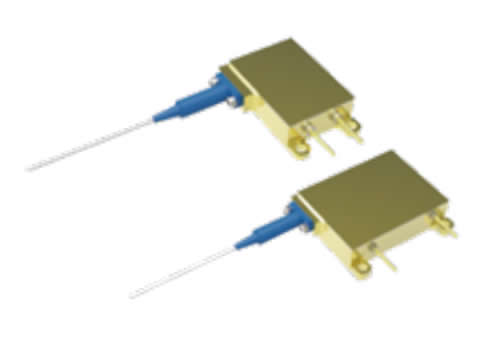

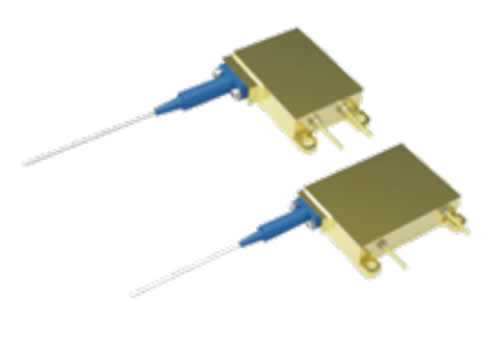

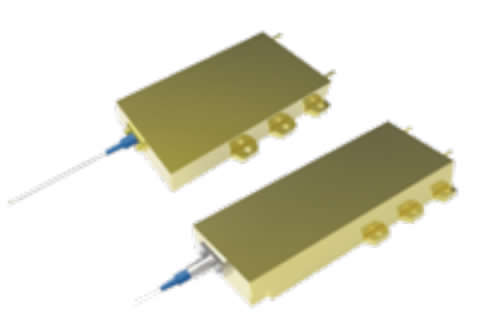

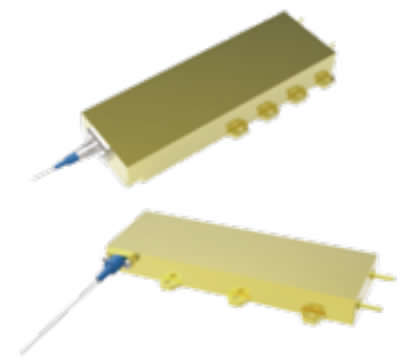

STCX Series Fiber-coupled Diode Lasers

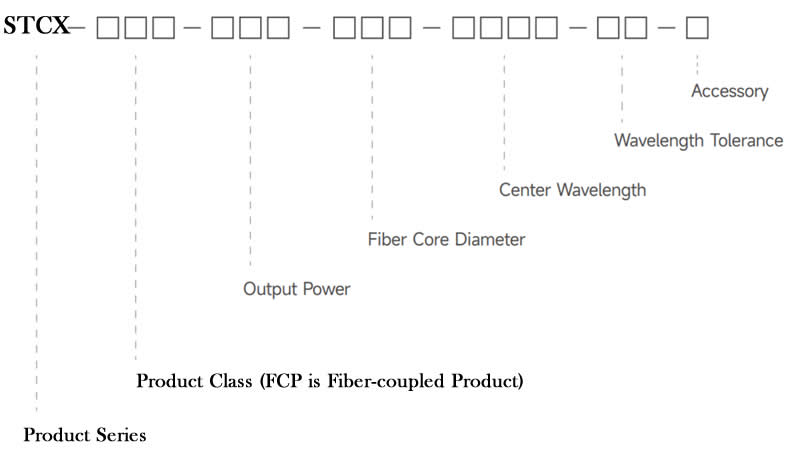

Please use the above regulations to define the part number of the products you wanted.

1. 808nm Fiber-coupled Diode Laser Modules – M Series

Part Number		STCX-FC-808-025-400-3	STCX-FC-808-030-400-3	STCX-FC-808-050-400-3	STCX-FC-808-135-400-3
Optical
Center Wavelength	nm	808	808	808	808
Wavelength Tolerance	nm	±3	±3	±3	±3
Output Power	W	25	30	50	135
Spectral Width (FWHM)	nm	2	2	2	3
Numerical Aperture	-	0.22	0.22	0.22	0.22
Fiber Core	µm	400	400	400	400
Fiber Connector	-	SMA905	SMA905	SMA905	SMA905
Fiber Length	m	1.2	1.2	1.2	1.2
Electrical
Power Conversion Efficiency	%	45	45	45	43
Threshold Current	A	2.3	2.3	2.3	2.3
Operating Current	A	10.5	10	10.5	10
Operating Voltage	V	5.7	7.5	11.5	33.2
Thermal
Operating Temperature	°C	0~25	0~25	0~25	0~25
Storage Temperature	°C	-40~60	-40~60	-40~60	-40~60
Wavelength Temp Coefficient	nm/°C	0.28	0.28	0.28	0.28
Others
Anti Reflection Wavelength Range	nm	1030~1200	1030~1200	1030~1200	1030~1200
Reflection Efficiency	dB	>30	>30	>30	>30
Soldering Temperature	°C	260(10sec)	260 (10sec)	260 (10sec)	260 (10sec)

2. 878.6nm VBG Fiber-coupled Diode Laser Modules – M Series

Part Number		STCX-FC-878-030-200/400-0.5	STCX-FC-878-065-200/400-0.5	STCX-FC-878-115-200/400-0.5	STCX-FC-878-075-200/400-0.5
Optical
Center Wavelength	nm	878.6	878.6	878.6	878.6
Wavelength Tolerance	nm	±0.5	±0.5	±0.5	±0.5
Output Power	W	30	65	115	175
Spectral Width (FWHM)	nm	0.5	0.5	0.5	0.5
Numerical Aperture	-	0.22	0.22	0.22	0.22
Fiber Core	µm	200/400	200/400	200/400	200/400
Fiber Connector	-	SMA905	SMA905	SMA905	SMA905
Fiber Length	m	1.2	1.5	1.2	1.2
Electrical
Power Conversion Efficiency	%	52	52	50	50
Threshold Current	A	1.4	1.4	1.4	1.4
Operating Current	A	13	13	13	13
Operating Voltage	V	5.1	9.7	18.8	28
Thermal
Operating Temperature	°C	0~25	0~25	0~25	0~25
Storage Temperature	°C	-40~60	-40~60	-40~60	-40~60
Wavelength Temp Coefficient	nm/°C	0.01	0.01	0.01	0.01
Others
Anti Reflection Wavelength Range	nm	1030~1200	1030~1200	1030~1200	1030~1200
Reflection Efficiency	dB	>30	>30	>30	>30
Soldering Temperature	°C	260 (10sec)	260 (10sec)	260 (10sec)	260 (10sec)

888nm Fiber-coupled Diode Laser Modules – M Series

Part Number		STCX-FC-888-065-200/400-0.5	STCX-FC-888-115-200/400-0.5	STCX-FC-888-175-200/400-0.5
Optical
Center Wavelength	nm	888	888	888
Wavelength Tolerance	nm	±0.5	±0.5	±0.5
Output Power	W	65	115	175
Spectral Width (FWHM)	nm	0.3	0.3	0.3
Numerical Aperture	-	0.22	0.22	0.22
Fiber Core	µm	200/400	200/400	200/400
Fiber Connector	-	SMA905	SMA905	SMA905
Fiber Length	m	1.2	1.2	1.2
Electrical
Power Conversion Efficiency	%	52	50	50
Threshold Current	A	1.4	1.4	1.4
Operating Current	A	14	13	14
Operating Voltage	V	9.5	20.5	30
Thermal
Operating Temperature	°C	0~25	0~25	0~25
Storage Temperature	°C	-20-80	-20-80	-20-80
Wavelength Temp Coefficient	nm/°C	0.01	0.01	0.01
Others
Anti Reflection Wavelength Range	nm	1030~1200	1030~1200	1030~1200
Reflection Efficiency	dB	>30	>30	>30
Soldering Temperature	°C	260(10sec)	260(10sec)	260(10sec)

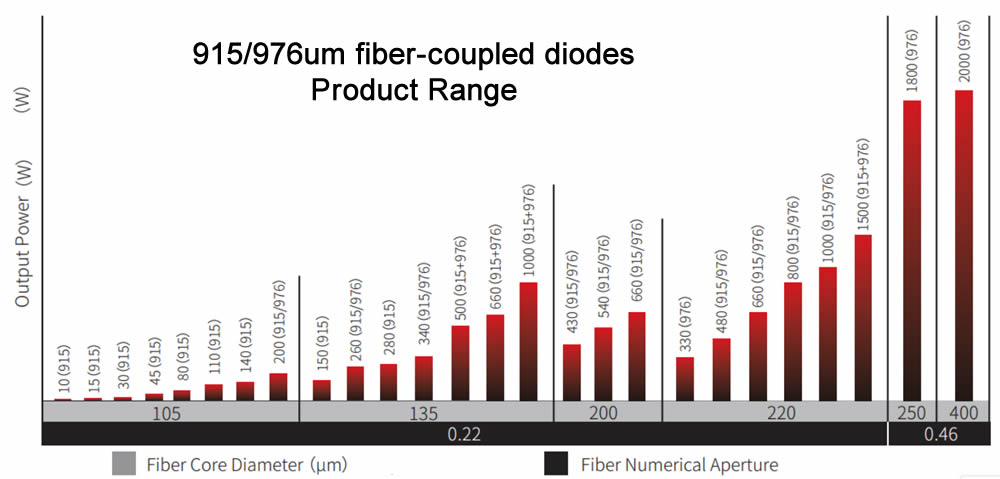

3. 915nm Fiber-coupled Diode Laser Modules – M Series

Part Number		STCX-FC-915-320-135-10	STCX-FC-915-380-200-10	STCX-FC-915-420-200-10	STCX-FC-915-500-200-10	STCX-FC-915-620-200-10
Optical
Center Wavelength	nm	915	915	915	915	915
Wavelength Tolerance	nm	±10	±10	±10	±10	±10
Output Power	W	320	380	420	500	620
Spectral Width (FWHM)	nm	4.5	5	5	5	5
Numerical Aperture	-	0.16	0.16	0.16	0.17	0.175
Fiber Core	µm	135	200	200	200	200
Fiber Connector	-	Pigtail	Pigtail	Pigtail	Pigtail	Pigtail
Fiber Length	m	2	2	2	2	2
Electrical
Power Conversion Efficiency	%	52	55	55	53	52
Threshold Current	A	1	1.2	1.2	1.2	1.2
Operating Current	A	20	25	25	25	25
Operating Voltage	V	30	31	34	40	30
Thermal
Operating Temperature	°C	0~30	0~30	0~30	0~30	0~30
Storage Temperature	°C	-40~65	-40~65	-40~65	-40~65	-40~65
Wavelength Temp Coefficient	nm/°C	0.30	0.30	0.30	0.30	0.30
Others
Anti Reflection Wavelength Range	nm	1040~1200	1040~1200	1040~1200	1040~1200	1040~1200
Reflection Efficiency	dB	30	30	30	30	30
Soldering Temperature	°C	260(10sec)	260(10sec)	260(10sec)	260(10sec)	260(10sec)

4. 976nm Fiber-coupled Diode Laser Modules – M Series

Part Number		STCX-FC-976-065-105-3	STCX-FC-976-250-135-3	STCX-FC-976-320-200-3	STCX-FC-976-360-200-3
Optical
Center Wavelength	nm	976	976	976	976
Wavelength Tolerance	nm	±3	±3	±3	±3
Output Power	W	65	250	320	360
Spectral Width (FWHM)	nm	4.5	4.5	4.5	4.5
Numerical Aperture	-	0.15	0.16	0.15	0.16
Fiber Core	µm	105	135	200	200
Fiber Connector	-	pigtail	pigtail	pigtail	pigtail
Fiber Length	m	2	2	2	2
Electrical
Power Conversion Efficiency	%	53	52	52	53
Threshold Current	A	0.8	1	1.2	1.2
Operating Current	A	14	18	29	25
Operating Voltage	V	9	27.5	22	27.5
Thermal
Operating Temperature	°C	0~30	0~30	0~30	0~30
Storage Temperature	°C	-40~60	-40~60	-40~60	-40~60
Wavelength Temp Coefficient	nm/°C	0.33	0.33	0.33	0.33
Others
Anti Reflection Wavelength Range	nm	1040~1200	1040~1200	1040~1200	1040~1200
Reflection Efficiency	dB	30	30	30	30
Soldering Temperature	°C	260(10sec)	260(10sec)	260(10sec)	260(10sec)

Part Number		STCX-FC-976-420-200-3	STCX-FC-976-520-200-3	STCX-FC-976-540-200-3	STCX-FC-976-640-200-3
Optical
Center Wavelength	nm	976	976	976	976
Wavelength Tolerance	nm	±3	±3	±3	±3
Output Power	W	420	520	540	640
Spectral Width (FWHM)	nm	4.5	4.5	4.5	4.5
Numerical Aperture	-	0.16	0.17	0.17	0.18
Fiber Core	µm	200	200	200	200
Fiber Connector	-	pigtail	pigtail	pigtail	pigtail
Fiber Length	m	2	2	2	2
Electrical
Power Conversion Efficiency	%	52	53	53	50
Threshold Current	A	1.2	1.2	1.2	1.2
Operating Current	A	26	30	25	29
Operating Voltage	V	32	34	42	48
Thermal
Operating Temperature	°C	0~30	0~30	0~30	0~30
Storage Temperature	°C	-40~60	-40~60	-40~60	-40~60
Wavelength Temp Coefficient	nm/°C	0.33	0.33	0.33	0.33
Others
Anti Reflection Wavelength Range	nm	1040~1200	1040~1200	1040~1200	1040~1200
Reflection Efficiency	dB	30	30	30	30
Soldering Temperature	°C	260(10sec)	260(10sec)	260(10sec)	260(10sec)

5. 976nm VBG Fiber-coupled Diode Laser Modules – MV Series

Part Number		STCX-FC-976-060-105-0.5	STCX-FC-976-130-105-0.5	STCX-FC-976-230-135-0.5	STCX-FC-976-250-135-0.5
Optical
Center Wavelength	nm	976	976	976	976
Wavelength Tolerance	nm	±0.5	±0.5	±0.5	±0.5
Output Power	W	60	130	230	250
Spectral Width (FWHM)	nm	0.5	0.5	0.5	0.5
Numerical Aperture	-	0.15	0.15	0.16	0.17
Fiber Core	µm	105	105	135	135
Fiber Connector	-	pigtail	pigtail	pigtail	pigtail
Fiber Length	m	2	2	2	2
Electrical
Power Conversion Efficiency	%	51	51	48	53
Threshold Current	A	0.6	0.6	1.2	0.6
Operating Current	A	14	14	18	16
Operating Voltage	V	9	20.5	27	30.5
Thermal
Operating Temperature	°C	10~30	10~30	10~30	10~30
Storage Temperature	°C	-40~65	-40~65	-40~65	-40~65
Wavelength Temp Coefficient	nm/°C	0.02	0.02	0.02	0.02
Others
Anti Reflection Wavelength Range	nm	1040~1200	1040~1200	1040~1200	1040~1200
Reflection Efficiency	dB	30	30	30	30
Soldering Temperature	°C	260(10sec)	260(10sec)	260(10sec)	260(10sec)

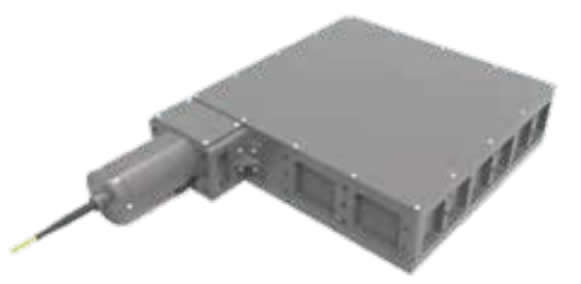

6. 976nm Fiber-coupled Diode Laser Modules – F Series

Optical
Center Wavelength	nm	976	976	976
Wavelength Tolerance	nm	±0.5	±0.5	±3
Output Power	W	500	600	700
Spectral Width (FWHM)	nm	4.5	0.5	4.5
Numerical Aperture	-	0.16	0.16	0.18
Fiber Core	µm	200	200	200
Fiber Connector	-	SMAQ/pigtail	SMAQ/pigtail	SMAQ/pigtail
Fiber Length	m	2	2	2
Electrical
Power Conversion Efficiency	%	52	42	48
Threshold Current	A	0.5	0.5	0.5
Operating Current	A	10	10	10
Operating Voltage	V	32	150	150
Thermal
Operating Temperature	℃	0~35	15~35	0~35
Storage Temperature	℃	-40~60	-40~60	-40~60
Wavelength Temp Coefficient	nm / ℃	0.3	0.02	0.3
Others
Anti Reflection Wavelength Range	nm	1030~1200	1030~1200	1030~1200
Anti-reflection Efficiency	dB	>30	>30	>30

7. 915/976nm Direct Diode Fiber-coupled Modules – M Series

Part Number		STCX-FC-915/976-100-200/400-20	STCX-FC-915/976-160-200/400-20	STCX-FC-915/976-200-200/400-20
Optical
Center Wavelength	nm	915/976	915/976	915/976
Wavelength Tolerance	nm	±20	±20	±20
Output Power	W	100	160	200
Numerical Aperture	-	<0.2	<0.2	<0.2
Fiber Core	µm	200/400	200/400	200/400
Fiber Connector		SMA905	SMA905	SMA905
Fiber Protective Sleeve		5mm Armour	5mm Armour	5mm Armour
Fiber Length	m	5±0.1	5±0.1	5±0.1
Fiber Winding Diameter	mm	150	150	150
Electrical
Power Conversion Efficiency	%	55	55	55
Threshold Current	A	1	1	1
Operating Current	A	<14	<16	<20
Operating Voltage/bar	V	<15	<20	<22
Thermal
Operating Temperature	°C	0-40	0-40	0-40
Storage Temperature	°C	-20-80	-20-80	-20-80
Wavelength Temp Coefficient	nm/°C	0.32	0.32	0.32
Others
Red Pointer Wavelength	nm	650	650	650
Input Current of Red Pointer	mA	20	20	20
Red   Pointer Power	mW	>1	>1	>1
Thermistor Type	-	NTC 10KΩ	NTC 10KΩ	NTC 10KΩ
Soldering Temperature	°C	260 (10sec)	260 (10sec)	260 (10sec)
Reflection Laser Signal	-	Optional	Optional	Optional

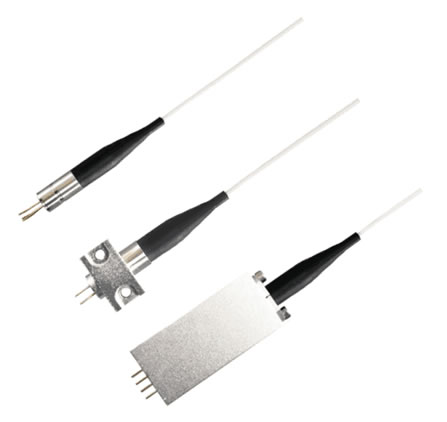

STW Series Fiber-coupled Laser Diodes

1. Single Mode Fiber Coupled Laser Diodes

Features:

• 405nm~1650nm

• SM and PM Fiber

• 1mW~100mW Output Power

• PER upto 20dB

• Built-in TE Cooler Optional

• Built-in Photodiode Optional

• Long Lifetime

• High Stability

• Customized Wavelength

• Customized Output Power

We offer High Coupling Efficient Solution for 405nm~1650nm Pigtailed Laser Module with Single Mode Fiber and Polarization Maintaining Fiber and the output power can be up to 100mW. We adopt unique technique to get high Polarization Extinction Ratio (PER), which is up to 20dB with Low Noise Laser Output.

With SM and PM Fiber, it can get the Gauss Beam which is the Single Transverse Mode Beam, the M2 value is less 1.3. Meanwhile, and the TE Cooler and Photodiode is optional for customers. We can  integrate them into the Laser Module according to customer's requirement. We also offer the Customized Solution for Pigtailed Laser Modules, such as Customized Wavelength and Customized Power to meet the special needs of customers.

We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser diode will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser diode. We set the storage temperature range from -40 degree C to +85 degree C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.

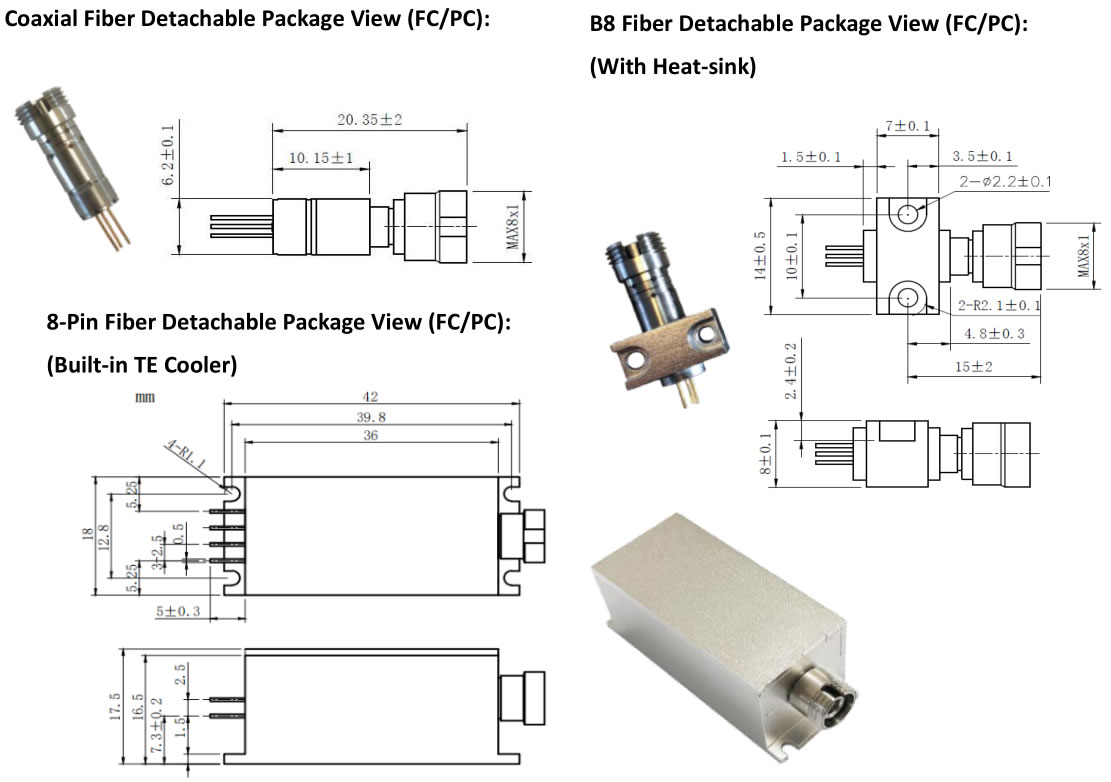

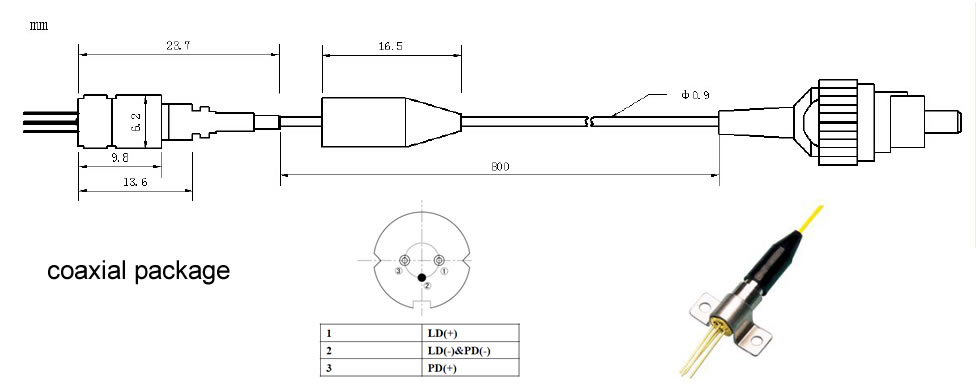

Part   Number	Wavelength	Output   Power	Fiber   Core	Package	Other   Specification
STW-LP-400-015m-4-PD	400nm	15mW	3um	Coaxial	Single   Mode Fiber
STW-LX-400-015m-4-H8-T-PD	400nm	15mW	3um	8-Pin	Single   Mode Fiber
STW-LP-400-030m-4-PD	400nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-400-030m-4-H8-T-PD	400nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-400-015m-PM-PD	400nm	15mW	3um	Coaxial	PM   Fiber
STW-LX-400-015m-PM-H8-T-PD	400nm	15mW	3um	8-Pin	PM   Fiber
STW-LP-400-030m-PM-PD	400nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-400-030m-PM-H8-T-PD	400nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-405-001m-4-PD	405nm	1mW	3um	Coaxial	Single   Mode Fiber
STW-LP-405-015m-4-PD	405nm	15mW	3um	Coaxial	Single   Mode Fiber
STW-LX-405-015m-4-H8-T-PD	405nm	15mW	3um	8-Pin	Single   Mode Fiber
STW-LP-405-030m-4-PD	405nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-405-030m-4-H8-T-PD	405nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-405-040m-4-PD	405nm	40mW	3um	Coaxial	Single   Mode Fiber
STW-LX-405-040m-4-H8-T-PD	405nm	40mW	3um	8-Pin	Single   Mode Fiber
STW-LP-405-050m-4-PD	405nm	50mW	3um	Coaxial	Single   Mode Fiber
STW-LX-405-050m-4-H8-T-PD	405nm	50mW	3um	8-Pin	Single   Mode Fiber
STW-LP-405-015m-PM-PD	405nm	15mW	3um	Coaxial	PM   Fiber
STW-LX-405-015m-PM-H8-T-PD	405nm	15mW	3um	8-Pin	PM   Fiber
STW-LP-405-030m-PM-PD	405nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-405-030m-PM-H8-T-PD	405nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-405-040m-PM-PD	405nm	40mW	3um	Coaxial	PM   Fiber
STW-LX-405-040m-PM-H8-T-PD	405nm	40mW	3um	8-Pin	PM   Fiber
STW-LP-405-050m-PM-PD	405nm	50mW	3um	Coaxial	PM   Fiber
STW-LX-405-050m-PM-H8-T-PD	405nm	50mW	3um	8-Pin	PM   Fiber
STW-LP-445-015m-4	445nm	15mW	3um	Coaxial	Single   Mode Fiber
STW-LX-445-015m-4-H8-T	445nm	15mW	3um	8-Pin	Single   Mode Fiber
STW-LX-445-015m-4-H8-T-PD	445nm	15mW	3um	8-Pin	Single   Mode Fiber
STW-LP-445-030m-4	445nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-445-030m-4-H8-T	445nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LX-445-030m-4-H8-T-PD	445nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-445-040m-4	445nm	40mW	3um	Coaxial	Single   Mode Fiber
STW-LX-445-040m-4-H8-T	445nm	40mW	3um	8-Pin	Single   Mode Fiber
STW-LP-445-050m-4	445nm	50mW	3um	Coaxial	Single   Mode Fiber
STW-LX-445-050m-4-H8-T	445nm	50mW	3um	8-Pin	Single   Mode Fiber
STW-LP-445-070m-4	445nm	70mW	3um	Coaxial	Single   Mode Fiber
STW-LX-445-070m-4-H8-T	445nm	70mW	3um	8-Pin	Single   Mode Fiber
STW-LX-445-015m-PM-H8-T-PD	445nm	15mW	3um	8-Pin	PM   Fiber
STW-LP-445-030m-PM	445nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-445-030m-PM-H8-T	445nm	30mW	3um	8-Pin	PM   Fiber
STW-LX-445-030m-PM-H8-T-PD	445nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-445-050m-PM	445nm	50mW	3um	Coaxial	PM   Fiber
STW-LX-445-050m-PM-H8-T	445nm	50mW	3um	8-Pin	PM   Fiber
STW-LP-445-050m-9	445nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LX-445-050m-9-H8-T	445nm	50mW	9um	8-Pin	Single   Mode Fiber
STW-LP-445-080m-9	445nm	80mW	9um	Coaxial	Single   Mode Fiber
STW-LX-445-080m-9-H8-T	445nm	80mW	9um	8-Pin	Single   Mode Fiber
STW-LP-445-100m-9	445nm	100mW	9um	Coaxial	Single   Mode Fiber
STW-LX-445-100m-9-H8-T	445nm	100mW	9um	8-Pin	Single   Mode Fiber
STW-LP-460-030m-4	460nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-460-030m-4-H8-T	460nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-460-050m-4	460nm	50mW	3um	Coaxial	Single   Mode Fiber
STW-LX-460-050m-4-H8-T	460nm	50mW	3um	8-Pin	Single   Mode Fiber
STW-LP-460-030m-PM	460nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-460-030m-PM-H8-T	460nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-460-050m-PM	460nm	50mW	3um	Coaxial	PM   Fiber
STW-LX-460-050m-PM-H8-T	460nm	50mW	3um	8-Pin	PM   Fiber
STW-LP-460-080m-9	460nm	80mW	9um	Coaxial	Single   Mode Fiber
STW-LX-460-080m-9-H8-T	460nm	80mW	9um	8-Pin	Single   Mode Fiber
STW-LP-473-010m-4	473nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-473-010m-4-H8-T	473nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-473-020m-4	473nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-473-020m-4-H8-T	473nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-473-010m-PM	473nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-473-010m-PM-H8-T	473nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-473-020m-PM	473nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-473-020m-PM-H8-T	473nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-480-010m-4	480nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-480-010m-4-H8-T	480nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-480-020m-4	480nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-480-020m-4-H8-T	480nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-480-010m-PM	480nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-480-010m-PM-H8-T	480nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-480-020m-PM	480nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-480-020m-PM-H8-T	480nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-488-010m-4	480nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-488-010m-4-H8-T	488nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LX-488-010m-4-H8-T-PD	488nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-488-020m-4	488nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-488-020m-4-H8-T	488nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LX-488-020m-4-H8-T-PD	488nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-488-030m-4	488nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-488-030m-4-H8-T	488nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-488-010m-PM	488nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-488-010m-PM-H8-T	488nm	10mW	3um	8-Pin	PM   Fiber
STW-LX-488-010m-PM-H8-T-PD	488nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-488-020m-PM	488nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-488-020m-PM-H8-T	488nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-488-030m-PM	488nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-488-030m-PM-H8-T	488nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-488-020m-9	488nm	20mW	9um	Coaxial	Single   Mode Fiber
STW-LX-488-020m-9-H8-T	488nm	20mW	9um	8-Pin	Single   Mode Fiber
STW-LP-495-010m-4	495nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-495-010m-4-H8-T	495nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-495-020m-4	495nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-495-020m-4-H8-T	495nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-495-010m-PM	495nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-495-010m-PM-H8-T	495nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-495-020m-PM	495nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-495-020m-PM-H8-T	495nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-495-020m-9	495nm	20mW	9um	Coaxial	Single   Mode Fiber
STW-LX-495-020m-9-H8-T	495nm	20mW	9um	8-Pin	Single   Mode Fiber
STW-LP-505-010m-4	505nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-505-010m-4-H8-T	505nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-505-020m-4	505nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-505-020m-4-H8-T	505nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-505-010m-PM	505nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-505-010m-PM-H8-T	505nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-505-020m-PM	505nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-505-020m-PM-H8-T	505nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-505-020m-9	505nm	20mW	9um	Coaxial	Single   Mode Fiber
STW-LX-505-020m-9-H8-T	505nm	20mW	9um	8-Pin	Single   Mode Fiber
STW-LP-510-010m-4	510nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-510-010m-4-H8-T	510nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-510-020m-4	510nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-510-020m-4-H8-T	510nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-510-010m-PM	510nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-510-010m-PM-H8-T	510nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-510-020m-PM	510nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-510-020m-PM-H8-T	510nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-520-002m-4-PD	520nm	2mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-002m-4-H8-T-PD	520nm	2mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-005m-4-PD	520nm	5mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-005m-4-H8-T-PD	520nm	5mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-010m-4-PD	520nm	10mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-010m-4-H8-T-PD	520nm	10mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-020m-4-PD	520nm	20mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-020m-4-H8-T-PD	520nm	20mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-030m-4	520nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-030m-4-H8-T	520nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-030m-4-PD	520nm	30mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-030m-4-H8-T-PD	520nm	30mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-040m-4	520nm	40mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-040m-4-H8-T	520nm	40mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-050m-4	520nm	50mW	3um	Coaxial	Single   Mode Fiber
STW-LX-520-050m-4-H8-T	520nm	50mW	3um	8-Pin	Single   Mode Fiber
STW-LP-520-010m-PM-PD	520nm	10mW	3um	Coaxial	PM   Fiber
STW-LX-520-010m-PM-H8-T-PD	520nm	10mW	3um	8-Pin	PM   Fiber
STW-LP-520-020m-PM-PD	520nm	20mW	3um	Coaxial	PM   Fiber
STW-LX-520-020m-PM-H8-T-PD	520nm	20mW	3um	8-Pin	PM   Fiber
STW-LP-520-030m-PM	520nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-520-030m-PM-H8-T	520nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-520-030m-PM-PD	520nm	30mW	3um	Coaxial	PM   Fiber
STW-LX-520-030m-PM-H8-T-PD	520nm	30mW	3um	8-Pin	PM   Fiber
STW-LP-520-040m-PM	520nm	40mW	3um	Coaxial	PM   Fiber
STW-LX-520-040m-PM-H8-T	520nm	40mW	3um	8-Pin	PM   Fiber
STW-LP-520-050m-PM	520nm	50mW	3um	Coaxial	PM   Fiber
STW-LX-520-050m-PM-H8-T	520nm	50mW	3um	8-Pin	PM   Fiber
STW-LP-520-030m-9-PD	520nm	30mW	9um	Coaxial	Single   Mode Fiber
STW-LX-520-030m-9-H8-T-PD	520nm	30mW	9um	8-Pin	Single   Mode Fiber
STW-LP-520-050m-9	520nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LX-520-050m-9-H8-T	520nm	50mW	9um	8-Pin	Single   Mode Fiber
STW-LP-520-080m-9	520nm	80mW	9um	Coaxial	Single   Mode Fiber
STW-LX-520-080m-9-H8-T	520nm	80mW	9um	8-Pin	Single   Mode Fiber
STW-LP-633-030m-4	633nm	30mW	4um	Coaxial	Single   Mode Fiber
STW-LX-633-030m-4-H8-T	633nm	30mW	4um	8-Pin	Single   Mode Fiber
STW-LP-633-050m-4	633nm	50mW	4um	Coaxial	Single   Mode Fiber
STW-LX-633-050m-4-H8-T	633nm	50mW	4um	8-Pin	Single   Mode Fiber
STW-LP-633-030m-PM	633nm	30mW	4um	Coaxial	PM   Fiber
STW-LX-633-030m-PM-H8-T	633nm	30mW	4um	8-Pin	PM   Fiber
STW-LP-633-050m-PM	633nm	50mW	4um	Coaxial	PM   Fiber
STW-LX-633-050m-PM-H8-T	633nm	50mW	4um	8-Pin	PM   Fiber
STW-LP-635-001m-4-PD	635nm	1mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-001m-4-H8-T-PD	635nm	1mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-003m-4-PD	635nm	3mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-003m-4-H8-T-PD	635nm	3mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-005m-4-PD	635nm	5mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-005m-4-H8-T-PD	635nm	5mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-010m-4-PD	635nm	10mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-010m-4-H8-T-PD	635nm	10mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-030m-4-PD	635nm	30mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-030m-4-H8-T-PD	635nm	30mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-050m-4-PD	635nm	50mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-050m-4-H8-T-PD	635nm	50mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-080m-4-PD	635nm	80mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-080m-4-H8-T-PD	635nm	80mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-100m-4-PD	635nm	100mW	4um	Coaxial	Single   Mode Fiber
STW-LX-635-100m-4-H8-T-PD	635nm	100mW	4um	8-Pin	Single   Mode Fiber
STW-LP-635-010m-PM-PD	635nm	10mW	4um	Coaxial	PM   Fiber
STW-LX-635-010m-PM-H8-T-PD	635nm	10mW	4um	8-Pin	PM   Fiber
STW-LP-635-030m-PM-PD	635nm	30mW	4um	Coaxial	PM   Fiber
STW-LX-635-030m-PM-H8-T-PD	635nm	30mW	4um	8-Pin	PM   Fiber
STW-LP-635-050m-PM-PD	635nm	50mW	4um	Coaxial	PM   Fiber
STW-LX-635-050m-PM-H8-T-PD	635nm	50mW	4um	8-Pin	PM   Fiber
STW-LP-635-080m-PM-PD	635nm	80mW	4um	Coaxial	PM   Fiber
STW-LX-635-080m-PM-H8-T-PD	635nm	80mW	4um	8-Pin	PM   Fiber
STW-LP-635-100m-PM-PD	635nm	100mW	4um	Coaxial	PM   Fiber
STW-LX-635-100m-PM-H8-T-PD	635nm	100mW	4um	8-Pin	PM   Fiber
STW-LP-635-010m-9-PD	635nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LP-635-050m-9	635nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-635-080m-9	635nm	80mW	9um	Coaxial	Single   Mode Fiber
STW-LP-635-100m-9	635nm	100mW	9um	Coaxial	Single   Mode Fiber
STW-LP-660-003m-4-PD	660nm	3mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-003m-4-H8-T-PD	660nm	3mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-005m-4-PD	660nm	5mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-005m-4-H8-T-PD	660nm	5mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-010m-4-PD	660nm	10mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-010m-4-H8-T-PD	660nm	10mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-020m-4	660nm	20mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-020m-4-H8-T	660nm	20mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-030m-4-PD	660nm	30mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-030m-4-H8-T-PD	660nm	30mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-050m-4	660nm	50mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-050m-4-H8-T	660nm	50mW	4um	8-Pin	Single   Mode Fiber
STW-LX-660-050m-4-H8-T-PD	660nm	50mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-080m-4	660nm	80mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-080m-4-H8-T	660nm	80mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-100m-4	660nm	100mW	4um	Coaxial	Single   Mode Fiber
STW-LX-660-100m-4-H8-T	660nm	100mW	4um	8-Pin	Single   Mode Fiber
STW-LP-660-010m-PM-PD	660nm	10mW	4um	Coaxial	PM   Fiber
STW-LX-660-010m-PM-H8-T-PD	660nm	10mW	4um	8-Pin	PM   Fiber
STW-LP-660-030m-PM-PD	660nm	30mW	4um	Coaxial	PM   Fiber
STW-LX-660-030m-PM-H8-T-PD	660nm	30mW	4um	8-Pin	PM   Fiber
STW-LP-660-050m-PM	660nm	50mW	4um	Coaxial	PM   Fiber
STW-LX-660-050m-PM-H8-T	660nm	50mW	4um	8-Pin	PM   Fiber
STW-LX-660-050m-PM-H8-T-PD	660nm	50mW	4um	8-Pin	PM   Fiber
STW-LP-660-080m-PM	660nm	80mW	4um	Coaxial	PM   Fiber
STW-LX-660-080m-PM-H8-T	660nm	80mW	4um	8-Pin	PM   Fiber
STW-LP-660-100m-PM	660nm	100mW	4um	Coaxial	PM   Fiber
STW-LX-660-100m-PM-H8-T	660nm	100mW	4um	8-Pin	PM   Fiber
STW-LP-660-020m-9	660nm	20mW	9um	Coaxial	Single   Mode Fiber
STW-LP-660-040m-9	660nm	40mW	9um	Coaxial	Single   Mode Fiber
STW-LP-660-050m-9	660nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-660-080m-9	660nm	80mW	9um	Coaxial	Single   Mode Fiber
STW-LP-660-100m-9	660nm	100mW	9um	Coaxial	Single   Mode Fiber
STW-LP-670-003m-4-PD	670nm	3mW	4um	Coaxial	Single   Mode Fiber
STW-LX-670-003m-4-H8-T-PD	670nm	3mW	4um	8-Pin	Single   Mode Fiber
STW-LP-670-005m-4-PD	670nm	5mW	4um	Coaxial	Single   Mode Fiber
STW-LX-670-005m-4-H8-T-PD	670nm	5mW	4um	8-Pin	Single   Mode Fiber
STW-LP-670-050m-4	670nm	50mW	4um	Coaxial	Single   Mode Fiber
STW-LX-670-050m-4-H8-T	670nm	50mW	4um	8-Pin	Single   Mode Fiber
STW-LP-670-003m-PM-PD	670nm	3mW	4um	Coaxial	PM   Fiber
STW-LX-670-003m-PM-H8-T-PD	670nm	3mW	4um	8-Pin	PM   Fiber
STW-LP-670-005m-PM-PD	670nm	5mW	4um	Coaxial	PM   Fiber
STW-LX-670-005m-PM-H8-T-PD	670nm	5mW	4um	8-Pin	PM   Fiber
STW-LP-670-050m-PM	670nm	50mW	4um	Coaxial	PM   Fiber
STW-LX-670-050m-PM-H8-T	670nm	50mW	4um	8-Pin	PM   Fiber
STW-LP-670-005m-9-PD	670nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-685-010m-4-PD	685nm	10mW	4um	Coaxial	Single   Mode Fiber
STW-LX-685-010m-4-H8-T-PD	685nm	10mW	4um	8-Pin	Single   Mode Fiber
STW-LP-685-015m-4-PD	685nm	15mW	4um	Coaxial	Single   Mode Fiber
STW-LX-685-015m-4-H8-T-PD	685nm	15mW	4um	8-Pin	Single   Mode Fiber
STW-LP-685-020m-4-PD	685nm	20mW	4um	Coaxial	Single   Mode Fiber
STW-LX-685-020m-4-H8-T-PD	685nm	20mW	4um	8-Pin	Single   Mode Fiber
STW-LP-685-010m-PM-PD	685nm	10mW	4um	Coaxial	PM   Fiber
STW-LX-685-010m-PM-H8-T-PD	685nm	10mW	4um	8-Pin	PM   Fiber
STW-LP-685-015m-PM-PD	685nm	15mW	4um	Coaxial	PM   Fiber
STW-LX-685-015m-PM-H8-T-PD	685nm	15mW	4um	8-Pin	PM   Fiber
STW-LP-685-015m-9-PD	685nm	15mW	9um	Coaxial	Single   Mode Fiber
STW-LP-705-010m-4-PD	705nm	10mW	4um	Coaxial	Single   Mode Fiber
STW-LX-705-010m-4-H8-T-PD	705nm	10mW	4um	8-Pin	Single   Mode Fiber
STW-LP-705-015m-4-PD	705nm	15mW	4um	Coaxial	Single   Mode Fiber
STW-LX-705-015m-4-H8-T-PD	705nm	15mW	4um	8-Pin	Single   Mode Fiber
STW-LP-705-010m-PM-PD	705nm	10mW	4um	Coaxial	PM   Fiber
STW-LX-705-010m-PM-H8-T-PD	705nm	10mW	4um	8-Pin	PM   Fiber
STW-LP-705-015m-PM-PD	705nm	15mW	4um	Coaxial	PM   Fiber
STW-LX-705-015m-PM-H8-T-PD	705nm	15mW	4um	8-Pin	PM   Fiber
STW-LP-730-010m-4-PD	730nm	10mW	4um	Coaxial	Single   Mode Fiber
STW-LX-730-010m-4-H8-T-PD	730nm	10mW	4um	8-Pin	Single   Mode Fiber
STW-LP-730-015m-4-PD	730nm	15mW	4um	Coaxial	Single   Mode Fiber
STW-LX-730-015m-4-H8-T-PD	730nm	15mW	4um	8-Pin	Single   Mode Fiber
STW-LP-730-010m-PM-PD	730nm	10mW	4um	Coaxial	PM   Fiber
STW-LX-730-010m-PM-H8-T-PD	730nm	10mW	4um	8-Pin	PM   Fiber
STW-LP-730-015m-PM-PD	730nm	15mW	4um	Coaxial	PM   Fiber
STW-LX-730-015m-PM-H8-T-PD	730nm	15mW	4um	8-Pin	PM   Fiber
STW-LP-785-005m-4-PD	785nm	5mw	5um	Coaxial	Single   Mode Fiber
STW-LX-785-005m-4-H8-T-PD	785nm	5mW	5um	8-Pin	Single   Mode Fiber
STW-LP-785-030m-4-PD	785nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-785-030m-4-H8-T-PD	785nm	30mW	5um	8-Pin	Single   Mode Fiber
STW-LP-785-040m-4-PD	785nm	40mW	5um	Coaxial	Single   Mode Fiber
STW-LX-785-040m-4-H8-T-PD	785nm	40mW	5um	8-Pin	Single   Mode Fiber
STW-LP-785-050m-4-PD	785nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-785-050m-4-H8-T-PD	785nm	50mW	5um	8-Pin	Single   Mode Fiber
STW-LP-785-020m-PM-PD	785nm	20mW	5um	Coaxial	PM   Fiber
STW-LX-785-020m-PM-H8-T-PD	785nm	20mW	5um	8-Pin	PM   Fiber
STW-LP-785-030m-PM-PD	785nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-785-030m-PM-H8-T-PD	785nm	30mW	5um	8-Pin	PM   Fiber
STW-LP-785-040m-PM-PD	785nm	40mW	5um	Coaxial	PM   Fiber
STW-LX-785-040m-PM-H8-T-PD	785nm	40mW	5um	8-Pin	PM   Fiber
STW-LP-785-030m-9-PD	785nm	30mW	9um	Coaxial	Single   Mode Fiber
STW-LP-808-020m-4-PD	808nm	20mW	5um	Coaxial	Single   Mode Fiber
STW-LX-808-020m-4-H-T-PD	808nm	20mW	5um	HHL-01	Single   Mode Fiber
STW-LP-808-030m-4-PD	808nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-808-030m-4-H-T-PD	808nm	30mW	5um	HHL-01	Single   Mode Fiber
STW-LP-808-040m-4-PD	808nm	40mW	5um	Coaxial	Single   Mode Fiber
STW-LX-808-040m-4-H-T-PD	808nm	40mW	5um	HHL-01	Single   Mode Fiber
STW-LP-808-050m-4-PD	808nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-808-050m-4-H-T-PD	808nm	50mW	5um	HHL-01	Single   Mode Fiber
STW-LP-808-015m-PM-PD	808nm	15mW	5um	Coaxial	PM   Fiber
STW-LX-808-015m-PM-H-T-PD	808nm	15mW	5um	HHL-01	PM   Fiber
STW-LP-808-030m-PM-PD	808nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-808-030m-PM-H-T-PD	808nm	30mW	5um	HHL-01	PM   Fiber
STW-LP-808-040m-PM-PD	808nm	40mW	5um	Coaxial	PM   Fiber
STW-LX-808-040m-PM-H-T-PD	808nm	40mW	5um	HHL-01	PM   Fiber
STW-LP-820-030m-4-PD	820nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-820-030m-4-H8-T-PD	820nm	30mW	5um	8-Pin	Single   Mode Fiber
STW-LP-820-050m-4-PD	820nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-820-050m-4-H8-T-PD	820nm	50mW	5um	8-Pin	Single   Mode Fiber
STW-LP-820-030m-PM-PD	820nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-820-030m-PM-H8-T-PD	820nm	30mW	5um	8-Pin	PM   Fiber
STW-LP-820-050m-PM-PD	820nm	50mW	5um	Coaxial	PM   Fiber
STW-LX-820-050m-PM-H8-T-PD	820nm	50mW	5um	8-Pin	PM   Fiber
STW-LP-830-005m-4-PD	830nm	5mW	5um	Coaxial	Single   Mode Fiber
STW-LX-830-005m-4-H8-T-PD	830nm	5mW	5um	8-Pin	Single   Mode Fiber
STW-LP-830-030m-4-PD	830nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-830-030m-4-H8-T-PD	830nm	30mW	5um	8-Pin	Single   Mode Fiber
STW-LP-830-050m-4-PD	830nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-830-050m-4-H8-T-PD	830nm	50mW	5um	8-Pin	Single   Mode Fiber
STW-LP-830-080m-4-PD	830nm	80mW	5um	Coaxial	Single   Mode Fiber
STW-LX-830-080m-4-H8-T-PD	830nm	80mW	5um	8-Pin	Single   Mode Fiber
STW-LP-830-100m-4-PD	830nm	100mW	5um	Coaxial	Single   Mode Fiber
STW-LX-830-100m-4-H8-T-PD	830nm	100mW	5um	8-Pin	Single   Mode Fiber
STW-LP-830-030m-PM-PD	830nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-830-030m-PM-H8-T-PD	830nm	30mW	5um	8-Pin	PM   Fiber
STW-LP-830-050m-PM-PD	830nm	50mW	5um	Coaxial	PM   Fiber
STW-LX-830-050m-PM-H8-T-PD	830nm	50mW	5um	8-Pin	PM   Fiber
STW-LP-830-080m-PM-PD	830nm	80mW	5um	Coaxial	PM   Fiber
STW-LX-830-080m-PM-H8-T-PD	830nm	80mW	5um	8-Pin	PM   Fiber
STW-LP-830-100m-PM-PD	830nm	100mW	5um	Coaxial	PM   Fiber
STW-LX-830-100m-PM-H8-T-PD	830nm	100mW	5um	8-Pin	PM   Fiber
STW-LP-830-050m-9-PD	830nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-830-100m-9-PD	830nm	100mW	9um	Coaxial	Single   Mode Fiber
STW-LP-850-002m-4-PD	850nm	2mW	5um	Coaxial	Single   Mode Fiber
STW-LX-850-002m-4-H8-T-PD	850nm	2mW	5um	8-Pin	Single   Mode Fiber
STW-LP-850-010m-4-PD	850nm	10mW	5um	Coaxial	Single   Mode Fiber
STW-LX-850-010m-4-H8-T-PD	850nm	10mW	5um	8-Pin	Single   Mode Fiber
STW-LP-850-030m-4-PD	850nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-850-030m-4-H8-T-PD	850nm	30mW	5um	8-Pin	Single   Mode Fiber
STW-LP-850-050m-4-PD	850nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-850-050m-4-H8-T-PD	850nm	50mW	5um	8-Pin	Single   Mode Fiber
STW-LP-850-070m-4-PD	850nm	70mW	5um	Coaxial	Single   Mode Fiber
STW-LX-850-070m-4-H8-T-PD	850nm	70mW	5um	8-Pin	Single   Mode Fiber
STW-LP-850-030m-PM-PD	850nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-850-030m-PM-H8-T-PD	850nm	30mW	5um	8-Pin	PM   Fiber
STW-LP-850-050m-PM-PD	850nm	50mW	5um	Coaxial	PM   Fiber
STW-LX-850-050m-PM-H8-T-PD	850nm	50mW	5um	8-Pin	PM   Fiber
STW-LP-850-070m-PM-PD	850nm	70mW	5um	Coaxial	PM   Fiber
STW-LX-850-070m-PM-H8-T-PD	850nm	70mW	5um	8-Pin	PM   Fiber
STW-LP-850-002m-9-PD	850nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-850-020m-9-PD	850nm	20mW	9um	Coaxial	Single   Mode Fiber
STW-LP-850-050m-9-PD	850nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-880-001m-4-PD	880nm	1mw	5um	Coaxial	Single   Mode Fiber
STW-LX-880-001m-4-H8-T-PD	880nm	1mW	5um	8-Pin	Single   Mode Fiber
STW-LP-880-001m-PM-PD	880nm	1mW	5um	Coaxial	PM   Fiber
STW-LX-880-001m-PM-H8-T-PD	880nm	1mW	5um	8-Pin	PM   Fiber
STW-LP-880-002m-9-PD	880nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-905-002m-4-PD	905nm	2mW	5um	Coaxial	Single   Mode Fiber
STW-LX-905-002m-4-H8-T-PD	905nm	2mW	5um	8-Pin	Single   Mode Fiber
STW-LP-905-030m-4-PD	905nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-905-030m-4-H8-T-PD	905nm	30mW	5um	8-Pin	Single   Mode Fiber
STW-LP-905-050m-4-PD	905nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-905-050m-4-H8-T-PD	905nm	50mW	5um	8-Pin	Single   Mode Fiber
STW-LP-905-070m-4-PD	905nm	70mW	5um	Coaxial	Single   Mode Fiber
STW-LX-905-070m-4-H8-T-PD	905nm	70mW	5um	8-Pin	Single   Mode Fiber
STW-LP-905-030m-PM-PD	905nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-905-030m-PM-H8-T-PD	905nm	30mW	5um	8-Pin	PM   Fiber
STW-LP-905-050m-PM-PD	905nm	50mW	5um	Coaxial	PM   Fiber
STW-LX-905-050m-PM-H8-T-PD	905nm	50mW	5um	8-Pin	PM   Fiber
STW-LP-905-070m-PM-PD	905nm	70mW	5um	Coaxial	PM   Fiber
STW-LX-905-070m-PM-H8-T-PD	905nm	70mW	5um	8-Pin	PM   Fiber
STW-LP-905-050m-9-PD	905nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-905-080m-9-PD	905nm	80mW	9um	Coaxial	Single   Mode Fiber
STW-LP-940-030m-4-PD	940nm	30mW	5um	Coaxial	Single   Mode Fiber
STW-LX-940-030m-4-H8-T-PD	940nm	30mW	5um	8-Pin	Single   Mode Fiber
STW-LP-940-050m-4-PD	940nm	50mW	5um	Coaxial	Single   Mode Fiber
STW-LX-940-050m-4-H8-T-PD	940nm	50mW	5um	8-Pin	Single   Mode Fiber
STW-LP-940-080m-4-PD	940nm	80mW	5um	Coaxial	Single   Mode Fiber
STW-LX-940-080m-4-H8-T-PD	940nm	80mW	5um	8-Pin	Single   Mode Fiber
STW-LP-940-100m-4-PD	940nm	100mW	5um	Coaxial	Single   Mode Fiber
STW-LX-940-100m-4-H8-T-PD	940nm	100mW	5um	8-Pin	Single   Mode Fiber
STW-LP-940-030m-PM-PD	940nm	30mW	5um	Coaxial	PM   Fiber
STW-LX-940-030m-PM-H8-T-PD	940nm	30mW	5um	8-Pin	PM   Fiber
STW-LP-940-050m-PM-PD	940nm	50mW	5um	Coaxial	PM   Fiber
STW-LX-940-050m-PM-H8-T-PD	940nm	50mW	5um	8-Pin	PM   Fiber
STW-LP-940-080m-PM-PD	940nm	80mW	5um	Coaxial	PM   Fiber
STW-LX-940-080m-PM-H8-T-PD	940nm	80mW	5um	8-Pin	PM   Fiber
STW-LP-940-100m-PM-PD	940nm	100mW	5um	Coaxial	PM   Fiber
STW-LX-940-100m-PM-H8-T-PD	940nm	100mW	5um	8-Pin	PM   Fiber
STW-LP-940-050m-9-PD	940nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-940-100m-9-PD	940nm	100mW	9um	Coaxial	Single   Mode Fiber
STW-LP-980-005m-4-PD	980nm	5mW	6um	Coaxial	Single   Mode Fiber
STW-LX-980-005m-4-H8-T-PD	980nm	5mW	6um	8-Pin	Single   Mode Fiber
STW-LP-980-010m-4-PD	980nm	10mW	6um	Coaxial	Single   Mode Fiber
STW-LX-980-010m-4-H8-T-PD	980nm	10mW	6um	8-Pin	Single   Mode Fiber
STW-LP-980-010m-9-PD	980nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LP-980-015m-9-PD	980nm	15mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1064-010m-4-PD	1064nm	10mW	6um	Coaxial	Single   Mode Fiber
STW-LP-1064-015m-4-PD	1064nm	15mW	6um	Coaxial	Single   Mode Fiber
STW-LP-1064-030m-4-PD	1064nm	30mW	6um	Coaxial	Single   Mode Fiber
STW-LP-1064-050m-4-PD	1064nm	50mW	6um	Coaxial	Single   Mode Fiber
STW-LP-1064-005m-PM-PD	1064nm	5mW	6um	Coaxial	PM   Fiber
STW-LP-1064-010m-PM-PD	1064nm	10mW	6um	Coaxial	PM   Fiber
STW-LP-1064-020m-PM-PD	1064nm	20mW	6um	Coaxial	PM   Fiber
STW-LP-1064-040m-PM-PD	1064nm	40mW	6um	Coaxial	PM   Fiber
STW-LP-1064-010m-9-PD	1064nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1064-020m-9-PD	1064nm	20mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1064-050m-9-PD	1064nm	50mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1270-002m-9-DFB	1270nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1270-005m-9-DFB	1270nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1270-005m-9-T-DFB	1270nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1270-005m-9-H8-T-DFB	1270nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1270-010m-9-DFB	1270nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1270-010m-9-H8-T-DFB	1270nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1270-005m-PM-DFB	1270nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1270-005m-PM-T-DFB	1270nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1270-005m-PM-H8-T-DFB	1270nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1270-010m-PM-DFB	1270nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1270-010m-PM-H8-T-DFB	1270nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1290-002m-9-DFB	1290nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1290-005m-9-DFB	1290nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1290-005m-9-T-DFB	1290nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1290-005m-9-H8-T-DFB	1290nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1290-010m-9-DFB	1290nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1290-010m-9-H8-T-DFB	1290nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1290-005m-PM-DFB	1290nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1290-005m-PM-T-DFB	1290nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1290-005m-PM-H8-T-DFB	1290nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1290-010m-PM-DFB	1290nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1290-010m-PM-H8-T-DFB	1290nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1310-002m-9-FP	1310nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1310-003m-9-DFB	1310nm	3mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1310-005m-9-DFB	1310nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1310-005m-9-H8-T-DFB	1310nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1310-010m-9-DFB	1310nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1310-010m-9-T-DFB	1310nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1310-010m-9-H8-T-DFB	1310nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1310-015m-9-DFB	1310nm	15mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1310-015m-9-H8-T-DFB	1310nm	15mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1310-010m-PM-DFB	1310nm	10mW	9um	Coaxial	PM   Fiber
STW-LP-1310-010m-PM-T-DFB	1310nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1310-010m-PM-H8-T-DFB	1310nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1310-015m-PM-DFB	1310nm	15mW	9um	Coaxial	PM   Fiber
STW-LX-1310-015m-PM-H8-T-DFB	1310nm	15mW	9um	8-Pin	PM   Fiber
STW-LP-1330-002m-9-DFB	1330nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1330-005m-9-DFB	1330nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1330-005m-9-T-DFB	1330nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1330-005m-9-H8-T-DFB	1330nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1330-010m-9-DFB	1330nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1330-010m-9-H8-T-DFB	1330nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1330-005m-PM-DFB	1330nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1330--005m-PM-T-DFB	1330nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1330-005m-PM-H8-T-DFB	1330nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1330-010m-PM-DFB	1330nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1330-010m-PM-H8-T-DFB	1330nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1350-002m-9-DFB	1350nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1350-005m-9-DFB	1350nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1350-005m-9-T-DFB	1350nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1350-005m-9-H8-T-DFB	1350nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1350-010m-9-DFB	1350nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1350-010m-9-H8-T-DFB	1350nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1350-005m-PM-DFB	1350nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1350--005m-PM-T-DFB	1350nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1350-005m-PM-H8-T-DFB	1350nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1350-010m-PM-DFB	1350nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1350-010m-PM-H8-T-DFB	1350nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1370-002m-9-DFB	1370nm	2mw	9um	coaxial	Single   Mode Fiber
STW-LP-1370-005m-9-DFB	1370nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1370-005m-9-T-DFB	1370nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1370-005m-9-H8-T-DFB	1370nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1370-010m-9-DFB	1370nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1370-010m-9-H8-T-DFB	1370nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1370-005m-PM-DFB	1370nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1370--005m-PM-T-DFB	1370nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1370-005m-PM-H8-T-DFB	1370nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1370-010m-PM-DFB	1370nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1370-010m-PM-H8-T-DFB	1370nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1390-002m-9-DFB	1390nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1390-005m-9-DFB	1390nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1390-005m-9-T-DFB	1390nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1390-005m-9-H8-T-DFB	1390nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1390-010m-9-DFB	1390nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1390-010m-9-H8-T-DFB	1390nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1390-005m-PM-DFB	1390nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1390--005m-PM-T-DFB	1390nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1390-005m-PM-H8-T-DFB	1390nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1390-010m-PM-DFB	1390nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1390-010m-PM-H8-T-DFB	1390nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1410-002m-9-DFB	1410nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1410-005m-9-DFB	1410nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1410-005m-9-T-DFB	1410nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1410-005m-9-H8-T-DFB	1410nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1410-010m-9-DFB	1410nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1410-010m-9-H8-T-DFB	1410nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1410-005m-PM-DFB	1410nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1410--005m-PM-T-DFB	1410nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1410-005m-PM-H8-T-DFB	1410nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1410-010m-PM-DFB	1410nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1410-010m-PM-H8-T-DFB	1410nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1430-002m-9-DFB	1430nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1430-005m-9-DFB	1430nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1430-005m-9-T-DFB	1430nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1430-005m-9-H8-T-DFB	1430nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1430-010m-9-DFB	1430nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1430-010m-9-H8-T-DFB	1430nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1430-005m-PM-DFB	1430nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1430--005m-PM-T-DFB	1430nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1430-005m-PM-H8-T-DFB	1430nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1430-010m-PM-DFB	1430nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1430-010m-PM-H8-T-DFB	1430nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1450-002m-9-DFB	1450nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1450-005m-9-DFB	1450nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1450-005m-9-T-DFB	1450nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1450-005m-9-H8-T-DFB	1450nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1450-010m-9-DFB	1450nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1450-010m-9-H8-T-DFB	1450nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1450-005m-PM-DFB	1450nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1450--005m-PM-T-DFB	1450nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1450-005m-PM-H8-T-DFB	1450nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1450-010m-PM-DFB	1450nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1450-010m-PM-H8-T-DFB	1450nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1470-002m-9-DFB	1470nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1470-005m-9-DFB	1470nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1470-005m-9-T-DFB	1470nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1470-005m-9-H8-T-DFB	1470nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1470-010m-9-DFB	1470nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1470-010m-9-H8-T-DFB	1470nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1470-005m-PM-DFB	1470nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1470--005m-PM-T-DFB	1470nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1470-005m-PM-H8-T-DFB	1470nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1470-010m-PM-DFB	1470nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1470-010m-PM-H8-T-DFB	1470nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1490-002m-9-DFB	1490nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1490-005m-9-DFB	1490nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1490-005m-9-T-DFB	1490nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1490-005m-9-H8-T-DFB	1490nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1490-010m-9-DFB	1490nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1490-010m-9-H8-T-DFB	1490nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1490-005m-PM-DFB	1490nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1490--005m-PM-T-DFB	1490nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1490-005m-PM-H8-T-DFB	1490nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1490-010m-PM-DFB	1490nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1490-010m-PM-H8-T-DFB	1490nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1510-002m-9-DFB	1510nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1510-005m-9-DFB	1510nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1510-005m-9-T-DFB	1510nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1510-005m-9-H8-T-DFB	1510nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1510-010m-9-DFB	1510nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1510-010m-9-H8-T-DFB	1510nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1510-005m-PM-DFB	1510nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1510--005m-PM-T-DFB	1510nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1510-005m-PM-H8-T-DFB	1510nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1510-010m-PM-DFB	1510nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1510-010m-PM-H8-T-DFB	1510nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1530-002m-9-DFB	1530nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1530-005m-9-DFB	1530nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1530-005m-9-T-DFB	1530nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1530-005m-9-H8-T-DFB	1530nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1530-010m-9-DFB	1530nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1530-010m-9-H8-T-DFB	1530nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1530-005m-PM-DFB	1530nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1530--005m-PM-T-DFB	1530nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1530-005m-PM-H8-T-DFB	1530nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1530-010m-PM-DFB	1530nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1530-010m-PM-H8-T-DFB	1530nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1550-002m-9-FP	1550nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1550-003m-9-DFB	1550nm	3mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1550-005m-9-DFB	1550nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1550-005m-9-H8-T-DFB	1550nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1550-010m-9-DFB	1550nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1550-010m-9-T-DFB	1550nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1550-010m-9-H8-T-DFB	1550nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1550-005m-PM-DFB	1550nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1550-005m-PM-H8-T-DFB	1550nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1550-010m-PM-DFB	1550nm	10mW	9um	Coaxial	PM   Fiber
STW-LP-1550-010m-PM-T-DFB	1550nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1550-010m-PM-H8-T-DFB	1550nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1570-002m-9-DFB	1570nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1570-005m-9-DFB	1570nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1570-005m-9-T-DFB	1570nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1570-005m-9-H8-T-DFB	1570nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1570-010m-9-DFB	1570nm	10mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1570-010m-9-H8-T-DFB	1570nm	10mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1570-005m-PM-DFB	1570nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1570--005m-PM-T-DFB	1570nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1570-005m-PM-H8-T-DFB	1570nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1570-010m-PM-DFB	1570nm	10mW	9um	Coaxial	PM   Fiber
STW-LX-1570-010m-PM-H8-T-DFB	1570nm	10mW	9um	8-Pin	PM   Fiber
STW-LP-1590-002m-9-DFB	1590nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1590-005m-9-DFB	1590nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1590-005m-9-T-DFB	1590nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1590-005m-9-H8-T-DFB	1590nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1590-008m-9-DFB	1590nm	8mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1590-008m-9-H8-T-DFB	1590nm	8mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1590-005m-PM-DFB	1590nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1590-005m-PM-T-DFB	1590nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1590-005m-PM-H8-T-DFB	1590nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1590-008m-PM-DFB	1590nm	8mW	9um	Coaxial	PM   Fiber
STW-LX-1590-008m-PM-H8-T-DFB	1590nm	8mW	9um	8-Pin	PM   Fiber
STW-LP-1610-002m-9-DFB	1610nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1610-005m-9-DFB	1610nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1610-005m-9-T-DFB	1610nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1610-005m-9-H8-T-DFB	1610nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1610-008m-9-DFB	1610nm	8mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1610-008m-9-H8-T-DFB	1610nm	8mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1610-005m-PM-DFB	1610nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1610-005m-PM-T-DFB	1610nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1610-005m-PM-H8-T-DFB	1610nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1610-008m-PM-DFB	1610nm	8mW	9um	Coaxial	PM   Fiber
STW-LX-1610-008m-PM-H8-T-DFB	1610nm	8mW	9um	8-Pin	PM   Fiber
STW-LP-1625-002m-9-DFB	1625nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1625-005m-9-DFB	1625nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1625-005m-9-T-DFB	1625nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1625-005m-9-H8-T-DFB	1625nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1625-008m-9-DFB	1625nm	8mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1625-008m-9-H8-T-DFB	1625nm	8mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1625-005m-PM-DFB	1625nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1625-005m-PM-T-DFB	1625nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1625-005m-PM-H8-T-DFB	1625nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1625-008m-PM-DFB	1625nm	8mW	9um	Coaxial	PM   Fiber
STW-LX-1625-008m-PM-H8-T-DFB	1625nm	8mW	9um	8-Pin	PM   Fiber
STW-LP-1650-002m-9-DFB	1650nm	2mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1650-005m-9-DFB	1650nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LP-1650-005m-9-T-DFB	1650nm	5mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1650-005m-9-H8-T-DFB	1650nm	5mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1650-008m-9-DFB	1650nm	8mW	9um	Coaxial	Single   Mode Fiber
STW-LX-1650-008m-9-H8-T-DFB	1650nm	8mW	9um	8-Pin	Single   Mode Fiber
STW-LP-1650-005m-PM-DFB	1650nm	5mW	9um	Coaxial	PM   Fiber
STW-LP-1650-005m-PM-T-DFB	1650nm	5mW	9um	Coaxial	PM   Fiber
STW-LX-1650-005m-PM-H8-T-DFB	1650nm	5mW	9um	8-Pin	PM   Fiber
STW-LP-1650-008m-PM-DFB	1650nm	8mW	9um	Coaxial	PM   Fiber
STW-LX-1650-008m-PM-H8-T-DFB	1650nm	8mW	9um	8-Pin	PM   Fiber

2. Single Mode Fiber Detachable Laser Module

We offer 445nm~1650nm fiber detachable laser module, which is suitable for single mode fiber, the fiber core can be 3um, 4um, 5um, 6um and 9um, the output power ranges is from 1mW to 100mW. With single mode fiber, it can get a perfect Gaussian beam. It is the single transverse mode. A cooler and a photodiode can be integrated into the laser module according to customer's requirement. The fiber detachable connector is suitable for FC-PC connector. We also offer the customized solution for fiber detachable laser modules, such as customized wavelength and customized power to meet the special needs of customers. We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser module will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser module. We set the storage temperature range from -40°C to +85°C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.

Features:

• 445nm~1650nm

• 1mW~100mW Output Power

• Suitable for 3um/4um/5um/6um/9um Single Mode Fiber

• Perfect Gaussian Beam

• FC Fiber Detachable Connector

• Coaxial/8-PIN Package

• Built-in TE Cooler Optional

• Built-in Photodiode Optional

• Long Lifetime

• High Stability

• Customized Wavelength/Power/Fiber Core

Wavelength

Part Number

Output Power (ex-fiber)

Applicable Fiber

Applicable Fiber Core/NA

Detachable Connector

TEC

PD

Package

445nm

STW-LR-445-005m-4 STW-LR-445-005m-4-H8-T STW-LR-445-010m-4 STW-LR-445-010m-4-H8-T STW-LR-445-020m-4 STW-LR-445-020m-4-H8-T

5mW 5mW 10mW 10mW 20mW 20mW

Single Mode Single Mode Single Mode Single Mode Single Mode Single Mode

3um/0.12 3um/0.12 3um/0.12 3um/0.12 3um/0.12 3um/0.12

FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC

× √ × √ × √

× 〇 × 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin

STW-LR-445-030m-9 STW-LR-445-030m-9-H8-T STW-LR-445-050m-9 STW-LR-445-050m-9-H8-T

30mW 30mW 50mW 50mW

SMF-28 SMF-28 SMF-28 SMF-28

9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

480nm

STW-LR-480-010m-4 STW-LR-480-010m-4-H8-T STW-LR-480-020m-4 STW-LR-480-020m-4-H8-T

10mW 10mW 20mW 20mW

Single Mode Single Mode Single Mode Single Mode

3um/0.12 3um/0.12 3um/0.12 3um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

STW-LR-480-030m-9 STW-LR-480-030m-9-H8-T STW-LR-480-050m-9 STW-LR-480-050m-9-H8-T

30mW 30mW 50mW 50mW

SMF-28 SMF-28 SMF-28 SMF-28

9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

488nm

STW-LR-488-010m-4 STW-LR-488-010m-4-H8-T STW-LR-488-020m-4 STW-LR-488-020m-4-H8-T

10mW 10mW 20mW 20mW

Single Mode Single Mode Single Mode Single Mode

3um/0.12 3um/0.12 3um/0.12 3um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

STW-LR-488-030m-9 STW-LR-488-030m-9-H8-T STW-LR-488-050m-9 STW-LR-488-050m-9-H8-T

30mW 30mW 50mW 50mW

SMF-28 SMF-28 SMF-28 SMF-28

9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

495nm

STW-LR-495-010m-4 STW-LR-495-010m-4-H8-T STW-LR-495-020m-4 STW-LR-495-020m-4-H8-T

10mW 10mW 20mW 20mW

Single Mode Single Mode Single Mode Single Mode

3um/0.12 3um/0.12 3um/0.12 3um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

STW-LR-495-030m-9 STW-LR-495-030m-9-H8-T STW-LR-495-050m-9 STW-LR-495-050m-9-H8-T

30mW 30mW 50mW 50mW

SMF-28 SMF-28 SMF-28 SMF-28

9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

× 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin

505nm

STW-LR-505-005m-4 STW-LR-505-005m-4-H8-T STW-LR-505-010m-4 STW-LR-505-010m-4-H8-T STW-LR-505-010m-9 STW-LR-505-010m-9-H8-T STW-LR-505-020m-9 STW-LR-505-020m-9-H8-T

5mW 5mW 10mW 10mW 10mW 10mW 20mW 20mW

Single Mode Single Mode Single Mode Single Mode SMF-28 SMF-28 SMF-28 SMF-28

3um/0.12 3um/0.12 3um/0.12 3um/0.12 9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC

× √ × √ × √ × √

× 〇 × 〇 × 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin

520nm

STW-LR-520-010m-4 STW-LR-520-010m-4-H8-T STW-LR-520-020m-4 STW-LR-520-020m-4-H8-T STW-LR-520-030m-9 STW-LR-520-030m-9-H8-T

10mW 10mW 20mW 20mW 30mW 30mW

Single Mode Single Mode Single Mode Single Mode SMF-28 SMF-28

3um/0.12 3um/0.12 3um/0.12 3um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC

× √ × √ × √

〇 〇 〇 〇 〇 〇

Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin

635nm

STW-LR-635-001m-4-PD STW-LR-635-003m-4-PD STW-LR-635-005m-4-PD STW-LR-635-005m-4-H8-T-PD STW-LR-635-010m-4-PD STW-LR-635-010m-4-H8-T-PD STW-LR-635-030m-4-PD STW-LR-635-030m-4-H8-T-PD STW-LR-635-005m-9-PD STW-LR-635-005m-9-H8-T-PD STW-LR-635-030m-9-PD STW-LR-635-030m-9-H8-T-PD

1mW 3mW 5mW 5mW 10mW 10mW 30mW 30mW 5mW 5mW 30mW 30mW

Single Mode Single Mode Single Mode Single Mode Single Mode Single Mode Single Mode Single Mode SMF-28 SMF-28 SMF-28 SMF-28

4um/0.12 4um/0.12 4um/0.12 4um/0.12 4um/0.12 4um/0.12 4um/0.12 4um/0.12 9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC

× × × √ × √ × √ × √ × √

√ √ √ √ √ √ √ √ √ √ √ √

Coaxial Coaxial Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin

660nm

STW-LR-660-005m-4-PD STW-LR-660-005m-4-H8-T-PD STW-LR-660-030m-4 STW-LR-660-030m-4-H8-T STW-LR-660-050m-4 STW-LR-660-050m-4-H8-T STW-LR-660-005m-9-PD STW-LR-660-005m-9-H8-T-PD STW-LR-660-030m-9 STW-LR-660-030m-9-H8-T STW-LR-660-050m-9 STW-LR-660-050m-9-H8-T

5mW 5mW 30mW 30mW 50mW 50mW 5mW 5mW 30mW 30mW 50mW 50mW

Single Mode Single Mode Single Mode Single Mode Single Mode Single Mode SMF-28 SMF-28 SMF-28 SMF-28 SMF-28 SMF-28

4um/0.12 4um/0.12 4um/0.12 4um/0.12 4um/0.12 4um/0.12 9um/0.12 9um/0.12 9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC

× √ × √ × √ × √ × √ × √

√ √ × 〇 × 〇 √ √ × 〇 × 〇

Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin

670nm

STW-LR-670-001m-4-PD STW-LR-670-050m-4 STW-LR-670-050m-4-H8-T STW-LR-670-002m-9-PD STW-LR-670-050m-9 STW-LR-670-050m-9-H8-T

1mW 50mW 50mW 2mW 50mW 50mW

Single Mode Single Mode Single Mode SMF-28 SMF-28 SMF-28

4um/0.12 4um/0.12 4um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC FC-PC FC-PC

× × √ × × √

√ × 〇 √ × 〇

Coaxial Coaxial 8-Pin Coaxial Coaxial 8-Pin

685nm

STW-LR-685-005m-4-PD STW-LR-685-005m-4-H8-T-PD

5mW 5mW

Single Mode Single Mode

4um/0.12 4um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

STW-LR-685-005m-9-PD STW-LR-685-005m-9-H8-T-PD

5mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

785nm

STW-LR-785-010m-4-PD STW-LR-785-010m-4-H8-T-PD STW-LR-785-020m-4-PD STW-LR-785-020m-4-H8-T-PD

10mW 10mW 20mW 20mW

Single Mode Single Mode Single Mode Single Mode

5um/0.12 5um/0.12 5um/0.12 5um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

√ √ √ √

Coaxial 8-Pin Coaxial 8-Pin

STW-LR-785-030m-9-PD STW-LR-785-030m-9-H8-T-PD

30mW 30mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

820nm

STW-LR-820-030m-4-PD STW-LR-820-030m-4-H8-T-PD

30mW 30mW

Single Mode Single Mode

5um/0.12 5um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

STW-LR-820-030m-9-PD STW-LR-820-030m-9-H8-T-PD

30mW 30mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

830nm

STW-LR-830-030m-4-PD STW-LR-830-030m-4-H8-T-PD

30mW 30mW

Single Mode Single Mode

5um/0.12 5um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

STW-LR-830-030m-9-PD STW-LR-830-030m-9-H8-T-PD

30mW 30mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

850nm

STW-LR-850-030m-4-PD STW-LR-850-030m-4-H8-T-PD

30mW 30mW

Single Mode Single Mode

5um/0.12 5um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

STW-LR-850-030m-9-PD STW-LR-850-030m-9-H8-T-PD

30mW 30mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

880nm

STW-LR-880-001m-4-PD

1mW

Single Mode

5um/0.12

FC-PC

×

√

Coaxial

STW-LR-880-001m-9-PD

1mW

SMF-28

9um/0.12

FC-PC

×

√

Coaxial

905nm

STW-LR-905-030m-4-PD STW-LR-905-030m-4-H8-T-PD

30mW 30mW

Single Mode Single Mode

5um/0.12 5um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

STW-LR-905-030m-9-PD STW-LR-905-030m-9-H8-T-PD

30mW 30mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× √

√ √

Coaxial 8-Pin

940nm

STW-LR-940-030m-4-PD STW-LR-940-030m-4-H8-T-PD STW-LR-940-050m-4-PD STW-LR-940-050m-4-H8-T-PD

30mW 30mW 50mW 50mW

Single Mode Single Mode Single Mode Single Mode

5um/0.12 5um/0.12 5um/0.12 5um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

√ √ √ √

Coaxial 8-Pin Coaxial 8-Pin

STW-LR-940-030m-9-PD STW-LR-940-030m-9-H8-T-PD STW-LR-940-050m-9-PD STW-LR-940-050m-9-H8-T-PD

30mW 30mW 50mW 50mW

SMF-28 SMF-28 SMF-28 SMF-28

9um/0.12 9um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

√ √ √ √

Coaxial 8-Pin Coaxial 8-Pin

980nm

STW-LR-980-005m-4-PD STW-LR-980-005m-4-H8-T-PD STW-LR-980-005m-9-PD STW-LR-980-005m-9-H8-T-PD

u5mW 5mW 5mW 5mW

Single Mode Single Mode SMF-28 SMF-28

6um/0.12 6um/0.12 9um/0.12 9um/0.12

FC-PC FC-PC FC-PC FC-PC

× √ × √

√ √ √ √

Coaxial 8-Pin Coaxial 8-Pin

1270nm

STW-LR-1270-002m-9-PD STW-LR-1270-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1290nm

STW-LR-1290-002m-9-PD STW-LR-1290-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1310nm

STW-LR-1310-002m-9-PD STW-LR-1310-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1330nm

STW-LR-1330-002m-9-PD STW-LR-1330-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1350nm

STW-LR-1350-002m-9-PD STW-LR-1350-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1370nm

STW-LR-1370-002m-9-PD STW-LR-1370-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1390nm

STW-LR-1390-002m-9-PD STW-LR-1390-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1410nm

STW-LR-1410-002m-9-PD STW-LR-1410-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1430nm

STW-LR-1430-002m-9-PD STW-LR-1430-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1450nm

STW-LR-1450-002m-9-PD STW-LR-1450-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1470nm

STW-LR-1470-002m-9-PD STW-LR-1470-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1490nm

STW-LR-1490-002m-9-PD STW-LR-1490-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1510nm

STW-LR-1510-002m-9-PD STW-LR-1510-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1530nm

STW-LR-1530-002m-9-PD STW-LR-1530-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1550nm

STW-LR-1550-002m-9-PD STW-LR-1550-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1570nm

STW-LR-1570-002m-9-PD STW-LR-1570-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1590nm

STW-LR-1590-002m-9-PD STW-LR-1590-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1610nm

STW-LR-1610-002m-9-PD STW-LR-1610-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1625nm

STW-LR-1625-002m-9-PD STW-LR-1625-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

1650nm

STW-LR-1650-002m-9-PD STW-LR-1650-005m-9-PD

2mW 5mW

SMF-28 SMF-28

9um/0.12 9um/0.12

FC-PC FC-PC

× ×

√ √

Coaxial Coaxial

3. Multi-mode Fiber Coupled Laser Diodes

Features:

• 405nm~1920nm

• 5mW~50W Output Power

• 50um/ 105um/ 200um/ 400um Fiber Core

• Coaxial/ 2-PIN/ 4-PIN/ 14-PIN/ 9-PIN Package

• Built-in TE Cooler Optional

• Built-in Photodiode Optional

• Red/Green Aiming Beam Optional for IR LASER

• Long Lifetime

• High Stability

• Customized Wavelength

• Customized Output Power

• Customized Fiber Core

We offer High Coupling Efficient Solution for 405nm~1920nm Pigtailed Laser Module with 50um,105um,200um,400um Fiber Core, the output power ranges from 5mW to 50W. Meanwhile, the TE Cooler and Photodiode is optional for customers, the Green or Red Aiming Beam is also optional for IR Lasers. We can integrate these functions into the Laser Module as per customer's requirement. The standard package of the lasers can be Coaxial,2-PIN,4-PIN,14-PIN and 9-PIN.

Part   Number	Wavelength	Output   Power	Fiber   Core	Package
STW-LP-375-100m-M	375nm	100mW	UV   105um	Coaxial
STW-LX-375-100m-M-H9-T	375nm	100mW	UV   105um	9-Pin
STW-LP-395-200m-50M	395nm	200mW	UV   50um	Coaxial
STW-LX-395-200m-50M-H-T	395nm	200mW	UV   50um	HHL-01
STW-LP-395-200m-M	395nm	200mW	UV105um	Coaxial
STW-LX-395-200m-M-H-T	395nm	200mW	UV105um	HHL-01
STW-LP-400-400m-M	400nm	400mW	UV105um	Coaxial
STW-LX-400-400m-M-H14-T-PD	400nm	400mW	UV105um	14-Pin
STW-LX-400-400m-M-H-T	400nm	400mW	UV105um	HHL-01
STW-LP-405-200m-50M	405nm	200mW	UV   50um	Coaxial
STW-LX-405-200m-50M-H-T	405nm	200mW	UV   50um	HHL-01
STW-LP-405-200m-M	405nm	200mW	UV105um	Coaxial
STW-LX-405-200m-M-H-T	405nm	200mW	UV105um	HHL-01
STW-LP-405-300m-M	405nm	300mW	UV105um	Coaxial
STW-LX-405-300m-M-H-T	405nm	300mW	UV105um	HHL-01
STW-LX-405-300m-M-H14-T-PD	405nm	300mW	UV105um	14-Pin
STW-LP-405-400m-50M	405nm	400mW	UV   50um	Coaxial
STW-LX-405-400m-50M-H-T	405nm	400mW	UV   50um	HHL-01
STW-LX-405-400m-50M-H14-T-PD	405nm	400mW	UV   50um	14-Pin
STW-LP-405-450m-M	405nm	450mW	UV105um	Coaxial
STW-LX-405-450m-M-H-T	405nm	450mW	UV105um	HHL-01
STW-LX-405-450m-M-H14-T-PD	405nm	350mW	UV105um	14-Pin
STW-LP-410-300m-M	410nm	300mW	UV105um	Coaxial
STW-LX-410-300m-M-H-T	410nm	300mW	UV105um	HHL-01
STW-LP-413-300m-M	413nm	300mW	UV105um	Coaxial
STW-LX-413-300m-M-H-T	413nm	300mW	UV105um	HHL-01
STW-LP-445-050m-M	445nm	50mW	105um	Coaxial
STW-LX-445-050m-M-H8-T	445nm	50mW	105um	8-Pin
STW-LP-445-080m-M	445nm	80mW	105um	Coaxial
STW-LX-445-080m-M-H8-T	445nm	80mW	105um	8-Pin
STW-LP-445-800m-M	445nm	800mW	105um	Coaxial
STW-LP-445-001-M	445nm	1W	105um	Coaxial
STW-LX-445-001-M-H-T	445nm	1W	105um	HHL-01
STW-LX-445-001-M-H14-T-PD	445nm	1W	105um	14-Pin
STW-LP-445-3500m-M	445nm	3.5W	105um	Coaxial
STW-LX-445-3500m-M-H9-T-PD	445nm	3.5W	105um	9-Pin
STW-LX-445-010-200M-H	445nm	10W	200um	P4
STW-LX-445-020-400M-H	445nm	20W	400um	P5
STW-LP-455-003-50M	455nm	3W	50um	Coaxial
STW-LX-455-003-50M-H9-T-PD	455nm	3W	50um	9-Pin
STW-LP-455-004-200M	455nm	4W	200um	Coaxial
STW-LX-455-004-200M-H9-T-PD	455nm	4W	200um	9-Pin
STW-LP-465-002-M	465nm	2W	105um	Coaxial
STW-LX-465-002-M-H9-T-PD	465nm	2W	105um	9-Pin
STW-LX-465-007-200M-H	465nm	7W	200um	P4
STW-LX-465-015-400M-H	465nm	15W	400um	P5
STW-LP-480-050m-M	480nm	50mW	105um	Coaxial
STW-LX-480-050m-M-H8-T	480nm	50mW	105um	8-Pin
STW-LP-488-050m-M	480nm	50mW	105um	Coaxial
STW-LX-488-050m-M-H8-T	480nm	50mW	105um	8-Pin
STW-LP-488-080m-M	480nm	80mW	105um	Coaxial
STW-LX-488-080m-M-H8-T	480nm	80mW	105um	8-Pin
STW-LP-495-050m-M	495nm	50mW	105um	Coaxial
STW-LX-495-050m-M-H8-T	495nm	50mW	105um	8-Pin
STW-LP-505-030m-M	505nm	30mW	105um	Coaxial
STW-LX-505-030m-M-H8-T	505nm	30mW	105um	8-Pin
STW-LP-505-050m-M	505nm	50mW	105um	Coaxial
STW-LX-505-050m-M-H8-T	505nm	50mW	105um	8-Pin
STW-LP-520-010m-M-PD	520nm	10mW	105um	Coaxial
STW-LX-520-010m-M-H8-T-PD	520nm	10mW	105um	8-Pin
STW-LP-520-030m-M-PD	520nm	30mW	105um	Coaxial
STW-LX-520-030m-M-H8-T-PD	520nm	30mW	105um	8-Pin
STW-LP-520-050m-M-PD	520nm	50mW	105um	Coaxial
STW-LX-520-050m-M-H8-T-PD	520nm	50mW	105um	8-Pin
STW-LP-520-080m-M	520nm	80mW	105um	Coaxial
STW-LX-520-080m-M-H8-T	520nm	80mW	105um	8-Pin
STW-LP-520-200m-M	520nm	200mW	105um	Coaxial
STW-LP-520-300m-M	520nm	300mW	105um	Coaxial
STW-LP-520-800m-50M	520nm	800mW	50um	Coaxial
STW-LX-520-800m-50M-H9-T-PD	520nm	800mW	50um	9-Pin
STW-LP-520-800m-M	520nm	800mW	105um	Coaxial
STW-LX-520-800m-M-H9-T-PD	520nm	800mW	105um	9-Pin
STW-LP-520-001-50M	520nm	1W	50um	Coaxial
STW-LX-520-001-50M-H9-T-PD	520nm	1W	50um	9-Pin
STW-LP-520-1200m-M	520nm	1.2W	105um	Coaxial
STW-LX-520-1200m-M-H9-T-PD	520nm	1.2W	105um	9-Pin
STW-LX-520-002-M-H	520nm	2W	105um	P4
STW-LX-520-005-200M-H	520nm	5W	200um	P5
STW-LP-525-800m-50M	525nm	800mW	50um	Coaxial
STW-LX-525-800m-50M-H9-T-PD	525nm	800mW	50um	9-Pin
STW-LP-525-800m-M	525nm	800mW	105um	Coaxial
STW-LX-525-800m-M-H9-T-PD	525nm	800mW	105um	9-Pin
STW-LP-525-001-50M	525nm	1W	50um	Coaxial
STW-LX-525-001-50M-H9-T-PD	525nm	1W	50um	9-Pin
STW-LP-525-1200m-M	525nm	1.2W	105um	Coaxial
STW-LX-525-1200m-M-H9-T-PD	525nm	1.2W	105um	9-Pin
STW-LX-525-002-M-H	525nm	2W	105um	P4
STW-LX-525-005-200M-H	525nm	5W	200um	P5
STW-LP-532-001-50M	532nm	1W	50um	Coaxial
STW-LX-532-001-50M-H9-T-PD	532nm	1W	50um	9-Pin
STW-LP-532-001-M	532nm	1W	105um	Coaxial
STW-LX-532-001-M-H9-T-PD	532nm	1W	105um	9-Pin
STW-LX-630-300m-M-H9-T-PD	630nm	300mW	105um	9-Pin
STW-LX-633-700m-M-H9-T-PD	633nm	700mW	105um	9-Pin
STW-LX-633-001-200M-H9-T-PD	633nm	1W	200um	9-Pin
STW-LP-635-005m-M-PD	635nm	5mW	105um	Coaxial
STW-LP-635-020m-M-PD	635nm	20mW	105um	Coaxial
STW-LP-635-120m-M-PD	635nm	120mW	105um	Coaxial
STW-LX-635-120m-M-H8-T-PD	635nm	120mW	105um	8-Pin
STW-LP-635-150m-M-PD	635nm	150mW	105um	Coaxial
STW-LX-635-150m-M-H8-T-PD	635nm	150mW	105um	8-Pin
STW-LP-635-300m-M	635nm	300mW	105um	Coaxial
STW-LX-635-300m-M-H8-T	635nm	300mW	105um	8-Pin
STW-LP-635-400m-M	635nm	400mW	105um	Coaxial
STW-LX-635-400m-M-H8-T	635nm	400mW	105um	8-Pin
STW-LX-635-400m-M-H4-PD	635nm	400mW	105um	4-Pin
STW-LX-635-400m-M-H14-T-PD	635nm	400mW	105um	14-Pin
STW-LP-635-800m-50M	635nm	800mW	50um	Coaxial
STW-LX-635-800m-50M-H9-T-PD	635nm	800mW	50um	9-Pin
STW-LP-635-001-M	635nm	1W	105um	Coaxial
STW-LX-635-001-M-H9-T-PD	635nm	1W	105um	9-Pin
STW-LP-635-1800m-200M	635nm	1.8W	200um	Coaxial
STW-LX-635-1800m-200M-H9-T-PD	635nm	1.8W	200um	9-Pin
STW-LX-653-700m-M-H9-T-PD	653nm	700mw	105um	9-Pin
STW-LP-660-030m-M-PD	660nm	30mW	105um	Coaxial
STW-LP-660-050m-M-PD	660nm	50mW	105um	Coaxial
STW-LP-660-080m-M-PD	660nm	80mW	105um	Coaxial
STW-LP-660-120m-M	660nm	120mW	105um	Coaxial
STW-LX-660-120m-M-H8-T	660nm	120mW	105um	8-Pin
STW-LX-660-800m-50M-H2	660nm	800mW	50um	2-Pin
STW-LX-660-800m-50M-H14-T-PD	660nm	800mW	50um	14-Pin
STW-LX-660-800m-M-H2	660nm	800mW	105um	2-Pin
STW-LX-660-800m-M-H14-T-PD	660nm	800mW	105um	14-Pin
STW-LX-660-001-50M-H2	660nm	1W	50um	2-Pin
STW-LX-660-001-50M-H14-T-PD	660nm	1W	50um	14-Pin
STW-LX-660-001-M-H2	660nm	1W	105um	2-Pin
STW-LX-660-001-M-H14-T-PD	660nm	1W	105um	14-Pin
STW-LP-670-005m-M-PD	670nm	5mW	105um	Coaxial
STW-LX-670-005m-M-H8-T-PD	670nm	5mW	105um	8-Pin
STW-LP-670-010m-M-PD	670nm	10mW	105um	Coaxial
STW-LX-670-010m-M-H8-T-PD	670nm	10mW	105um	8-Pin
STW-LP-670-120m-M	670nm	120mW	105um	Coaxial
STW-LX-670-120m-M-H8-T	670nm	120mW	105um	8-Pin
STW-LP-685-030m-M-PD	685nm	30mW	105um	Coaxial
STW-LX-685-030m-M-H8-T-PD	685nm	30mW	105um	8-Pin
STW-LX-690-800m-M-H4	690nm	800mW	105um	4-Pin
STW-LX-690-800m-M-H9-T-PD	690nm	800mW	105um	9-Pin
STW-LX-760-1500m-M-H2	760nm	1.5W	105um	2-Pin
STW-LX-760-1500m-M-H14-T-PD	760nm	1.5W	105um	14-Pin
STW-LX-760-003-200M-H2	760nm	3W	200um	2-Pin
STW-LX-760-003-200M-H9-T-PD	760nm	3W	200um	9-Pin
STW-LX-770-003-M-H2	770nm	3W	105um	2-Pin
STW-LX-770-003-M-H9-T-PD	770nm	3W	105um	9-Pin
STW-LP-785-050m-M-PD	785nm	50mW	105um	Coaxial
STW-LX-785-050m-M-H8-T-PD	785nm	50mW	105um	8-Pin
STW-LX-785-1500m-50M-H2	785nm	1.5W	50um	2-Pin
STW-LX-785-1500m-50M-H14-T-PD	785nm	1.5W	50um	14-Pin
STW-LX-785-002-M-H14-T-PD	785nm	2W	105um	14-Pin
STW-LX-785-003-M-H2	785nm	3W	105um	2-Pin
STW-LX-785-003-M-H9-T-PD	785nm	3W	105um	9-Pin
STW-LX-785-007-M-H2	785nm	7W	105um	2-Pin
STW-LX-785-007-M-H9-T-PD	785nm	7W	105um	9-Pin
STW-LP-808-150m-62M-PD	808nm	150mW	62.5um	Coaxial
STW-LX-808-150m-62M-H8-T-PD	808nm	150mW	62.5um	8-Pin
STW-LP-808-200m-M-PD	808nm	200mW	105um	Coaxial
STW-LX-808-200m-M-H8-T-PD	808nm	200mW	105um	8-Pin
STW-LP-808-300m-M-PD	808nm	300mW	105um	Coaxial
STW-LX-808-300m-M-H8-T-PD	808nm	300mW	105um	8-Pin
STW-LX-808-002-50M-H14-T-PD	808nm	2W	50um	14-Pin
STW-LX-808-002-M-H14-T-PD	808nm	2W	105um	14-Pin
STW-LX-808-004-M-H2	808nm	4W	105um	2-Pin
STW-LX-808-004-M-H9-T-PD	808nm	4W	105um	9-Pin
STW-LX-808-005-M-H2	808nm	5W	105um	2-Pin
STW-LX-808-008-M-H2	808nm	8W	105um	2-Pin
STW-LX-808-008-M-H9-T-PD	808nm	8W	105um	9-Pin
STW-LX-808-010-200M-H2	808nm	10W	200um	2-Pin
STW-LX-808-025-200M-HH2	808nm	25W	200um	2-Pin
STW-LP-830-150m-M-PD	830nm	150mW	105um	Coaxial
STW-LX-830-150m-M-H8-T-PD	830nm	150mW	105um	8-Pin
STW-LP-830-200m-M-PD	830nm	200mW	105um	Coaxial
STW-LX-830-200m-M-H8-T-PD	830nm	200mW	105um	8-Pin
STW-LX-830-001-50M-H2	830nm	1W	50um	2-Pin
STW-LX-830-002-50M-H2   (0.15)	830nm	2W	50um	2-Pin
STW-LX-830-002-50M-H14-T-PD	830nm	2W	50um	14-Pin
STW-LX-830-002-M-H14-T-PD	830nm	2W	105um	14-Pin
STW-LX-830-003-M-H2	830nm	3W	105um	2-Pin
STW-LP-850-050m-M-PD	850nm	50mW	105um	Coaxial
STW-LX-850-050m-M-H8-T-PD	850nm	50mW	105um	8-Pin
STW-LP-850-150m-M-PD	850nm	150mW	105um	Coaxial
STW-LX-850-150m-M-H8-T-PD	850nm	150mW	105um	8-Pin
STW-LP-850-200m-M-PD	850nm	200mW	105um	Coaxial
STW-LX-850-200m-M-H8-T-PD	850nm	200mW	105um	8-Pin
STW-LP-880-005m-M-PD	880nm	5mW	105um	Coaxial
STW-LX-880-005m-M-H8-T-PD	880nm	5mW	105um	8-Pin
STW-LX-880-002-M-H14-T-PD	880nm	2W	105um	14-Pin
STW-LX-880-003-M-H2	880nm	3W	105um	2-Pin
STW-LP-905-120m-M-PD	905nm	120mW	105um	Coaxial
STW-LX-905-120m-M-H8-T-PD	905nm	120mW	105um	8-Pin
STW-LP-905-150m-M-PD	905nm	150mW	105um	Coaxial
STW-LX-905-150m-M-H8-T-PD	905nm	150mW	105um	8-Pin
STW-LX-915-002-M-H14-T-PD	915nm	2W	105um	14-Pin
STW-LX-915-010-M-H2	915nm	10W	105um	2-Pin
STW-LX-915-010-M-H9-T-PD	915nm	10W	105um	9-Pin
STW-LX-915-020-M-HH2	915nm	20W	105um	2-Pin
STW-LX-915-030-M-HH2	915nm	30W	105um	2-Pin
STW-LX-915-055-M-HH2	915nm	55W	105um	2-Pin
STW-LP-940-200m-M-PD	940nm	200mW	105um	Coaxial
STW-LX-940-200m-M-H8-T-PD	940nm	200mW	105um	8-Pin
STW-LX-940-002-M-H14-T-PD	940nm	2W	105um	14-Pin
STW-LX-940-010-M-H2	940nm	10W	105um	2-Pin
STW-LX-940-010-M-H9-T-PD	940nm	10W	105um	9-Pin
STW-LX-940-020-M-HH2	940nm	20W	105um	2-Pin
STW-LX-940-030-M-HH2	940nm	30W	105um	2-Pin
STW-LP-980-100m-M-PD	980nm	100mw	105um	Coaxial
STW-LX-980-100m-M-H8-T-PD	980nm	100mW	105um	8-Pin
STW-LP-980-150m-M-PD	980nm	150mw	105um	Coaxial
STW-LX-980-150m-M-H8-T-PD	980nm	150mW	105um	8-Pin
STW-LX-980-002-M-H14-T-PD	980nm	2W	105um	14-Pin
STW-LX-980-010-M-H2	980nm	10W	105um	2-Pin
STW-LX-980-010-M-H9-T-PD	980nm	10W	105um	9-Pin
STW-LX-980-020-M-HH2	980nm	20W	105um	2-Pin
STW-LX-980-030-M-HH2	980nm	30W	105um	2-Pin
STW-LX-980-055-M-HH2	980nm	55W	105um	2-Pin
STW-LX-1064-001-M-H14-T-PD	1064nm	1W	105um	14-Pin
STW-LX-1064-008-M-H2	1064nm	8W	105um	2-Pin
STW-LX-1064-008-M-H9-T-PD	1064nm	8W	105um	9-Pin
STW-LX-1064-025-M-H2	1064nm	25W	105um	2-Pin
STW-LX-1310-001-M-H14-T-PD	1310nm	1W	105um	14-Pin
STW-LX-1310-001-M-H2	1310nm	1W	105um	2-Pin
STW-LX-1330-001-M-H14-T-PD	1310nm	1W	105um	14-Pin
STW-LX-1330-001-M-H2	1310nm	1W	105um	2-Pin
STW-LX-1450-002-M-H2	1450nm	2W	105um	2-Pin
STW-LX-1450-002-M-H9-T-PD	1450nm	2W	105um	9-Pin
STW-LX-1470-800m-M-H14-T-PD	1470nm	800mW	105um	14-Pin
STW-LX-1470-001-M-H2	1470nm	1W	105um	2-Pin
STW-LX-1470-2500m-M-H2	1470nm	2.5W	105um	2-Pin
STW-LX-1470-2500m-M-H9-T-PD	1470nm	2.5W	105um	9-Pin
STW-LX-1470-003-M-H2	1470nm	3W	105um	2-Pin
STW-LX-1470-003-M-H9-T-PD	1470nm	3W	105um	9-Pin
STW-LX-1490-002-M-H2	1490nm	2W	105um	2-Pin
STW-LX-1490-002-M-H9-T-PD	1490nm	2W	105um	9-Pin
STW-LX-1530-1500m-M-H2	1530nm	1.5W	105um	2-Pin
STW-LX-1530-1500m-M-H9-T-PD	1530nm	1.5W	105um	9-Pin
STW-LX-1550-1500m-M-H2	1550nm	1.5W	105um	2-Pin
STW-LX-1550-1500m-M-H9-T-PD	1550nm	1.5W	105um	9-Pin
STW-LX-1550-2500m-M-H2	1550nm	2.5W	105um	2-Pin
STW-LX-1550-2500m-M-H9-T-PD	1550nm	2.5W	105um	9-Pin
STW-LX-1570-1500m-M-H2	1570nm	1.5W	105um	2-Pin
STW-LX-1570-1500m-M-H9-T-PD	1570nm	1.5W	105um	9-Pin
STW-LX-1920-400m-M-H2	1920nm	400mW	105um	2-Pin

4. Multi-mode F iber Detachable Laser Module

We offer 375nm~1920nm fiber detachable laser module with the fiber core 25um, 50um, 105um, 200um and 400um and the output power ranges from 5mW to 30W. The Package can be coaxial, 9PIN, 14PIN, The fiber detachable connector can be SC, FC, ST or SMA905. The TE cooler and photodiode is optional and we can integrate them into the laser module according to customer's requirement. Meanwhile, we also can integrate the red/green aiming beam and fiber detector into the laser module. We also offer the customized solution for fiber detachable laser modules, such as customized wavelength and customized power, meet the special needs of customers. We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser module will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser module. We set the storage temperature range from -40°C to +85°C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.

Features:

• 375nm~1920nm

• 5mW~30W Output Power

• Suitable for 25um/50um/105um/200um/400um Multimode Fiber

• FC/ST/SC/SMA905 Fiber Detachable Connector

• Coaxial/8PIN/9PIN/14PIN Package

• Built-in TE Cooler Optional

• Built-in Photodiode Optional

• Built-in Aiming Beam Optional

• Built-in Fiber Detector Optional

• Long Lifetime

• High Stability

• Customized Wavelength/Power/Fiber Core

Wavelength	Part Number	Output Power (ex-fiber)	Applicable Fiber	Detachable Connector	Package	TEC	PD	Aiming Beam	Fiber Detector
375nm	STW-LR-375-100m-M STW-LR-375-100m-M-H-T STW-LR-375-100m-M-H9-T STW-LR-375-100m-M-H14-T-FD	100mW 100mW 100mW 100mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial HHL-01 9-Pin 14-Pin	× √ √ √	× × × ×	× × × ×	× × × √
395nm	STW-LR-395-200m-M STW-LR-395-200m-M-H-T STW-LR-395-200m-M-H9-T STW-LR-395-200m-M-H14-T-FD	200mW 200mW 200mW 200mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial HHL-01 9-Pin 14-Pin	× √ √ √	× × × ×	× × × ×	× × × √
400nm	STW-LR-400-400m-M STW-LR-400-400m-M-H-T STW-LR-400-400m-M-H9-T STW-LR-400-400m-M-H14-T-FD	400mW 400mW 400mW 400mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial HHL-01 9-Pin 14-Pin	× √ √ √	× × × ×	× × × ×	× × × √
405nm	STW-LR-405-300m-50M STW-LR-405-300m-M STW-LR-405-300m-M-H-T STW-LR-405-400m-50M STW-LR-405-450m-M STW-LR-405-450m-M-H-T STW-LR-405-450m-M-H9-T STW-LR-405-450m-M-H14-T-FD STW-LR-405-550m-M STW-LR-405-550m-M-H-T STW-LR-405-550m-M-H9-T STW-LR-405-550m-M-H14-T-FD STW-LR-405-001-M-H9-T STW-LR-405-001-M-H14-T-FD STW-LR-405-002-M-H9-T STW-LR-405-002-M-H14-T-FD	300mW 300mW 300mW 400mW 450mW 450mW 450mW 450mW 550mW 550mW 550mW 550mW 1W 1W 2W 2W	50um/0.12 105um/0.22 105um/0.22 50um/0.12 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22	SC/FC/SMA905/ST SC/FC/SMA905/ST FC/SMA905/ST SC/FC/SMA905/ST SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905 SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905 SMA905 SMA905 SMA905 SMA905	Coaxial Coaxial HHL-01 Coaxial Coaxial HHL-01 9-Pin 14-Pin Coaxial HHL-01 9-Pin 14-Pin 9-Pin 14-Pin 9-Pin 14-Pin	× × √ × × √ √ √ × √ √ √ √ √ √ √	× × × × × × × × × × × × × × × ×	× × × × × × × × × × × × × × × ×	× × × × × × × √ × × × √ × √ × √
410nm	STW-LR-410-300m-M-H9-T STW-LR-410-300m-M-H14-T-FD	300mW 300mW	105um/0.22 105um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	× ×	× ×	× √
420nm	STW-LR-420-800m-M STW-LR-420-800m-M-H-T STW-LR-420-800m-M-H9-T STW-LR-420-800m-M-H14-T-FD	800mW 800mW 800mW 800mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial HHL-01 9-Pin 14-Pin	× √ √ √	× × × ×	× × × ×	× × × √
435nm	STW-LR-435-003-200M-H9-T-PD STW-LR-435-003-200M-H14-T-PD-FD	3W 3W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× 〇	× √
445nm	STW-LR-445-050m-M STW-LR-445-050m-M-H8-T	50mW 50mW	105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin	× √	× ×	× ×	× ×
445nm	STW-LR-445-080m-M STW-LR-445-080m-M-H8-T STW-LR-445-800m-M STW-LR-445-800m-M-H-T STW-LR-445-001-M STW-LR-445-001-M-H-T STW-LR-445-3500m-200M-H9-T-PD STW-LR-445-3500m-200M-H14-T-PD-A-FD STW-LR-445-010-200M-H-PD STW-LR-445-010-200M-H-PD-A-FD STW-LR-445-020-400M-H-PD STW-LR-445-020-400M-H-PD-A-FD	80mW 80mW 800mW 800mW 1W 1W 3.5W 3.5W 10W 10W 20W 20W	105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 400um/0.22 400um/0.22	FC/SMA905/ST FC/SMA905/ST SC/FC/SMA905/ST FC/SMA905/ST SC/FC/SMA905/ST FC/SMA905/ST SMA905 SMA905 SMA905 SMA905 SMA905 SMA905	Coaxial 8-Pin Coaxial HHL-01 Coaxial HHL-01 9-Pin 14-Pin P4 P4 P5 P5	× √ × √ × √ √ √ 〇 〇 〇 〇	× × × × × × √ √ √ √ √ √	× × × × × × × √ × √ × √	× × × × × × × √ × √ × √
455nm	STW-LR-455-004-200M-H9-T-PD STW-LR-455-004-200M-H14-T-PD-A-FD	4W 4W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
465nm	STW-LR-465-002-200M-H9-T-PD STW-LR-465-002-200M-H14-T-PD-FD STW-LR-465-007-200M-H-PD STW-LR-465-007-200M-H-PD-FD STW-LR-465-015-400M-H-PD STW-LR-465-015-400M-H-PD-FD	2W 2W 7W 7W 15W 15W	200um/0.22 200um/0.22 200um/0.22 200um/0.22 400um/0.22 400um/0.22	SMA905 SMA905 SMA905 SMA905 SMA905 SMA905	9-Pin 14-Pin P4 P4 P5 P5	√ √ 〇 〇 〇 〇	√ √ √ √ √ √	× × × × × ×	× √ × √ × √
480nm	STW-LR-480-050m-M STW-LR-480-050m-M-H8-T STW-LR-480-080m-M STW-LR-480-080m-M-H8-T	50mW 50mW 80mW 80mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin Coaxial 8-Pin	× √ × √	× × × ×	× × × ×	× × × ×
488nm	STW-LR-488-050m-M STW-LR-488-050m-M-H8-T STW-LR-488-080m-M STW-LR-488-080m-M-H8-T	50mW 50mW 80mW 80mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin Coaxial 8-Pin	× √ × √	× × × ×	× × × ×	× × × ×
495nm	STW-LR-495-050m-M STW-LR-495-050m-M-H8-T STW-LR-495-080m-M STW-LR-495-080m-M-H8-T	50mW 50mW 80mW 80mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin Coaxial 8-Pin	× √ × √	× × × ×	× × × ×	× × × ×
505nm	STW-LR-505-030m-M STW-LR-505-030m-M-H8-T STW-LR-505-050m-M STW-LR-505-050m-M-H8-T	30mW 30mW 50mW 50mW	105um/0.22 105um/0.22 105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin Coaxial 8-Pin	× √ × √	× × × ×	× × × ×	× × × ×
520nm	STW-LR-520-010m-M-PD STW-LR-520-050m-M-PD	10mW 50mW	105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST	Coaxial Coaxial	× ×	√ √	× ×	× ×
520nm	STW-LR-520-050m-M-H8-T-PD STW-LR-520-080m-M STW-LR-520-080m-M-H-T STW-LR-520-150m-M STW-LR-520-150m-M-H-T STW-LR-520-200m-M STW-LR-520-200m-M-H-T STW-LR-520-800m-200M-H9-T-PD STW-LR-520-800m-200M-H14-T-PD-FD STW-LR-520-1200m-200M-H9-T-PD STW-LR-520-1200m-200M-H14-T-PD-FD STW-LR-520-002-200M-H-PD STW-LR-520-002-200M-H-PD-FD STW-LR-520-005-400M-H-PD STW-LR-520-005-400M-H-PD-FD	50mW 80mW 80mW 150mW 150mW 200mW 200mW 800mW 800mW 1.2W 1.2W 2W 2W 5W 5W	105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 400um/0.22 400um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST SMA905 SMA905 SMA905 SMA905 SMA905 SMA905 SMA905 SMA905	8-Pin Coaxial HHL-01 Coaxial HHL-01 Coaxial HHL-01 9-Pin 14-Pin 9-Pin 14-Pin P4 P4 P5 P5	√ × √ × √ × √ √ √ √ √ 〇 〇 〇 〇	√ × × × × × × √ √ √ √ √ √ √ √	× × × × × × × × × × × × × × ×	× × × × × × × × √ × √ × √ × √
525nm	STW-LR-525-800m-200M-H9-T-PD STW-LR-525-800m-200M-H14-T-PD-FD STW-LR-525-1200m-200M-H9-T-PD STW-LR-525-1200m-200M-H14-T-PD-FD STW-LR-525-002-200M-H-PD STW-LR-525-002-200M-H-PD-FD STW-LR-525-005-400M-H-PD STW-LR-525-005-400M-H-PD-FD	800mW 800mW 1.2W 1.2W 2W 2W 5W 5W	200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 400um/0.22 400um/0.22	SMA905 SMA905 SMA905 SMA905 SMA905 SMA905 SMA905 SMA905	9-Pin 14-Pin 9-Pin 14-Pin P4 P4 P5 P5	√ √ √ √ 〇 〇 〇 〇	√ √ √ √ √ √ √ √	× × × × × × × ×	× √ × √ × √ × √
532nm	STW-LR-532-001-200M-H9-T-PD STW-LR-532-001-200M-H14-T-PD-FD	1W 1W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× ×	× √
630nm	STW-LR-630-300m-200M-H9-T-PD STW-LR-630-300m-200M-H14-T-PD-FD	300mW 300mW	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× ×	× √
633nm	STW-LR-633-700m-200M-H9-T-PD STW-LR-633-700m-200M-H14-T-PD-FD	700mW 700mW	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× ×	× √
635nm	STW-LR-635-005m-M-PD STW-LR-635-010m-M-PD STW-LR-635-030m-M-PD STW-LR-635-120m-M-PD STW-LR-635-120m-M-H8-T-PD STW-LR-635-300m-M STW-LR-635-300m-M-H-T STW-LR-635-001-200M-H9-T-PD STW-LR-635-001-200M-H14-T-PD-FD	5mW 10mW 30mW 120mW 120mW 300mW 300mW 1W 1W	105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial Coaxial Coaxial Coaxial 8-Pin Coaxial HHL-01 9-Pin 14-Pin	× × × × √ × √ √ √	√ √ √ √ √ × × √ √	× × × × × × × × ×	× × × × × × × × √
635nm	STW-LR-635-1500m-200M-H9-T-PD STW-LR-635-1500m-200M-H14-T-PD-FD	1.5W 1.5W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× ×	× √
645nm	STW-LR-645-1500m-200M-H9-T-PD STW-LR-645-1500m-200M-H14-T-PD-FD	1.5W 1.5W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× ×	× √
653nm	STW-LR-653-700m-200M-H9-T-PD STW-LR-653-700m-200M-H14-T-PD-FD	700mW 700mW	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× ×	× √
660nm	STW-LR-660-030m-M-PD STW-LR-660-050m-M-PD STW-LR-660-050m-M-H8-T-PD STW-LR-660-080m-M-PD STW-LR-660-080m-M-H8-T-PD STW-LR-660-120m-M STW-LR-660-120m-M-H8-T STW-LR-660-800m-200M-H9-T-PD STW-LR-660-800m-200M-H14-T-PD-FD STW-LR-660-001-200M-H9-T-PD STW-LR-660-001-200M-H14-T-PD-FD STW-LR-660-002-200M-H9-T-PD STW-LR-660-002-200M-H14-T-PD-FD	30mW 50mW 50mW 80mW 80mW 120mW 120mW 800mW 800mW 1W 1W 2W 2W	105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST SMA905 SMA905 SMA905 SMA905 SMA905 SMA905	Coaxial Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin 9-Pin 14-Pin 9-Pin 14-Pin 9-Pin 14-Pin	× × √ × √ × √ √ √ √ √ √ √	√ √ √ √ √ × × √ √ √ √ √ √	× × × × × × × × × × × × ×	× × × × × × × × √ × √ × √
670nm	STW-LR-670-005m-M-PD STW-LR-670-120m-M STW-LR-670-120m-M-H8-T	5mW 120mW 120mW	105um/0.22 105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST	Coaxial Coaxial 8-Pin	× × √	√ × ×	× × ×	× × ×
685nm	STW-LR-685-030m-M-PD STW-LR-685-030m-M-H8-T-PD	30mW 30mW	105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin	× √	√ √	× ×	× ×
690nm	STW-LR-690-800m-200M-H9-T-PD STW-LR-690-800m-200M-H14-T-PD-FD STW-LR-690-1500m-200M-H9-T-PD STW-LR-690-1500m-200M-H14-T-PD-FD	800mW 800mW 1.5W 1.5W	200um/0.22 200um/0.22 200um/0.22 200um/0.22	SMA905 SMA905 SMA905 SMA905	9-Pin 14-Pin 9-Pin 14-Pin	√ √ √ √	√ √ √ √	× × × ×	× √ × √
760nm	STW-LR-760-1500m-200M-H9-T-PD STW-LR-760-1500m-200M-H14-T-PD-FD	1.5W 1.5W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	〇 〇	× √
770nm	STW-LR-770-003-200M-H9-T-PD STW-LR-770-003-200M-H14-T-PD-FD	3W 3W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	〇 〇	× √
785nm	STW-LR-785-050m-M-PD STW-LR-785-050m-M-H8-T-PD STW-LR-785-080m-M-PD STW-LR-785-080m-M-H8-T-PD STW-LR-785-003-200M-H9-T-PD STW-LR-785-003-200M-H14-T-PD-A-FD	50mW 50mW 80mW 80mW 3W 3W	105um/0.22 105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial 8-Pin Coaxial 8-Pin 9-Pin 14-Pin	× √ × √ √ √	√ √ √ √ √ √	× × × × × √	× × × × × √
808nm	STW-LR-808-150m-M-PD STW-LR-808-150m-M-H8-T-PD STW-LR-808-180m-M-PD STW-LR-808-180m-M-H8-T-PD STW-LR-808-300m-200M-PD STW-LR-808-300m-200M-H8-T-PD STW-LR-808-005-200M-H9-T-PD STW-LR-808-005-200M-H14-T-PD-A-FD STW-LR-808-007-200M-H9-T-PD STW-LR-808-007-200M-H14-T-PD-A-FD	150mW 150mW 180mW 180mW 300mW 300mW 5W 5W 7W 7W	105um/0.22 105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST SMA905 SMA905 SMA905 SMA905	Coaxial 8-Pin Coaxial 8-Pin Coaxial 8-Pin 9-Pin 14-Pin 9-Pin 14-Pin	× √ × √ × √ √ √ √ √	√ √ √ √ √ √ √ √ √ √	× × × × × × × √ × √	× × × × × × × √ × √
820nm	STW-LR-820-150m-M-PD STW-LR-820-150m-M-H8-T-PD	150mW 150mW	105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin	× √	√ √	× ×	× ×
830nm	STW-LR-830-150m-M-PD STW-LR-830-150m-M-H8-T-PD STW-LR-830-002-200M-H9-T-PD STW-LR-830-002-200M-H14-T-PD-A-FD	150mW 150mW 2W 2W	105um/0.22 105um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial 8-Pin 9-Pin 14-Pin	× √ √ √	√ √ √ √	× × × √	× × × √
850nm	STW-LR-850-120m-M-PD STW-LR-850-120m-M-H8-T-PD	120mW 120mW	105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin	× √	√ √	× ×	× ×
880nm	STW-LR-880-005m-M-PD STW-LR-880-002-200M-H9-T-PD STW-LR-880-002-200M-H14-T-PD-A-FD	5mW 2W 2W	105um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST SMA905 SMA905	Coaxial 9-Pin 14-Pin	× √ √	√ √ √	× × √	× × √
905nm	STW-LR-905-120m-M-PD STW-LR-905-120m-M-H8-T-PD	120mW 120mW	105um/0.22 105um/0.22	FC/SMA905/ST FC/SMA905/ST	Coaxial 8-Pin	× √	√ √	× ×	× ×
915nm	STW-LR-915-010-200M-H9-T-PD STW-LR-915-010-200M-H14-T-PD-A-FD	10W 10W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
940nm	STW-LR-940-150m-M-PD STW-LR-940-150m-M-H8-T-PD STW-LR-940-010-200M-H9-T-PD STW-LR-940-010-200M-H14-T-PD-A-FD	150mW 150mW 10W 10W	105um/0.22 105um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial 8-Pin 9-Pin 14-Pin	× √ √ √	√ √ √ √	× × × √	× × × √
980nm	STW-LR-980-030m-M-PD STW-LR-980-100m-M-PD STW-LR-980-100m-M-H8-T-PD STW-LR-980-010-200M-H9-T-PD STW-LR-980-010-200M-H14-T-PD-A-FD	30mW 100mW 100mW 10W 10W	105um/0.22 105um/0.22 105um/0.22 200um/0.22 200um/0.22	FC/SMA905/ST FC/SMA905/ST FC/SMA905/ST SMA905 SMA905	Coaxial Coaxial 8-Pin 9-Pin 14-Pin	× × √ √ √	√ √ √ √ √	× × × × √	× × × × √
1064nm	STW-LR-1064-007-200M-H9-T-PD STW-LR-1064-007-200M-H14-T-PD-A-FD	7W 7W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1310nm	STW-LR-1310-001-200M-H9-T-PD STW-LR-1310-001-200M-H14-T-PD-A-FD	1W 1W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1330nm	STW-LR-1330-001-200M-H9-T-PD STW-LR-1330-001-200M-H14-T-PD-A-FD	1W 1W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1450nm	STW-LR-1450-002-200M-H9-T-PD STW-LR-1450-002-200M-H14-T-PD-A-FD	2W 2W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1470nm	STW-LR-1470-002-200M-H9-T-PD STW-LR-1470-002-200M-H14-T-PD-A-FD STW-LR-1470-2500m-200M-H9-T-PD STW-LR-1470-2500m-200M-H14-T-PD-A-FD	2W 2W 2.5W 2.5W	200um/0.22 200um/0.22 200um/0.22 200um/0.22	SMA905 SMA905 SMA905 SMA905	9-Pin 14-Pin 9-Pin 14-Pin	√ √ √ √	√ √ √ √	× √ × √	× √ × √
1490nm	STW-LR-1490-2500m-200M-H9-T-PD STW-LR-1490-2500m-200M-H14-T-PD-A-FD	2.5W 2.5W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1530nm	STW-LR-1530-1500m-200M-H9-T-PD STW-LR-1530-1500m-200M-H14-T-PD-A-FD	1.5W 1.5W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1550nm	STW-LR-1550-1500m-200M-H9-T-PD STW-LR-1550-1500m-200M-H14-T-PD-A-FD STW-LR-1550-2500m-200M-H9-T-PD STW-LR-1550-2500m-200M-H14-T-PD-A-FD	1.5W 1.5W 2.5W 2.5W	200um/0.22 200um/0.22 200um/0.22 200um/0.22	SMA905 SMA905 SMA905 SMA905	9-Pin 14-Pin 9-Pin 14-Pin	√ √ √ √	√ √ √ √	× √ × √	× √ × √
1570nm	STW-LR-1570-2500m-200M-H9-T-PD STW-LR-1570-2500m-200M-H14-T-PD-A-FD	2.5W 2.5W	200um/0.22 200um/0.22	SMA905 SMA905	9-Pin 14-Pin	√ √	√ √	× √	× √
1920nm	STW-LR-1920-400m-200M-H9-T	400mW	200um/0.22	SMA905	9-Pin	√	×	×	×

Note: √:Yes, ○:Optional, ×:No.  Please contact us for the dimensions and drawings.

STC Series Fiber-coupled Laser Diodes

1. Fiber Coupled Laser Diode Module

• Wavelength range 405-1064 nm

• High output power up to 4000W@ 915/980 nm

• Are designed for fiber laser, solid state laser pumping, direct diode material processing, surgical lasers and medical therapeutics

Part Number	Wavelength (nm)	Power (W)	Fiber Type (MM fiber)
STC-LDM-405-10	405 nm	10	800 µm
STC-LDM-405-35	405 nm	35	800 µm
STC-LDM-444-10	444 nm	10	100, 200, 400µm
STC-LDM-444-25	444 nm	25	100, 200, 400µm
STC-LDM-450-6	450 nm	6	105 µm
STC-LDM-450-9	450 nm	9	200 µm
STC-LDM-450-12	450 nm	12	200 µm
STC-LDM-450-50	450 nm	50	400 µm
STC-LDM-450-120	450 nm	120	800 µm
STC-LDM-520-30	520 nm	30	400 µm
STC-LDM-520-70	520 nm	70	800 µm
STC-LDM-638-15	638 nm	15	400 µm
STC-LDM-638-35	638 nm	35	800 µm
STC-LDM-793-8	793 nm	8	105 µm
STC-LDM-793-16	793 nm	16	105 µm
STC-LDM-793-30	793 nm	30	105 µm
STC-LDM-808-7	808 nm	7	105 µm
STC-LDM-808-15	808 nm	15	400 µm
STC-LDM-808-20	808 nm	20	400 µm
STC-LDM-808-30	808 nm	30	400 µm
STC-LDM-808-40	808 nm	40	200 µm
STC-LDM-808-50	808 nm	50	400 µm
STC-LDM-808-60	808 nm	60	200 µm
STC-LDM-808-100	808 nm	100	400 µm
STC-LDM-808-150	808 nm	150	400 µm
STC-LDM-878.6-25	878.6 nm	25	200 µm
STC-LDM-878.6-30	878.6 nm	30	400 µm
STC-LDM-878.6-60	878.6 nm	60	400 µm
STC-LDM-878.6-72	878.6 nm	72	400 µm
STC-LDM-878.6-75	878.6 nm	75	400 µm
STC-LDM-878.6-120	878.6 nm	120	400 µm
STC-LDM-915-10	915 nm	10	105 µm
STC-LDM-915-20	915 nm	20	105 µm
STC-LDM-915-30	915 nm	30	105 µm
STC-LDM-915-50	915 nm	50	200 µm
STC-LDM-915-80	915 nm	80	105 µm
STC-LDM-915-150	915 nm	150	105 µm
STC-LDM-915-260	915 nm	260	200 µm
STC-LDM-925-200	925 nm	200	135 µm
STC-LDM-976-10	976 nm	10	105 µm
STC-LDM-976-20	976 nm	20	105 µm
STC-LDM-976-27	976 nm	27	105 µm
STC-LDM-976-60	976 nm	60	105 µm
STC-LDM-976-100	976 nm	100	105 µm
STC-LDM-976-130	976 nm	130	105 µm
STC-LDM-976-140	976 nm	140	105 µm
STC-LDM-980-15	980 nm	15	200 µm
STC-LDM-980-35	980 nm	35	300 µm
STC-LDM-1064-10	1064 nm	10	200 µm
STC-LDM-1470-15	1470 nm	15	200 µm

Detailed Specifications of STC-LDM-808-150-C2

	Parameter	Symbol	Typical	Unit
Optical	CW Out Power	Pop	150	W
	Center Wavelength		808±10	nm
	Spectral Width (90% of Power)	△	<10.0	nm
	Wavelength Shift with Temperature	△/△T	0.35	nm / ℃
Electrical	Threshold Current	Ith	1.9	A
	Operating current	Iop	12	A
	Operating Voltage	Vop	30	V
	Slope Efficiency	η	14.9	W/A
	Power Conversion Efficiency	ηep	42	%
Fiber	Core Diameter	dcore	400	μm
	Cladding Diameter	dclad	440	μm
	Buffer Diameter	dbuffer	700	μm
	Numerical Aperture	NA	0.22	-
	Fiber Length	L	1.0	m
	Connector	-	SMA905,FC	-
Accessories	Aiming Laser(650nm)	-	None	-
	Monitor Photodiode	-	None	-
	Dimension		142x72x29.5	mm

Detailed Specifications of STC-LDM-980-15

Optical	Unit	Typical Value
CW Output Power	W	15
Center Wavelength	nm	980±10
Spectral Width (90% of Power)	nm	4
Wavelength Shift with Temperature	nm / ℃	0.3
Electrical
Threshold Current	A	0.7
Operating Current	A	9.0
Operating Voltage	V	3.6
Slope Efficiency	W / A	1.8
Power Conversion Efficiency	%	46
Aiming Laser*
CW Output Power	mW	1
Center Wavelength	nm	650±10
Operating Current	mA	<30
Operating Voltage	V	~2.2
Fiber**
Fiber Core Diameter	m	200
Fiber Cladding Diameter	m	220
Fiber Buffer Diameter	m	500
Numerical Aperture	-	0.22
Fiber Length	m	1.0
Fiber Connector	-	SMA905
Dimension	mm	52x35x17.2

• *Optional built-in constant power circuit, 5V power supply needed. Optional constant voltage green aiming beam.

• **Customized fiber and connector available.

2. SM/ PM/ MM Pigtailed Laser Diodes

• Wavelength range 405-1550 nm

• Output power range 1-5000mW

• Fiber coupled Fabry Perot (FP) laser diodes

• Optional FC/PC or FC/ APC connector

• Distributed feedback (DFB)

Wavelength (nm)	Power (mW)	Laser Type	Package
405 nm	1-50	SM / PM  fiber	Coaxial
405 nm	5-200	MM fiber	Coaxial
635 nm	1-100	SM / PM fiber	Coaxial
635 nm	5-350	MM fiber	Coaxial
650 nm	5-100	SM / PM fiber	Coaxial
785 nm	20-50	SM / PM fiber	Coaxial
785 nm	50-80	MM fiber	Coaxial
808 nm	30	SM / PM fiber	Coaxial
808 nm	100-150	MM fiber	Coaxial
880 nm	1-2	SM / PM fiber	Coaxial
880 nm	5	MM fiber	Coaxial
905 nm	1-30	SM / PM fiber	Coaxial
940 nm	30	SM / PM fiber	Coaxial
980 nm	5-15	SM fiber	Coaxial
980 nm	20-100	MM fiber	Coaxial
1064 nm	5-50	SM / PM fiber	Coaxial
1064 nm	20	MM fiber	Coaxial
1310 nm	2-10	SM / PM fiber	Coaxial / Pigtailed
1310 nm	10	MM fiber	Coaxial / Pigtailed
1550 nm	2-10	SM / PM fiber	Coaxial / Pigtailed
1550 nm	10	MM fiber	Coaxial / Pigtailed

Detailed Specifications of Partial SM/ PM/ MM Pigtailed Laser Diodes

(1) SM/PM Pigtailed Laser Diode at 650nm

• with SM Fiber

• with PM Fiber

• Offer Customized Products

• Offer OEM Coupling Service

Part Number	STC-SLDP-650-5-SM	STC-SLDP-650-10-SM	STC-SLDP-650-20-SM	STC-SLDP-650-20-SM-9	STC-SLDP-650-30-SM
Center Wavelength@25°C (nm)	650nm	650nm	650nm	650nm	650nm
Power (mW)	5	10	20	20	30
Package	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial
Tolerance (nm)	5	5	5	5	5
Fiber Type (80cm length)	4µm SM fiber	4µm SM fiber	4µm SM fiber	9µm SM fiber	4µm SM  fiber
Fiber Connector	FC/SC/SMA905	FC/SC/SMA905	FC/SC/SMA905	FC/SC/SMA905	FC/SC/SMA905
Threshold Current (Typ.)	40mA	45mA	40mA	45mA	50mA
Operating Current (Typ.)	90mA	100mA	170mA	150mA	220mA
Operating Voltage	2.7V	2.7V	2.4V	2.4V	2.5V
Reverse Voltage	2.0V	2.0V	2.0V	2.0V	2.0V
Operating Temperature	-10-+70°C	-10-+60°C	-10-+60°C	-10-+60°C	-10-+60°C
Storage Temperature	-40-+85°C	-40-+85°C	-40-+85°C	-40-+85°C	-40-+85°C
Lead Soldering Temperature	260°C	260°C	260°C	260°C	260°C

Part Number	STC-SLDP-650-50-SM	STC-SLDP-650-50-SM-9	STC-SLDP-650-50-PM		STC-SLDP-650-100-SM	STC-SLDP-650-100-SM-9	STC-SLDP-650-100-PM
Center Wavelength@25°C (nm)	650nm	650nm	650nm	650nm		650nm	650nm
Power (mW)	50	50	50		100	100	100
Package	Coaxial	Coaxial	Coaxial		Coaxial	Coaxial	Coaxial
Tolerance (nm)	5	5	5		5	5	5
Fiber Type (80cm length)	4µm SM fiber	9µm SM fiber	PM UV fiber		4µm SM fiber	9µm SM fiber	PM UV fiber
Fiber Connector	FC/SC/SMA905	FC/SC/SMA905	FC/SC/SMA905		FC/SC/SMA905	FC/SC/SMA905	FC/SC/SMA905
Threshold Current (Typ.)	50mA	50mA	55mA		55mA	55mA	55mA
Operating Current (Typ.)	220mA	200mA	200mA		260mA	260mA	260mA
Operating Voltage	2.6V	2.5V	2.5V		2.7V	2.7V	2.7V
Reverse Voltage	2.0V	2.0V	2.0V		2.0V	2.0V	2.0V
Operating Temperature	-10-+50°C	-10-+60°C	-10-+50°C		-10-+50°C	-10-+50°C	-10-+50°C
Storage Temperature	-40-+85°C	-40-+85°C	-40-+85°C		-40-+85°C	-40-+85°C	-40-+85°C
Lead Soldering Temperature	260°C	260°C	260°C		260°C	260°C	260°C

(2) SM/PM Pigtailed Laser Diode at 980nm

980nm Coaxial Package Diode Laser

• with SM Fiber

• with PM Fiber

• Built-in PD

• Offer Customized Products

• Offer OEM Coupling Service

Part Number	STC-SLDP-980-5-SM	STC-SLDP-980-10-SM	STC-SLDP-980-10-SM-9	STC-SLDP-980-15-SM
Center Wavelength@25°C (nm)	980nm
Power (mW)	5	10	10	15
Package	Coaxial
Tolerance (nm)	5
Fiber Type (80cm length)	6µm SM fiber	6µm SM fiber	6µm SM fiber	9µm SM fiber
Fiber Connector	FC/SC/SMA905
Threshold Current (Typ.)	10mA	15mA	10mA	15mA
Operating Current (Typ.)	75mA	80mA	75mA	80mA
Operating Voltage	1.5V	1.6V	1.5V	1.6V
PD	Built-in
Monitor Current	0.5mA	0.5mA	0.5mA	0.5mA
PD Reverse Voltage	30V	30V	30V	30V
Reverse Voltage	2.0V	2.0V	2.0V	2.0V
Operating Temperature	-10-+40°C	-10-+40°C	-10-+40°C	-10-+40°C
Storage Temperature	-15-+85°C	-15-+85°C	-15-+85°C	-15-+85°C
Lead Soldering Temperature (10 sec.)	250°C

(3) MM Pigtailed Laser Diode at 980nm (980nm Coaxial Package Diode Laser)

• with MM Fiber

• Offer Customized Products

• Offer OEM Coupling Service

Part Number	STC-MLDP-980-20-MM	STC-MLDP-980-100-MM
Center Wavelength@25°C (nm)	980nm	980nm
Spectral Width (FWHM)	2.0nm	2.0nm
Power (mW)	20	100
Package	Coaxial	Coaxial
Tolerance (nm)	10	10
Fiber Type (80cm length)	MM fiber	MM fiber
Fiber Connector	FC/SC/SMA905	FC/SC/SMA905
Threshold Current (Typ.)	10mA	55mA
Operating Current (Typ.)	75mA	350mA
Operating Voltage	1.5V	1.6V
Reverse Voltage	2.0V	2.0V
Operating Temperature	-10-+40°C	-10-+40°C
Storage Temperature	-15-+85°C	-15-+85°C
Lead Soldering Temperature	260°C(10 sec.)	260°C(10 sec.)

STK Series Fiber Coupled Laser Diodes (<500W)

Our STK series fiber-coupled laser diodes can be pided into two categories: single emitter laser diodes and multi-single emitter laser diodes.

1. Single Emitter Laser Diodes

Single emitter laser diodes can provide multi-wavelength covering 405nm to 976nm, output power from 2mW to 10W. Mainly used in the area of fiber laser pumping ,computer to plate(CTP), DPSS laser pumping, medical use, aiming beam, industry etc. For different application, varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available.

2. Multi-single Emitter Laser Diodes

Multiple single emitter laser diodes build upon the foundation of multi-emitter coupling technology, to obtain high power and high brightness diode laser. Varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available. Multi single emitter laser diodes have great advantages in high reliability and high performance. In multi-single emitter laser diodes, we have patented many improved optical designs. And these compact packages and commercially recognized formats allow easy integration into the existing products. Multi single emitter diode lasers include wavelengths from 635nm-1064nm, output power from 1.6W-500W.

405nm	445/450nm	520nm	635nm	785nm	793nm	808nm
160mW	800mW 3W 20W 50W    150W    200W    300W    500W	2mW 5mW 10mW	2mW 20mW 400mW 1.8W 5W	600mW	4W 8W 12W 16W 30W 50W 80W 140W 180W	4W 8W 10W 15W 20W 25W 30W 30W(STH) 40W 55W 60W 70W 150W
830nm	878.6nm	888nm	915nm	940nm	976nm	976nm wavelength stabilized	1064nm
600mW 1W 2W	30W(STH) 65W 65W(STH) 80W(STH) 120W 120W(STH) 175W(STH)	40W 80W 120W	10W 12W 30W 35W 70W 100W 130W 160W 180W 300W    370W 500W	10W 20W 30W 70W 150W 200W 500W	10W 15W 20W 30W 70W 150W 200W 330W 500W	3W 9W 18W 27W 50W 60W 100W 130W 140W 180W	10W 15W 20W

3. List of Fiber-coupled Laser Diodes

Wavelength	Power	Fiber	Package	Type
405nm	160mW	40μm/0.22	Coaxial
445nm	3W	105μm/0.22
445nm	20W	105μm/0.22
445nm	50W	200UM/0.22
445nm	200W	200um/0.22
450nm	800mW	105μm/0.22	14 pin Butterfly
520nm	2mW	4μm/0.13	Coaxial
520nm	5mW	4μm/0.13	Coaxial
520nm	10mW	105μm/0.22	Coaxial
635nm	20mW	4μm/0.13	Coaxial	Single Emitter, SM
635nm	50mW	105μm/0.22	Coaxial	Single Emitter, MM
635nm	400mW	105µm/0.22	Coaxial	Single Emitter, MM
635nm	1.8W	105µm/0.22	16 pin	Multi-single Emitter, MM
635nm	5W	105µm/0.22	8pin module	Multi-single Emitter, MM
650nm	2mW	4μm/0.13	Coaxial	Single Emitter, SM
650nm	4mW	105μm/0.22	Coaxial	Single Emitter, MM
660nm	5mW-30mW	4μm/0.13	Coaxial	Single Emitter, MM
660nm	10mW-60mW	105μm/0.22	Coaxial	Single Emitter, MM
785nm	600mW	105μm/0.22	14 pin butterfly	Wavelength stabilized
793nm	4W	105μm/0.22	2 pin
793nm	8W	105μm/0.22	2 pin module
793nm	12W	105μm/0.22	2pin module
793nm	16W	105μm/0.22	4pin module
793nm	30W	105μm/0.22	6pin module
793nm	40W	200μm/0.22	2pin module
793nm	50W	105μm/0.22	6pin module
793nm	80W	200μm/0.22	6pin module
793nm	140W	200um/0.22	2pin
793nm	180W	200um/0.22	2pin
808nm	4W	105µm/ 0.22	6pin	Single Emitter
808nm	4W	105µm/ 0.22	11pin	Single Emitter
808nm	4W	400µm/0.22	11pin (Detachable)	Single Emitter
808nm	7W	200µm/0.22	15pin	Single Emitter
808nm	7W	200µm/0.22	14pin (Detachable)	Single Emitter
808nm	8W	200µm/0.22	15pin	Single Emitter
808nm	8W	200μm/400µm/0.22	14pin (Detachable)	Single Emitter
808nm	13W	200μm/0.22	15pin	Multi-single Emitter
808nm	15W	200μm/0.22	15pin	Multi-single Emitter
808nm	25W	400μm/0.22	4pin	Multi-single Emitter
808nm	30W	400μm/0.22	4pin	Multi-single Emitter
808nm	30W(STH)	400μm/0.22
808nm	35W	105μm/0.22	6pin	Multi-single Emitter
808nm	40W	400μm/0.22	6pin	Multi-single Emitter
808nm	50W	400μm/0.22	6pin	Multi-single Emitter
808nm	60W	400μm/0.22	6pin	Multi-single Emitter
808nm	60W	106.5μm/0.22	6pin	Multi-single Emitter
808nm	150W	600μm/0.22	2pin	Multi-single Emitter
808nm	6W,8W,10W,15W	400μm/0.22	module	Fiber-bundled module
830nm	600mW	105um/0.22
830nm	1W	50μm/0.14	2pin
830nm	2W	50μm/0.14	2pin
878.6nm	30W(STH)	400um/0.22
878.6nm	65W	200um/0.22		Wavelength-stablized
878.6nm	65W(STH)	400um/0.22
878.6nm	80W(STH)	400um/0.22
878.6nm	120W(STH)	400um/0.22
878.6nm	175W(STR)	400um/0.22
888nm	80W	400μm/0.22	module	Fiber-bundled module
888nm	120W	400μm/0.22	module	Fiber-bundled module
915nm	11W	105μm/0.22	2pin	Single Emitter
915nm	20W	105μm/0.22	2pin	Multi-single Emitter
915nm	25W	105μm/0.15	2pin	Multi-single Emitter
915nm	30W	105μm/0.22	2pin	Multi-single Emitter
915nm	65W	105μm/0.15	2pin	Multi-single Emitter
915nm	70W	105μm/0.22	6pin	Multi-single Emitter
915nm	110W	105μm/0.15	6pin	Multi-single Emitter
915nm	150W	105μm/0.22	6pin	Multi-single Emitter
915nm	158W	105μm/0.22	6pin	Multi-single Emitter
915nm	180W	106.5um/0.22	2pin	Multi-single Emitter
915nm	200W	200μm/0.22	6pin	Multi-single Emitter
915nm	300W	200μm/0.22	2PIN	Multi-single Emitter
915nm	400W	200um/0.22	2PIN	Multi-single Emitter
940nm	10W	105μm/0.22	2pin	Multi-single Emitter
940nm	20W	105μm/0.22	2pin	Multi-single Emitter
940nm	25W	105μm/0.15	2pin	Multi-single Emitter
940nm	30W	105μm/0.22	2pin	Multi-single Emitter
940nm	70W	105μm/0.22	6pin	Multi-single Emitter
940nm	200W	135μm/0.22	6pin	Multi-single Emitter
940nm	200W	200μm/0.22	module	Fiber-bundled Modules
965nm	11W	105μm/0.22	2pin	Single emitter
965nm	20W	105μm/0.22	2pin	Multi-single Emitter
965nm	25W	105μm/0.15	2pin	Multi-single Emitter
965nm	30W	105μm/0.22	2pin	Multi-single Emitter
965nm	70W	105μm/0.22	6pin	Multi-single Emitter
965nm	200W	200μm/0.22	6pin	Multi-single Emitter
976nm	4W	105μm/0.22	6 pin	Single emitter
976nm	4W	105μm/0.22	9pin	Single emitter
976nm	4W	200μm/0.22	9 pin (Detachable)	Single emitter
976nm	4W	105μm/0.22	11 pin	Single emitter
976nm	4W	200μm/0.22	11pin (Detachable)	Single emitter
976nm	10W	200μm/0.22	11 pin (detachable)	Single emitter
976nm	15W	200μm/0.22	10pin	Multi-single emitter
976nm	20W	105μm/0.22	2pin	Multi-single Emitter
976nm	25W	105μm/0.15	2pin	Multi-single Emitter
976nm	30W	105μm/0.22	2pin	Multi-single Emitter
976nm	60W	105μm/0.15	2pin	Multi-single Emitter
976nm	70W	105μm/0.22	6pin	Multi-single Emitter
976nm	200W	200μm/0.22	6pin	Multi-single Emitter
976nm	3W	105μm/0.22	2pin	Wavelength stabilized series
976nm	9W	105μm/0.22	2pin	Wavelength stabilized series
976nm	18W	105μm/0.22	2pin	Wavelength stabilized series
976nm	27W	105μm/0.22	4pin	Wavelength stabilized series
976nm	50W	105μm/0.15	6pin	Wavelength stabilized series
976nm	60W	105μm/0.22	6pin	Wavelength stabilized series
976nm	80W	105μm/0.15	6pin	Wavelength stabilized series
976nm	150W	106.5μm/0.22	2pin	Wavelength stabilized series
976nm	180W	200μm/0.22	2pin	Wavelength stabilized series
976nm	200W	135um/0.22	2pin	Wavelength stabilized series
976nm	330W	200um/0.22	2pin	Wavelength stabilized series
976nm	10W,15W	400μm/0.22	module	Fiber-Bundled Module
976nm	980/808/15W	400μm/0.22	15pin	Double Wavelength series
1064nm	10W	200μm/0.22	15pin
1064nm	15W	200μm/0.22	15pin
1064nm	20W	200um/0.22	15pin

Ordering Information: STK-XXX-Y-ZZ-A-PPPPW-CC

• STK – STK series laser diodes

• XXX – laser wavelength, such as 405nm, 808nm,….

• Y – S with pilot beam; D without pilot beam

• ZZ – package, 01 means 2PIN, 03 means co-axial, 06 means 6PIN, 14 means 14PIN, 15 means 15PIN

• A – output method, F means fiber, C means insert, W means window, M means module

• PPPP -- output laser power

• CC - others

• For example, STK808D06F-2.00W, fiber coupled laser diode with 808nm wavelength, 6PIN package, 2W output.

4. Multi-wavelength Fiber-coupled Laser Diodes

Features:

• Multiple wavelength

• Multiple function

• 200um fiber detachable

Applications:

• Medical use

Our High Power Diode Laser Modules are manufactured by adopting specialized fiber-coupling techniques, resulting in volume products with a high efficiency, stability and superior beam quality. The products are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime.

Our research staffs are constantly improving and innovating the processing technology in the producing process, based on the professional knowledge and experience accumulated in long-terms. We are also continuously developing new products to meet customers’ specific needs.

To provide high quality products with reasonable price is our always goal.

List of Multi-wavelength Laser Diodes

Part number	Wavelength (nm)	Laser power (W)	Fiber (core/NA/connector)
STKA060D100F003G050ML	808/980/450/635nm	6W/10W/5W/0.3W	200µm/0.22/SMA905
STKA250D150F006G050MH	808/980/450/635nm	25W/15W/5W/0.6W	200µm/0.22/SMA905
STKA060D100E060F003ML	808/980/1064/635nm	6W/10W/6W/0.3W	200µm/0.22/SMA905
STKA250D150E100F006MH	808/980/1064/635nm	25W/15W/10W/0.6W	200µm/0.22/SMA905

OPERATING NOTES

• Avoid eye and skin exposure to direct radiation during operation.

• ESD precautions must be taken during storage, transportation and operation.

• Short-circuit is required between pins during storage and transportation.

• Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.

• Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.

• Use constant current power supply to avoid surge current during operation.

• Laser diode must be used according to the specifications.

• Laser diode must work with good cooling.

• Operation temperature ranges from 15℃ to 35℃.

• Storage temperature ranges from -20℃ to +70℃.

5. Details of STK Series Fiber-coupled Diode Lasers

445nm STK Series Fiber-coupled Blue Lasers

The STK series fiber-coupled blue lasers are manufactured by adopting specialized fiber-coupling techniques, resulting in high efficiency, stability and superior beam quality. The asymmetric radiation from the laser diode chips are coupled into an output fiber with small core diameter by using special micro optics. Their prices are reasonable and cheaper in the market.

Part Number		STK450FFBFN-0.8W	STK445F03N-3W	STK445FTRFN-20W	STK445FTRFN-50W	STK445FGRFN-200W
Optical Parameter	Laser power(W)	0.8	3	20	50	200
	Wavelength(nm)	450	445	445	445	445
	Tolerance(nm)	±10	±10	±10	±10	±10
	Spectral width(nm)	<6	<6	<6	<6	<8
	Temperature drift (nm/K)	0.3	0.1	0.1	0.1	0.1
Fiber Data	Core dia.(um)	105	105	105	200	200
	NA	0.22	0.22	0.22	0.22	0.22
	Fiber Length (m)	1.0	1.0	3.5	3.5	2.0
	Connector	NIL	SMA905	SMA905	SMA905	SMA905
Thermistor	K Ohm		option	10	10	10
Electrical Parameter	Operation(A)	1.0	3.0	2.5	2.8	2.5
	Threshold current(A)	0.25	0.3	0.3	0.3	0.3
	Operation voltage(V)	4.8	5.2	41	81	220
Others	Operation temp.(oC)	15-35	15-35	15-35	15-35	15-35
	Store temp.(oC)	-20-+70	-20-+70	-20-+70	-20-+70	-20-+70
	Dimension(mm)	30x12.7x14.8	20x13.6x16	143x68x37	143x68x37	246x204x47
Pilot			option

808nm Diode Lasers

Part Number		STK808S06F-2W	STK808S14F-2W	STK808D14C-2W-FS	STK808D06F-2W
Optical Parameter	Laser power(W)	2	2	2	2
	Wavelength(nm)	808	808	808	808
	Tolerance(nm)	±3, ±10	±3, ±10	±3, ±10	±3, ±10
	Spectral width(nm)	<3	<3	<3	<3
	Temperature drift (nm/K)	0.3	0.3	0.3	0.3
Fiber Data	Core dia.(um)	105, 200	105	200	105, 200
	NA	0.22	0.22	0.22	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	2.5	2.5	2.5	2.5
	Threshold current(A)	0.4	0.4	0.4	0.4
	Operation voltage(V)	1.9	1.9	1.8	1.9
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>10,000	>10,000	>10,000	>10,000
	Dimension(mm)	26x12.7x12.5	30x12.7x14.8	44.5x31.8x18	26x12.7x12.5
	Outlook	Fig. 1	Fig. 2	Fig. 3	Fig. 1
TEC Parameter	Max. current(A)		2.2	4
	Max. voltage(V)		8.7	9.8
Pilot beam				Yes	Yes

Part Number		STK808S06F-4W	STK808D14C-4W-FS	STK808S09F-4W	STK808D06F-4W
Optical Parameter	Laser power(W)	4	4	4	4
	Wavelength(nm)	808	808	808	808
	Tolerance(nm)	±3, ±10	±3, ±10	±3, ±10	±3, ±10
	Spectral width(nm)	<3	<3	<3	<3
	Temperature drift (nm/K)	0.3	0.3	0.3	0.3
Fiber Data	Core dia.(um)	105, 200	200	105, 200	105, 200
	NA	0.22	0.22	0.22	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	5	5	5	5
	Threshold current(A)	0.8	0.8	0.8	0.8
	Operation voltage(V)	1.9	2.1	1.9	1.9
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>10,000	>10,000	>10,000	>10,000
	Dimension(mm)	26x12.7x12.5	44.5x31.8x18	44.5x31.8x18	26x12.7x12.5
	Outlook	Fig. 1	Fig. 2	Fig. 4	Fig. 1
TEC Parameter	Max. current(A)		4	4	4
	Max. voltage(V)		9.8	9.8	9.8
Pilot beam			Yes		Yes

Part Number		STK808D14C-8W-FS	STK808S09F-8W	STK808D15F-8W	STK808S02M-10W
Optical Parameter	Laser power(W)	8	8	8	10
	Wavelength(nm)	808	808	808	808
	Tolerance(nm)	±3, ±10	±3, ±10	±3, ±10	±10
	Spectral width(nm)	<3	<3	<3
	Temperature drift (nm/K)	0.3	0.3	0.3	0.3
Fiber Data	Core dia.(um)	200	200, 400	200, 400	375
	NA	0.22	0.22	0.22	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	10	10	10	2.6
	Threshold current(A)	1.5	1.5	1.5	0.4
	Operation voltage(V)	2.2	2.2	2.18	10
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>10,000	>10,000	>10,000	>10,000
	Dimension(mm)	44.5x31.8x18	44.5x31.8x18	44.5x31.8x18	123x80x25
	Outlook	Fig. 3	Fig. 4	Fig. 8	Fig. 5
TEC Parameter	Max. current(A)	6	6	6
	Max. voltage(V)	9.8	9.8	9.8
Pilot beam		Yes		Yes

Part Number		STK808S02M-15W	STK808SABC-15W	STK808SABC-30W	STK808DANC-30W-FS
Optical Parameter	Laser power(W)	15	15	30	30
	Wavelength(nm)	808	808	808	808
	Tolerance(nm)	±10	±3	±3	±3, ±10
	Spectral width(nm)		<3	<3	<3
	Temperature drift (nm/K)	0.3	0.3	0.3	0.3
Fiber Data	Core dia.(um)	375	400	400	400
	NA	0.22	0.22	0.22	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	3	9	9.5	10
	Threshold current(A)	0.4	1.2	1.2	1.2
	Operation voltage(V)	14	3.8	7.8	7.8
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>10,000	>10,000	>10,000	>10,000
	Dimension(mm)	123x80x25	47x40x20	47x40x20	52x35x20
	Outlook	Fig. 5	Fig. 6	Fig. 6	Fig. 7
Pilot beam					Yes

Specifications of Pilot Beam

Laser power(mW)	>2
Laser wavelength(nm)	650
Operation voltage(V)	2.2
Operation current(mA)	<30

915/940/976/9xxnm Diode Lasers

Part Number		SYK976S06F-3W	SYK976S14F-3W	SYK976SA2F-9W-R-G	SYK976D14C-10W-FS
Optical Parameter	Laser power(W)	3	3	9	10
	Wavelength(nm)	976	976	976	976
	Tolerance(nm)	±3, ±10	±3, ±10	±0.5	±3, ±10
	Spectral width(nm)	<3	<3	<0.5	<3
	Temperature drift (nm/K)	0.3	0.3	0.02	0.3
Fiber Data	Core dia.(um)	105, 200	105	105	200
	NA	0.22	0.22	0.22	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	4	3.8	11.5	12
	Threshold current(A)	0.4	0.4	0.6	0.5
	Operation voltage(V)	1.8	1.8	1.8	1.9
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>10,000	>10,000	>100,000	>10,000
	Dimension(mm)	30x12.7x14.8	30x12.7x14.8	26x12.7x12.5	44.5x31.8x18
	Outlook	Fig. 1	Fig. 2	Fig. 11	Fig. 3
TEC Parameter	Max. current(A)		2.2		6
	Max. voltage(V)		8.7		9.8
Pilot beam					Yes

Part Number		SYK976S09F-10W	SYK976D15F-10W	SYK976S02M-10W	SYK976S02M-15W
Optical Parameter	Laser power(W)	10	10	10	15
	Wavelength(nm)	976	976	976	976
	Tolerance(nm)	±3, ±10	±3, ±10	±10	±10
	Spectral width(nm)	<3	<3
	Temperature drift (nm/K)	0.3	0.3	0.3	0.3
Fiber Data	Core dia.(um)	105, 200	105, 200	375	375
	NA	0.22	0.22	0.22	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	12	12	3.6	3.8
	Threshold current(A)	0.5	0.5	0.3	0.3
	Operation voltage(V)	1.9	1.9	6	10
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>10,000	>10,000	>10,000	>10,000
	Dimension(mm)	44.5x31.8x18	44.5x31.8x18	123x80x25	123x80x25
	Outlook	Fig. 4	Fig. 8	Fig. 5	Fig. 5
TEC Parameter	Max. current(A)	6	6
	Max. voltage(V)	9.8	9.8
Pilot beam			Yes

Part Number		SYK976SABF-25W-R-G	SYK9XXSA3F-25W-R	STK9XXSA3F-30W-R	STK9XXDANC-30W-FS
Optical Parameter	Laser power(W)	25	25	30	30
	Wavelength(nm)	976	915,940,976	915,940,976	915,940,976
	Tolerance(nm)	±0.5	±3, ±10	±3, ±10	±3, ±10
	Spectral width(nm)	<0.5	<5	<5	<3
	Temperature drift (nm/K)	0.02	0.3	0.3	0.3
Fiber Data	Core dia.(um)	105	105	105	200
	NA	0.22	0.15	0.15	0.22
	Connector	SMA905	SMA905	SMA905	SMA905
Electrical Parameter	Operation(A)	11	10	12	9.5
	Threshold current(A)	0.6	0.5	0.5	0.5
	Operation voltage(V)	5.4	5.4	5.4	7
Others	Operation temp.(oC)	10-30	10-30	10-30	10-30
	Store temp.(oC)	-20-+80	-20-+80	-20-+80	-20-+80
	Life(hours)	>100,000	>100,000	>100,000	>10,000
	Dimension(mm)	47x42x20	42x25x17	42x25x17	52x35x20
	Outlook	Fig. 10	Fig. 9	Fig. 9	Fig. 7
Pilot beam					Yes

Part Number		STK940SG3-50W-R	STK976SG3-50W-R	STK915FN1RN-150
Optical Parameter	Laser power(W)	50	50	150
	Wavelength(nm)	940	976	915
	Tolerance(nm)	±0.5	±3, ±10	±10
	Spectral width(nm)	<0.5	<5	<6
	Temperature drift (nm/K)	0.3	0.3	0.3
Fiber Data	Core dia.(um)	105	105	106.5
	NA	0.22	0.15	0.22
	Connector	SMA905	SMA905	--
Electrical Parameter	Operation(A)	12	12	22.8
	Threshold current(A)	0.5	0.5	1.1
	Operation voltage(V)	10.8	10.8	14
Others	Operation temp.(oC)	10-30	10-30	15-35
	Store temp.(oC)	-20-+80	-20-+80	-20-+70
	Life(hours)	>100,000	>100,000
	Dimension(mm)	60x50x25	60x50x25	80x80x24.5
	Outlook	Fig. 12	Fig. 12	click here

Specifications of Pilot Beam

Laser power(mW)	>2
Laser wavelength(nm)	650
Operation voltage(V)	2.2
Operation current(mA)	<30

SXH Series Fiber-coupled Laser Diodes

P/N	Ctr. Wavelength nm	Laser Power W	Wavelength Tolerance +/-nm	Spectral Width FWHM nm	Fiber core um	Fiber NA
SXH-915-15-105	915	15	15		105	0.22
SXH-915-30-105	915	30	15		105	0.22
SXH-915-45-105	915	45	15		105	0.22
SXH-915-80-105	915	80	15		105	0.22
SXH-915-110-105	915	110	15		105	0.22
SXH-915-140-105	915	140	15		105	0.22
SXH-915-150-135	915	150	15		135	0.22
SXH-915-200-105	915	200	15		105	0.22
SXH-915-280-135	915	280	15		135	0.22
SXH-915-340-135	915	340	15		135	0.22
SXH-915-430-200	915	430	15		200	0.22
SXH-915-500-220	915	500		6	220	0.22
SXH-915-540-200	915	540	8		200	0.22
SXH-915-660-200	915	660	15		200	0.22
SXH-915-660-220	915	660		6	220	0.22
SXH-915-800-220	915	800	15	6	220	0.22
SXH-915-1000-220	915	1000		8	220	0.22
SXH-975-330-220	975	330	3	6	220	0.22
SXH-975-500-220	975	500		6	220	0.22
SXH-975-660-220	975	660		6	220	0.22
SXH-975-800-220	975	800		6	220	0.22
SXH-976-200-105	976	200	3		105	0.22
SXH-976-260-135	976	260	3		135	0.22
SXH-976-340-135	976	340	3		135	0.22
SXH-976-420-135	976	420	3		135	0.22
SXH-976-430-200	976	430	3		200	0.22
SXH-976-540-200	976	540	3		200	0.22
SXH-976-660-200	976	660	3		200	0.22
SXH-976-1000-220	976	1000		6	220	0.22
SXH-976-2000-250	976	2000		6	250	0.22
SXH-976-2000-400	976	2000		6	400	0.46
SXH-976-3000-400	976	3000		6	400	0.46
SXH-977-330-220	977	330	3	6	220	0.22
SXH-977-500-220	977	500		6	220	0.22
SXH-977-660-220	977	660		6	220	0

SZK Series Wide Band Superluminescent LEDs

1.SZK-1550-xx-yy-zz14-HB SLEDs

Features:

• Typical ex-fiber output power of 10mW

• Typical 3dB bandwidth of 85nm

• Spectrum covers 1510-1590nm bandwidth -25dBm/0.1nm resolution

• Spectral modulation of <1dB

• 14-pin BTF package

• Single-mode/PM fiber pigtail ＞1m

Applications:

• Fiber Optic Gyroscope

• Optical Test Instrument

• Fiber Optic Sensors

• Fiber Optic Communications

• Optical Coherence Tomography

• Biomedical Imaging Device

• Clinical Healing Equipment

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Reverse voltage	VR	-	-	2	V
Forward current	IF	-	-	650	mA
Forward voltage	VF	Iop	-	3.0	V
Operating Case Temperature	Tc	Iop	-20	60	℃
Thermoelectric cooler voltage	VTEC	-	-	3.60	V
Thermoelectric cooler current	ITEC	-	-	2.6	A
Storage temperature	Tstg	Unbiased	-40	85	℃
Storage humidity	-	-	5	85	%RH
Electro static discharge (ESD)	VESD		-	500	V
Lead soldering temperature	Stemp	(max 60s)	-	260	℃
Lead soldering time	Stime	-	-	10	sec

Specification (TSLED = 25oC)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Operating current	Iop	-	-	-	600	mA
Forward voltage	VF	Iop	-	-	2.5	V
Optical Output Power	Po	Iop	8	10	-	mW
Central wavelength	λ	Iop	1520	1550	1570	nm
Bandwidth	BFWHM	Iop	85	-	-	nm
Spectrum modulation	R	Iop	-	-	1	dB
Thermistor resistance	Rtherm	T = 25 ℃	9.5	10	10.5	kΩ
Polarization Extinction Ratio (Optional PMF)	PER	Iop	15			dB
Thermoelectric cooler voltage	VTEC	Iop	-	-	2.8	V
Thermoelectric cooler current	ITEC	Iop	-	-	1.4	A

Dimensions and Pin Description

Dimensions are in mm. All dimensions are ±0.1mm unless otherwise specified. Type: 00

Order information

SZK-1550-xx-yy-zz-14-HB

SZK	Wavelength nm	Output power mW	Encapsulation ＆ fiber selection	Connector	PIN	Customized
SLED	… 1550 …..	… 2 5 10	BS=BTF SM fiber BP=BTF PM fiber ….	00=NO FA=FC/APC FU=FC/UPC	14	HB=Bandwidth＞ 85nm

Note: the laser module are ESD-sensitive devices. Please insure that proper ESD handling procedures are used.

2.SLED Butterfly Device SKZ-1XX0-XX-XX--FA-14

Features:

• High power output

• Metal-coupled and hermetic package

• TEC inside

• Polarization-maintaining or single-mode optical fiber

• 14pin butterfly package

Applications:

• Fiber-optic gyroscope

• Optic test

• Optical fiber transmission system

• Fiber-optic sensor

• OCT

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Reverse voltage	VR	-	3	V
Forward current	IF	-	300	mA
Operating Case Temperature	Tc	-20	70	℃
Thermoelectric cooler voltage	VTEC	-	3.0	V
Thermoelectric cooler current	ITEC	-	1.5	A
Storage temperature	Tstg	-55	85	℃
Lead soldering temperature	Stemp	-	260	℃
Lead soldering time	Stime	-	10	sec

Optical/Electrical Characteristics (T=25℃, unless otherwise stated)

Parameter	Symbol	Min	Typ	Max	Unit	Test Conditions
Optical Output Power	Po	1	--	10.0	mW	CW,T=25℃
Forward Voltage	VF	--	--	2.5	V	CW,T=25℃
Center Wavelength	λc	1290 1535	--	1330 1565	nm	CW,T=25℃
Bandwidth FWHM	Bw	30	40	-	nm	CW,T=25℃
Spectral Ripple	--	--	--	1	dB	CW,T=25℃
Polarization Extinction Ratio	PER	-- 15	--	1.5 --	dB	Low Polarization Rate High Polarization Rate @PM Fiber
Thermistor Resistance	RT	9.5	10.0	10.5	KΩ	T=25 °C
Thermistor B-Value	--		3950	--	K	25℃/85℃

Order information

SZK-1XX0-YY-ZZ-FA-14

SZK	wavelength	Output Power	Encapsulation ＆ fiber selection	Connector	PIN
SLED	…nm	…mW	BS=BTF SM Fiber	00=NO	14
…	1310	1	BP=BTF PM Fiber	FA=FC/APC
	1550	2	…	FU=FC/UPC
	…	5		SA=SC/APC
		10		…

Dimensions and Pin Description:

Dimensions are in mm. All dimensions are ±0.1mm unless otherwise specified. Type: 00

Note: the laser module are ESD-sensitive devices. Please insure that proper ESD handling procedures are used.

Online submission
