Diode Laser Pump Modules

Keywords: diode pump module, DPSS, laser module, diode module

Nov 11, 2020 View: 2235 Data Sheet

The diode module is an ideal building block in the development or production of medium power rod laser systems, conversion of existing lamp-based laser designs to diode-pumping.

Online submission 15671598018 info@SintecLaser.com

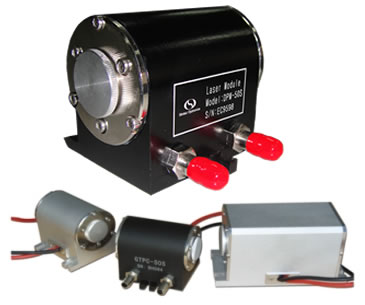

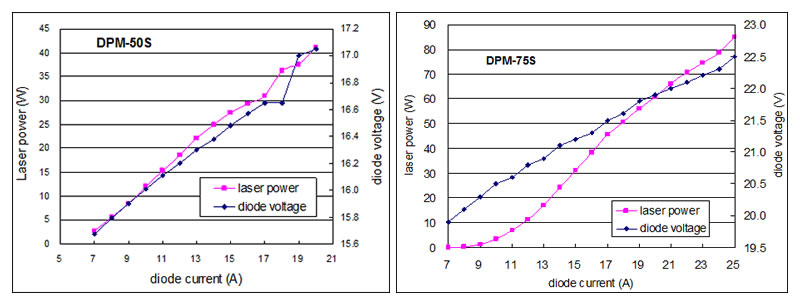

DPM Series Diode-pumped Laser Gain Modules

Part number	DPM-50S	DPM-75S
Wavelength	1064nm	1064nm
Laser power	50W	75W
Operation	CW	CW
Operation current	18A	25A
Operation voltage	≤18V	≤24V
Nd:YAG dimension	3x65mm	3x65mm
Cooling	Water	Water
Power input	Suggested LDD2020 (20A, 20V)	Suggested LDD2524 (25A, 24V)
Chiller	Cooling capacity ≥1000W Temp. accuracy ±0.5℃	Cooling capacity ≥1000W Temp. accuracy ±0.5℃
Water temp.	22℃	22℃
Warranty	12 months	12 months

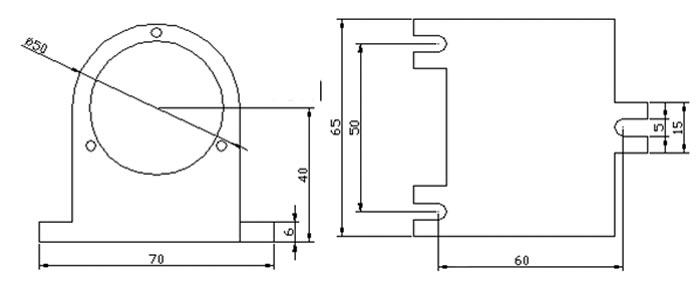

Dimension	70x65x65mm	70x65x65mm

More diode modules are listed as follows:

Part No.	DPM-25	DPM-50D	DPM-50S	DPM-75	DPM-100	DPM-200	DPM-500	DPM-1000	DPM-1500
YAG Diameter (mm)	3	3	3	3	4	5	6/7	7	8
Output Power (W)	25	50	50	75	100	200	500	1000	1500
Operating Current (A)	29	15	18	29	29	29	29	29	29
Operating Voltage (V)	<6	<24	<18	<18	<24	<42	<100	<180	<250

For other power diode laser modules, please send us an email.

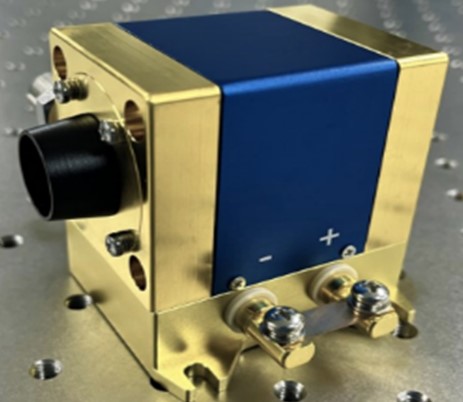

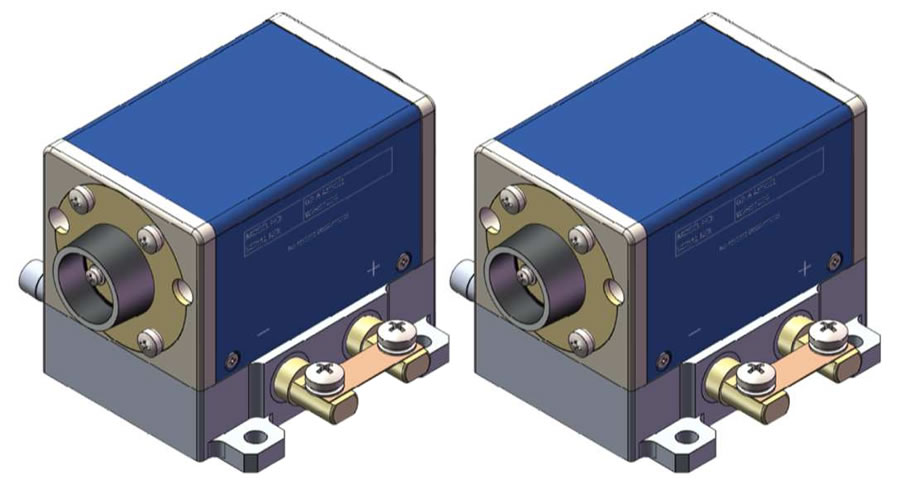

SLY Series CW DIODE PUMP MODULES

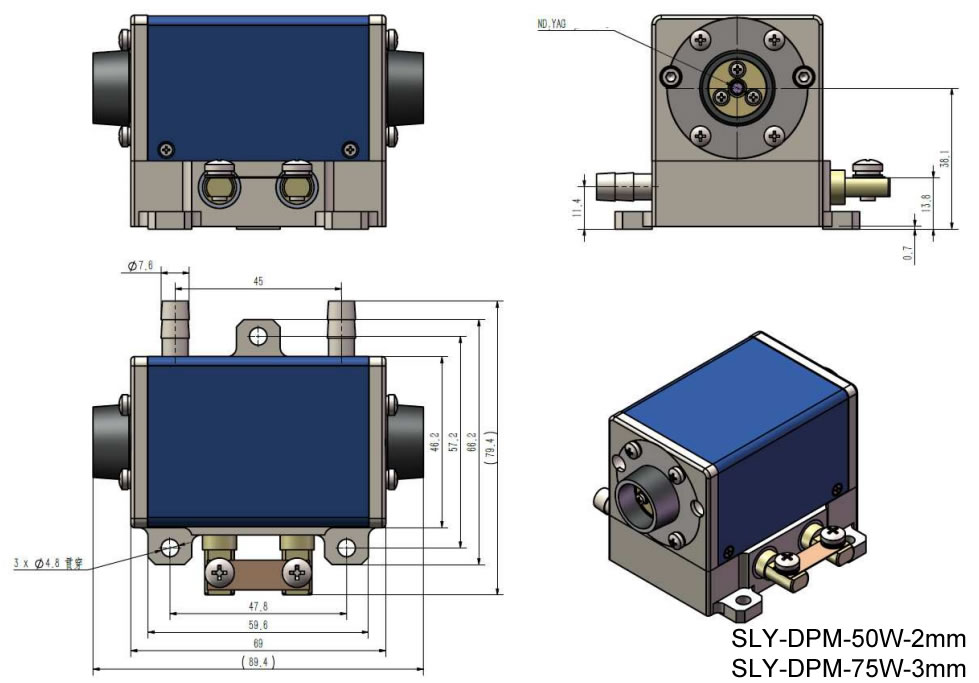

Part Number	SLY-DPM-50W-2mm	SLY-DPM-75W-3mm
Wavelength (nm)	1064	1064
Output Power (W)	50	75
Operating Mode	Continuous Wave	Continuous Wave
Threshold Current (A)	≤15	≤10
Operating Current (A)	≤30	≤30
Operating Voltage (V)	≤24	≤24
Rod Dimensions (mm)	Ø2	Ø3
Beam Height from Base (mm)	38.1	38.1
Suggested Water Cooling (l/min)	³8	³8
Operating Temperature (°C)	22 – 28	22 – 28
Storage Temperature (°C)	5 – 50	5 – 50
Weight (kg)	≤1.0	≤1.0

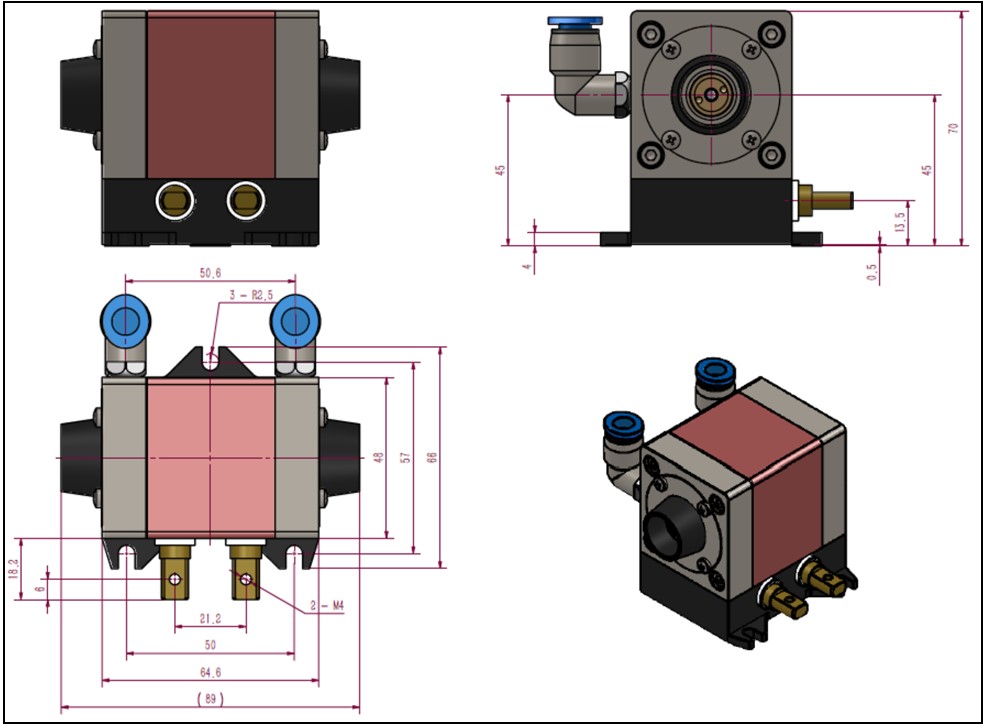

Part Number: SLY-DPM-100W-3mm

Parameter	Value
Wavelength (nm)	1064
Output Power (W)	100
Operating Mode	Continuous Wave
Beam Height (mm)	45
Threshold Current (A)	≤ 10
Operating Current (A)	≤ 30
Operating Voltage (V)	≤ 24
Rod Diameter (mm)	Ø3
Operating Temperature (°C)	22~28
Storage Temperature (°C)	5 – 50
Water Flow (L/min)	≥8
Water Pressure (Mpa)	≤ 0.35
