EO Q-switched Nd:YAG Laser

EO Q-switched Nd:YAG Laser

Keywords: Nd:YAG Laser,EO Q-switched laser, EOQ, pulsed laser, electro-
Nov 26, 2020 View: 2704 Data Sheet

EO Q-switched lasers with 1064nm/532nm/355nm/266nm energy up to 10J at 10Hz 1064nm repetition rate up to 30Hz. They have high reliability and stability.

STLB Series EO Q-switched Lasers

1 STLB-LA Series Air-cooled EO Q-switched DPSS Lasers

  • Diode pumped with 1 billion shots lifetime

  • Air cooling without maintenance

  • EOQ switched with accurate timing

  • 1064 nm with over 80 mJ energy output

  • Higher harmonics available

  • Portable design with compact size

  • Easy for system integration

STLA series DPSS lasers are with uniform pumping and conduction cooling technologies to realize real portable nanosecond laser source. This series provide the new solution to various scientific, industrial and military applications.

Diode pumping has the features such as low energy consumption, high efficiency and long lifetime. TEC conduction cooling technology is used to avoid any water usage while keeping the operation stability. Electro-optical Q-switched technology is used to provide accurate timing, which is key to analysis instrument.

Based on all these features, our lasers are the perfect choice for applications like LIDAR, mass spectroscopy, laser ultrasonic and LIBS.

Part number
STLB-LA-20-xxxxSTLB-LA-80-xxxx
Pulse repetition rate (Hz)
1-10020
Pulse energy (mJ)1064nm2080

532nm1250

355nm415

266nm28
Energy stability2 RMS1064nm<1%<0.5%

532nm<2%<2%

355nm<4%<4%

266nm<4%<4%
Pulse width3 (ns)
1010
Divergence4 (mrad)
22
Pointing stability (urad)
<50<50
Beam dia.5 (mm)
34
Polarization
HorizontalHorizontal
Jitter6 (RMS) (ns)
<1<1
Cooling
AirAir
Power input
220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A
Power consumption (W)
800800
Operation temp. (oC)
5-305-30
Storage temp. (oC)
5-505-50

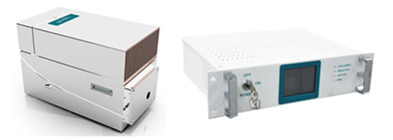

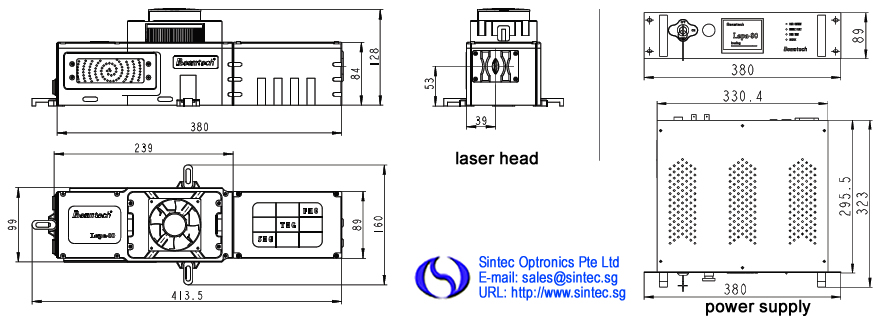

Dimension7 (mm)Head413x160x128413x160x128

Power380x323x89380x323x89
  1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength.

  2. Dev to average (shot to shot for 99% of pulses)

  3. Full width half max. (FWHM)

  4. Full angle at 1/e2 of the peak

  5. With respect to external trigger

  6. Measured at the laser output

  7. All the dimensions are the lasers with 4th harmonic generation (266nm).

2 STLB-DA Series Lamp-pumped EO Q-switched Nd:YAG Lasers

  • Fundamental wavelength covers 10-300 mJ output

  • Higher harmonics available

  • Module design and easy to use

  • Industrial design to ensure long term operation

  • Humanization design and easy for integration

  • Customization version available

STLB-DA series lasers are designed for an industrial level laser that greatly fits OEM system integration. The energy level is relatively low, from 10-300 mJ. The SHG, THG and FHG are available.

The lasers provides both multimode and variable reflectivity mirror (VRM) mode beam with good beam quality. The scientific and industrial design ensures the good beam quality. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority. The lasers passed CE certification in 2014.

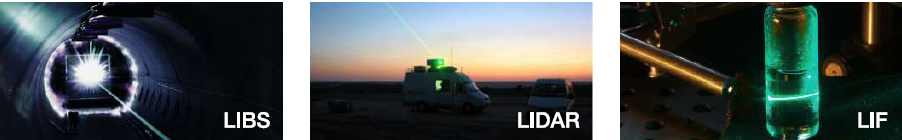

The lasers are suitable for many applications, including LIBS, LIDAR, LIF, PIV, laser ultrasonic, laser spark plug, laser cleaning, LCD repair etc.

Part number
STLB-DA-50-xxxxSTLB-DA-100-xxxxSTLB-DA-200-xxxxSTLB-DA-300-xxxx
Pulse repetition rate (Hz)
1-201-201-201-10
Pulse energy (mJ)1064nm50100200300

532nm2550100150

355nm10204060

266nm5102030
Energy stability2 RMS1064nm<1%<1%<1%<1%

532nm<2%<2%<2%<2%

355nm<4%<4%<4%<4%

266nm<4%<4%<4%<4%
Pulse width3 (ns)1064nm<9<9<8<7

532nm<8<8<7<6

355nm<7<7<6<5

266nm<7<76<5
Divergence4 (mrad)1064nmMulti-mode, <3mrad;
Flat-top, <1rmad
Multi-mode, <3mrad;
Flat-top, <1rmad
Multi-mode, <3mrad;
Flat-top, <1rmad
Multi-mode, <3mrad;
Flat-top, <1rmad
Pointing stability (urad)
<50<50<50<50
Jitter5 (RMS) (ns)
<1<1<1<1
Beam dia.6 (mm)1064nm5567
Spatial mode profileNear field>70%>70%>70%>70%

Far field>95%>95%>95%>95%
Cooling
Air to waterAir to waterAir to waterAir to water
Power input
220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A
Power consumption (W)
500500500500
Cable length (m)Control3333

Power1.81.81.81.8

Umbilical3333
Operation temp. (oC)
5-305-305-305-30
Storage temp. (oC)
5-505-505-505-50

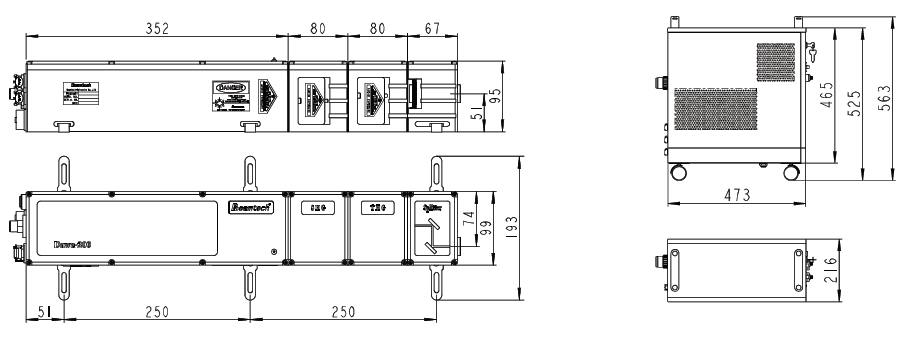

Dimension7 (mm)Head579x193x95579x193x95579x193x95579x193x95

Power473x216x563473x216x563473x216x563473x216x563
  1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength.

  2. Dev to average (shot to shot for 99% of pulses)

  3. Full width half max. (FWHM)

  4. Full angle at 1/e2 of the peak

  5. With respect to external trigger

  6. Measured at the laser output

  7. All the dimensions are the lasers with 3th harmonic generation (355nm).

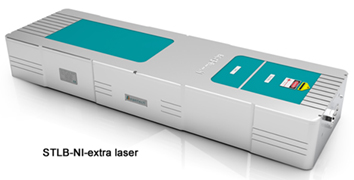

3 STLB-NI Series Lamp-pumped EO Q-switched Nd:YAG Lasers

  • Compact size

  • High uniformity of beam profile

  • Industrial design to ensure long term operation

  • High SHG and UV efficiency

  • Built to withstand various environment

  • Easy for system integration

STNI series lasers are middle energy level Q-switched nanosecond Nd:YAG laser. The fundamental wavelength covers energy level from 400 mJ to 2000 mJ. These lasers possess the features of compact size, good pointing stability, high energy stability, high reliability, etc. The SHG, THG and FHG are available.

These lasers provide two types of laser mode, multimode and VRM mode. The scientific and industrial design ensures the good beam quality. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority.

Up to now, around 4000 units have been delivered all over the world. They are the perfect choice for various kinds of scientific and industrial applications such as pump dye laser, pump OPO, pump Ti:Sapphire laser, laser shock peening, LCD repair, laser ablation, laser sintering, LIDAR.

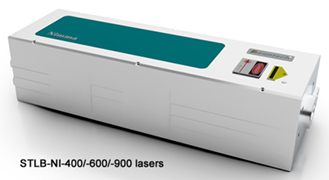

Part number
STLB-NI-400-xxxxSTLB-NI-600-xxxxSTLB-NI-900-xxxxSTLB-NI-Extra-xxxx
Pulse repetition rate (Hz)
1-101-101-101-10
Pulse energy (mJ)1064nm4506509002000

532nm2503504801000

355nm90150270600

266nm506590150
Energy stability2 RMS1064nm<=1%<=1%<=1%<=1%

532nm<=2%£2%<=2%<=2%

355nm<=4%<=4%<=4%<=4%

266nm<=4%<=4%<=4%<=4%
Pulse width3 (ns)1064nm<=9<=9<=9<=9

532nm<=8<=8<=8<=8

355nm<=7<=7<=7<=7

266nm<=7<=7<=7<=7
Divergence4 (mrad)1064nm<=0.6<=0.6<=0.6<=0.5
Pointing stability (urad)
<=30<=30<=30<=50
Jitter5 (RMS) (ns)
<=1<=1<=1<=1
Beam dia.6 (mm)1064nm88911

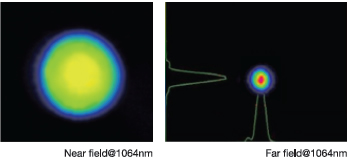

Spatial mode profileNear field>70%>70%>70%>70%

Far field>95%>95%>95%>95%
PolarizationHorizontal1064/355/266nm1064/355/266nm1064/355/266nm1064/355/266nm

Vertical532nm532nm532nm532nm
Cooling
Air to waterAir to waterAir to waterChiller
Power input
220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A220VAC/50-60Hz, 10A
Power consumption (kW)
2223
Cable length (m)Control3333

Power1.81.81.81.8

Umbilical3333
Operation temp. (oC)
5-305-305-305-30
Storage temp. (oC)
5-505-505-505-50

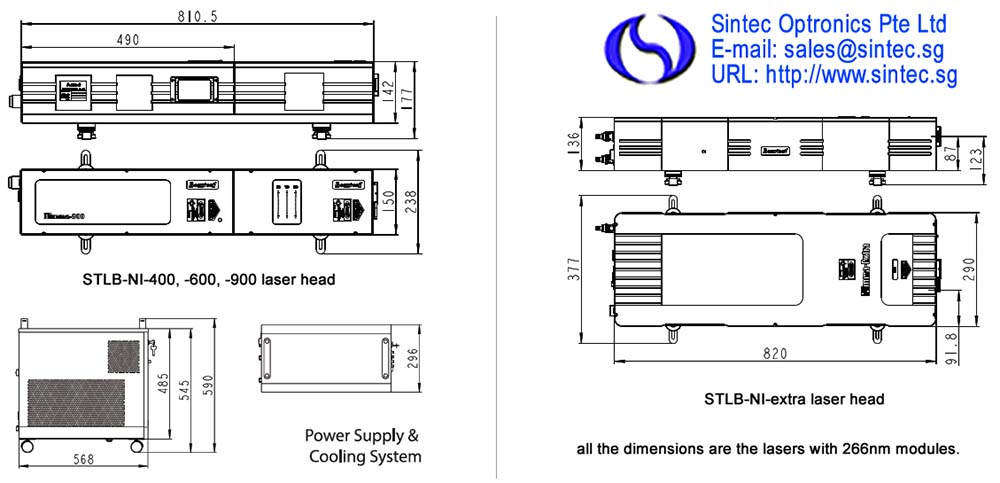

Dimension7 (mm)Head810.5x150x142810.5x150x142810.5x150x142820x290x136

Power568x296x590568x296x590568x296x590568x296x590
  1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength. For example, STNI-400-532 is 532nm laser and it includes 1064nm and 532nm modules.

  2. Dev to average (shot to shot for 99% of pulses)

  3. Full width half max. (FWHM)

  4. Full angle at 1/e2 of the peak

  5. With respect to external trigger

  6. Measured at the laser output

  7. All the dimensions are the lasers with 4th harmonic generation (266nm).

4 STLB-SGR Series Q-Switched Nd:YAG Laser

STLB-SGR Series Super-Gaussian Resonator series Q-Switched Nd:YAG lasers combine VRM (variable reflectivity mirror) with unstable resonator design creating a cavity with large TEM00 mode volume for excitation and energy extraction. A “flat-top-hat” can be specified with uniform energy distribution or “VRM Gaussian” profiles.

STLB-GR Series close-coupled diffuse pump chamber delivers uniform pumping of the laser rod for optimum lasing excitation efficiency and allows for higher stored energy by eliminating parasitic oscillations within the pump chamber. The pump chamber uses chemically inert materials to withstand high pumping energy and absorb unwanted UV and IR radiation emitted by the flash lamps. One or more amplifiers can be added to the oscillator for higher energy output. With scientific or industrial grade models available, the STGR series will fit right in with your scientific research, medical or OEM industrial application.

Features:

  • Fundamental wavelength covers 2-6 J output

  • Higher harmonics available

  • Repetition rate up to 50 Hz

  • Injection seeded for narrow linewidth

  • RS232 and TTL interface for remote or external control

  • Invar structure inside

Applications:

  • Photo chemistry

  • Molecular chemistry

  • Non-linear optics

  • Laser illumination

  • LIDAR

  • Laser cleaning

  • Laser ablation

  • Optical remote sensing

  • LIF (Laser Induces Florescence)

  • PLD (Pulsed Laser Deposition)

  • Plasma diagnostics

Technical Specifications

Part no.
STLB-SGR-10STLB-SGR-20STLB-SGR-30STLB-SGR-40STLB-SGR-50STLB-SGR-60
Rep. rate
1010203050510510510510
Energy (mJ)1064nm1000200020002000150030003000400040005000500060006000

532nm50010001000100075015001500200020002500250030003000

355nm250500400400300750750100010001250125015001500

266nm901801009050250200300300400350500400
Power stability2 RMS1064nm<1%

532nm<2%

355nm<4%

266nm<4%
Power drfit31064nm<3%

532nm<5%

355nm<6%

266nm<8%
Pulse width4
1064nm: 8-10ns; other wavelength: 7-10ns
Spatial profile5Near field>70%

Far field>90%
Beam dia.6 (mm)
10121212121515151517172020
Divergence7
<0.5mrad
Pointing stability
<50urad
Jitter8 (RMS)
<1ns
LinewidthStandard<1cm-1

Injection seeded<0.0031cm-1
Part no.
STLB-SGR-S400STLB-SGR-S500STLB-SGR-S600STLB-SGR-S600
Rep. rate (Hz)
1020/30/5020/3010
Energy (mJ)1064nm400500600800

532nm200250300400

355nm100100150200

266nm40405080
Divergence7
<0.7mrad<0.5mrad<0.5mrad<0.5mrad
Beam dia.8
8mm8mm8mm8mm
Other specifications
Please refer to the table abovePlease refer to the table abovePlease refer to the table abovePlease refer to the table above
  1. All specifications unless otherwise stated are for 1064nm operation.

  2. Dev. To average (shot to shot for 99% of pulses).

  3. Average for 8 hours with room temp. variation less than +/-3 deg.

  4. Full width half max (FWHM)

  5. Near field profiles measured at the focal plane, least square fit to Gaussian profile.

  6. Measured at the laser output.

  7. Full angle at 1/e2 of the peak.

  8. With respect to external trigger.

Other Specifications



STLB-SGR-SSTLB-SGR-10STLB-SGR-20/30/40STLB-SGR-60
Size (LxWxH) (mm)Laser head1162x333x290.51162x410x290.51162x410x290.51266x565x243

Power supply476x443x200914x520x737914x520x737914x520x737

Cooling systemN/AN/A240x170x70836x688x1125
Power input
220V-50Hz-16A220V-50Hz-16A220V-50Hz-16A380V-50Hz-25A
Operation temp.
5-30oC5-30oC5-30oC5-30oC
CablesControl line3m3m3m3m

Power line1.8m1.8m1.8m1.8m

Umbilical line3m3m3m3m

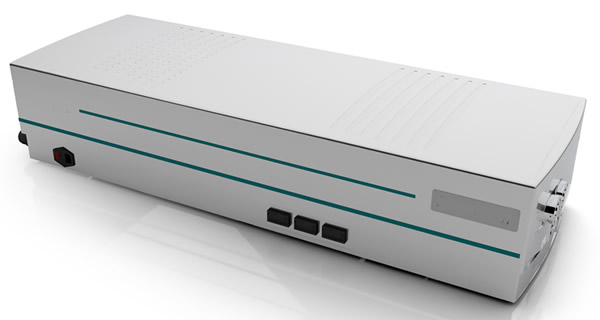

5 STLB-SGRE Series High-energy EO Q-switched Lasers

EO Q-switched laser

STLB-SGRE series lasers have been developed since 2007 as high energy nanosecond laser systems which are suitable for laser peening, pump source, plasma physics, etc. STLB-SGRE series lasers provide the customization service. Specifications such as wavelength, repetition rate, energy, pulse width, beam profile, SLM are all available for customization. We also developed and gained much experience on burst mode technique and vehicular applications during this process. As a result, we can provide the ideal laser source solution for the customer in various applications.

Main Features:

  • High output energy up to 50J@1064 nm

  • 8-26ns pulse width, high peak power

  • Unique cavity design to ensure uniform beam profile

  • Good stability for long term operation

  • Local and remote control interface with compatibility

  • Customization version available

EOQ

Applications:

  • Laser peening

  • Pump Ti:Sapphire laser

  • Plasma diagnostics

  • Nonlinear optics

  • LIDAR

  • Laser cleaning

Model1STLB-SGRE-04STLB-SGRE-06STLB-SGRE-08STLB-SGRE-10STLB-SGRE-12STLB-SGRE-15STLB-SGRE-20STLB-SGRE-25STLB-SGRE-30STLB-SGRE-40STLB-SGRE-50
Wavelength21064nm
Rep rate, Hz20/30/505/105/105/105522522
Pulse energy at 1064nm3-4J6J8J10J12J15J20J25J30J40J50J
Pulse width at 1064nm310-12ns, 15-20ns optional12-15ns, 15-20ns optional
Divergence4<=0.5mrad for VRM, <=4mrad for MM
Peak to average<=1.8:1
PolarisationLinear 100:1Cross
Energy stability5 RMS<1%
Power drift RMS<5%
Pointing stability<50urad
Jitter6 RMS<1ns
Warm up time7<5min
  • 1. All specifications unless otherwise stated are for 1064nm operation.

  • 2. SHG, THG, FGH are available upon request.

  • 3. Full width half max (FWHM). The rising time can be cut down to <5-10ns by slice as option.

  • 4. Full angle at 1/e2 of the peak.

  • 5. Dev. To average (shot to shot for 99% of pulses).

  • 6. With respect to external trigger.

  • 7. Time to full energy.

Mechanical & Utilities

Size (LxWxH), mmCustomisation
Electrical input380VAC 50Hz, 50A, 3-phase
Water coolingDistilled water, chiller
Operation temperature10-30 degree
Storage temperature0-40 degree
