IR Laser Beam Viewer

IR Laser Beam Viewer

Keywords: IR Laser Beam Viewer, beam detector
Dec 25, 2020 View: 721 Data Sheet

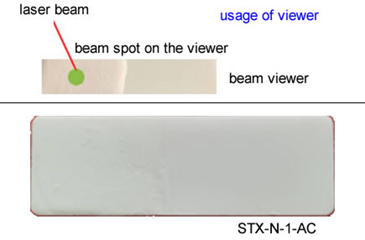

A frequency-doubling material is coated on the glass surface. When an IR laser beam is illuminated on the coating material the frequency of the IR laser beam will be doubled from IR to green wavelength.

laser beam viewer

A frequency-doubling material is coated on the glass or ceramic base. When an IR laser beam is illuminated on the coating material, the frequency of the IR laser beam will be doubled from IR to green wavelength. For 1064nm laser beam, the wavelength will be 532nm which is green.

The detectable laser wavelength is 800-1600nm, typical wavelengths 808nm, 915nm, 980nm and 1064nm. The detectable laser power is as low as 100mW.

Specifications:

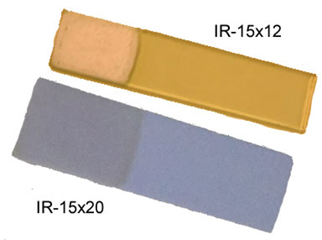

Part numberIR-15x12IR-15x20STX-N-1-AC
Outline dimension50x12x13mm50x15x1mm60x20x3mm
Base materialGlassCeramicCeramic
Coating area15x1215x2020x25mm
Coating material colorWhiteWhiteWhite
