1064nm F-Theta Lens

1064nm F-Theta Lens

Keywords: F-Theta Lens, scan lens, telecentric lens, 1064nm, 532nm, 355
Aug 13, 2021 View: 5754 Data Sheet

F-theta lenses are used in laser scanners (laser markers) and the laser wavelengths may be 355/266/532/1064nm, 10.6um and other wavelengths. We can provide full range of f-theta lenses.

Lenses used in combination with XY galvanometer scanner are called ƒ-theta lenses, plane field objectives or simple scan lenses. ƒ-theta lenses are used in various applications from industrial material processing, drilling, welding of synthetic material and cutting in addition to medical and biotechnology (confocal microscopy, ophthalmology) to science and research. The design and the quality of the optical components are playing a decisive role.

A standard lens focuses the laser beam on a spherical plain in contrast to an ideal flat or plane field. The use of ƒ-theta lenses provides a plane focusing surface and almost constant spot size over the entire XY image plane or scan field. The position of the spot on the image plane is directly proportional to the scan angle. Telecentric ƒ-theta lenses focus the laser beam so it is almost perpendicular (within 1 degree) to the work surface over the entire scan field. This ensures the spot is round even in the corners of the scan field and if holes or channels are machined, they are perpendicular to the work surface.

Color corrected ƒ-theta lenses are designed to accommodate multiple wavelengths. Normally each wavelength would focus to a different point on the work surface. In a color corrected lens the focal point for each wavelength coincide. This is achieved by scheduling an ideal combination of different glass types for the various lens elements in the lens. Color corrected ƒ-theta lens are primarily used for simultaneously viewing the work surface through the scan lens with a camera while laser processing. Another common application for color corrected scan lenses are for use in confocal scan microscopes which require a broad range of visible wavelengths.

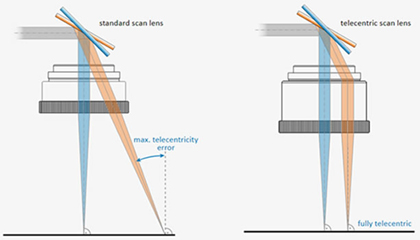

Telecentric ƒ-theta lenses provide a beam with perpendicular incidence onto the image surface. This is necessary for drilling holes and structuring surfaces in the third dimension (depth). The downside is generally a smaller focal plane compared to a non-telecentric lens, because the size of the frontal lens elements has to be larger than the scan area. Sill offers for both kinds of ƒ-theta lenses a large variety of options and focal distances.

The telecentricity error specifies the deviation of the laser beam from perpendicular. Usually it is maximum in the corner of the XY scan field. Note, that the telecentricity error is always zero on the optical axis. The telecentricity error or maximum incidence angle is a sign of quality for telecentric or entocentric lenses. Perfect telecentricity is only possible if all light comes from the object sided focus. In principle you can say: the larger the space between the mirrors, the larger the distance from one mirror to the object sided focus the larger the telecentricity error.

We mainly provide 3 series of f-theta lenses, STY, STS and STJ.

Description of STY series f-theta Lenses: STY-xxxx-yyy-zzz-dd-A
STY--- STY series laser f-theta lenses
xxxx-- laser wavelength, 1064 means 1064nm, 10.6 means 10.6um.
yyy---- mark field (scan field), yyy x yyy mm
zzz---- effective focal length in mm
dd------  entrance pupil (allowed maximum input laser beam diameter) in mm (option)
A------ others

Remark: (1) The f-theta lens consists of 3 lenses and one protective window/glass. The coating is a di-electric layer. The transmission is >99% at 1064nm. Two sides of the protective glass are AR-coated at 1064nm.

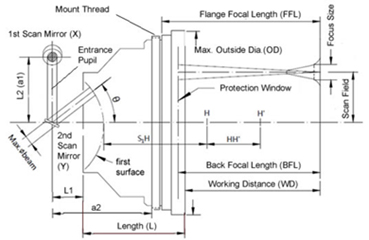

(2) In the following tables, the abbreviations are as follows: FL means effective focal length; EP means max. input beam diameter; SAR means scan area, AS means aperture stop; WD means working distance; OD means max. outside diameter; MT means mount thread, fs means fused silica, SA means max. full diagonal scan angle; L2 (a1) means recommended mirror separation; a2 means 2nd mirror to flange, L1 means the distance 2nd mirror and scan lens, SL means scan length, Length means the total length of the scan lens, FSD means focused spot diameter, WC means water cooled, Max. IA means telecentriccity angle.

(1) STY Series 1064nm Scan Lenses (F-tehta Lenses)

STY Series F-theta Lens (Fused Silica)

Part  NumberEFL   (mm)WD   (mm)Ø   (mm)Scan   Field (mm)Spot   Size (µm)Ø   Outside (mm)Mount   Thread
STY-100Q-1030-1080100126.49860X6024.390M85x1
STY-160Q-1030-1080160191.0110110X11031.290M85x1
STY-160A-14-1030-1080160197.44214100X10022.3120M85x1
STY-163-20-1030-1080163220.0952070X7015.9120M85x1
STY-170-10-1030-1080170199.74710117.5X117.533.190M85x1
STY-170-30-1030-1080170213.643070X7011.0146M102X1/M112X1
STY-175-20-1030-1080175
14100X10024.3
M85x1
2090X9017.0
STY-206-1030-108020625820110X11020.1120M85x1
STY-210-14-1030-1080210257.13814140X14029.2120M85x1
STY-210-20-1030-1080210272.4320120X12020.4137M85x1
STY-210-30-1030-1080210269.23430100X10013.6143M102X1/M112X1
STY-250-15-1030-1080250346.43415150X15032.5105M85x1
STY-254- Ø90-1030-1080254298.2510175X17549.590M85x1
STY-254-14-1030-1080254306.1414175X17535.3120M85x1
STY-254D-30-1030-1080254319.3630120X12016.5180M102X1/M112X1
STY-255-20-1030-1080255318.3420150X15024.8132M85x1
STY-275-20-1030-1080275212.85120160X16026.490M85x1
STY-295Q-1030-1080295358.50210203X20357.4120M85x1
STY-300-14-1030-1080300352.20814200X20041.7120M85x1
STY-300-20-1030-1080300371.1420148X14829.2140M85x1
STY-330Q-1030-1080330392.610230X23064.390M85x1
STY-330-20-1030-1080 330403.78814230X23045.9120M85x1
20200X20032.1
STY-330Q-1030-1080330392.610230X23064.390M85x1
STY-330-20-1030-1080330403.78814230X23045.9120M85x1
20200X20032.1
STY-330-30-1030-1080330392.6430150X15021.4146M102X1/M112X1
STY-330D-30-1030-1080330388.1430175X17521.4166M102X1/M112X1
STY-350-14-1030-1080350427.53814250X25048.7120M85x1
STY-385-14-1030-1080385380.89814270X27049.8120M85x1
STY-400-30-1030-1080400500.52230180X18026.0156M102X1
STY-420-14-1030-1080420498.48114300X30058.4122M85x1
STY-420Q-1030-1080420480.58910300X30081.890M85x1
STY-420-20-1030-1080420505.9914300X30058.4121M85x1
20255X25540.9
STY-420-30-1030-1080420533.43530200X20027.3146M102X1/M112X1
STY-460-30-1030-1080460558.12830270X27029.9186M102X1/M112X1
STY-480-20-1030-1080480574.74320280X28046.7135M85x1
STY-500-30-1030-1080500623.42530300X30032.5175M102X1/M112X1
STY-525-14-1030-1080525605.64114370X37066.6135M85x1
STY-650-20-1030-1080650581.620410X41063.6134M85x1
STY-750-30-1030-1080750888.52730440X44048.7165M102X1/M112X1
STY-870-20-1030-1080870984.4820550X55084.7120M85x1
STY-870-30-1030-1080870989.94330520X52056.5175M102X1/M112X1

STY Series 1064nm F-theta Lens (Optical Glass)

Part   NumberEFL   (mm)WD   (mm)Ø   in (mm)Scan   Field (mm)Spot   Size (µm)Ø   Outside (mm)Mount   Thread
STY-68R-10646880.6441040X4013.290M85x1
STY-100-10LNS-1064100118.491070X7019.590M85x1

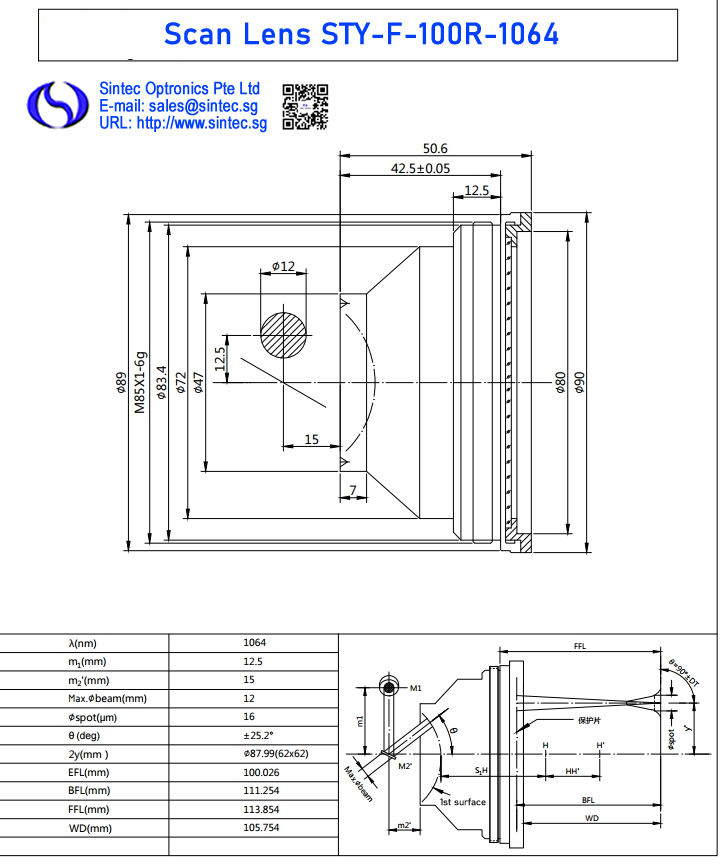

STY-100R-1064 100105.751070X7019.590M85x1
STY-120-30-1064-G120140.7763060X607.8140M102X1/M112X1
STY-130-1064130141.961085X8525.390M85x1

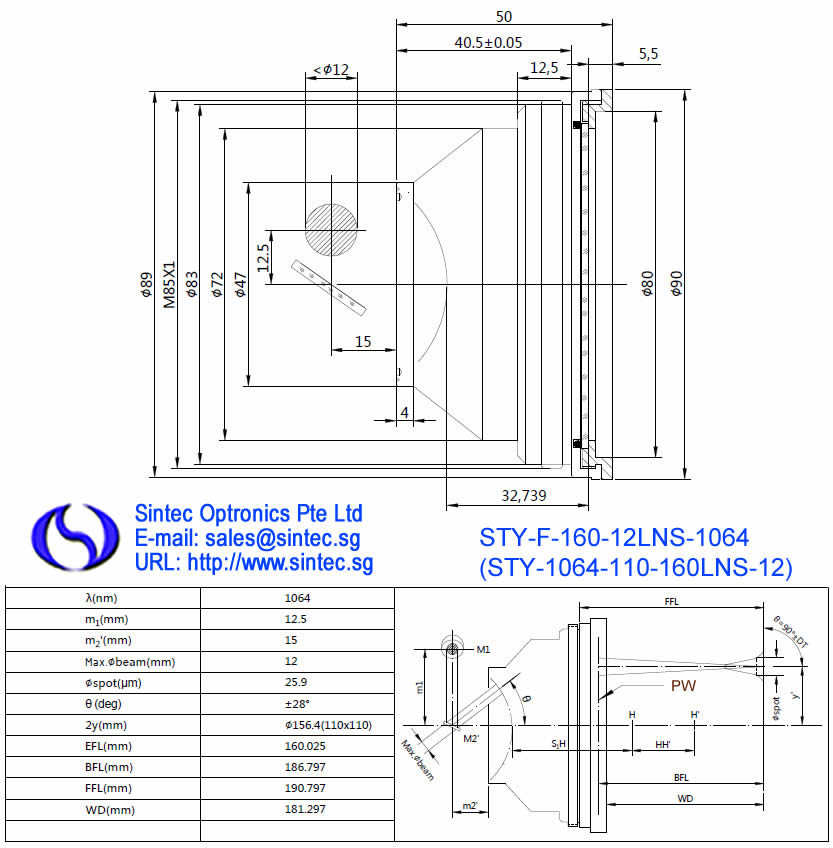

STY-160-12LNS-1064 160181.2910110X11031.290M85x1
STY-160R-1064160176.2610110X11031.290M85x1
STY-160-14LNS-1064160191.5914110X11022.3120M85x1
STY-163B-1064 163186.4510113X11331.790M85x1
STY-163R-1064 163181.8610120X12031.790M85x1
STY-163-20-1064B163193.34220110X11015.9128M85x1
STY-170-30-1064170198.313080X8011.0140M102X1/M112X1
STY-173B-1064173197.5110120X12033.790M85x1
STY-188-106418821210130X13036.690M85x1
STY-210A-1064210231.8810150X15040.990M85x1
STY-210B-1064210225.810150X15040.990M85x1
STY-210-30-1064210240.4230120X12013.6140M102X1/M112X1

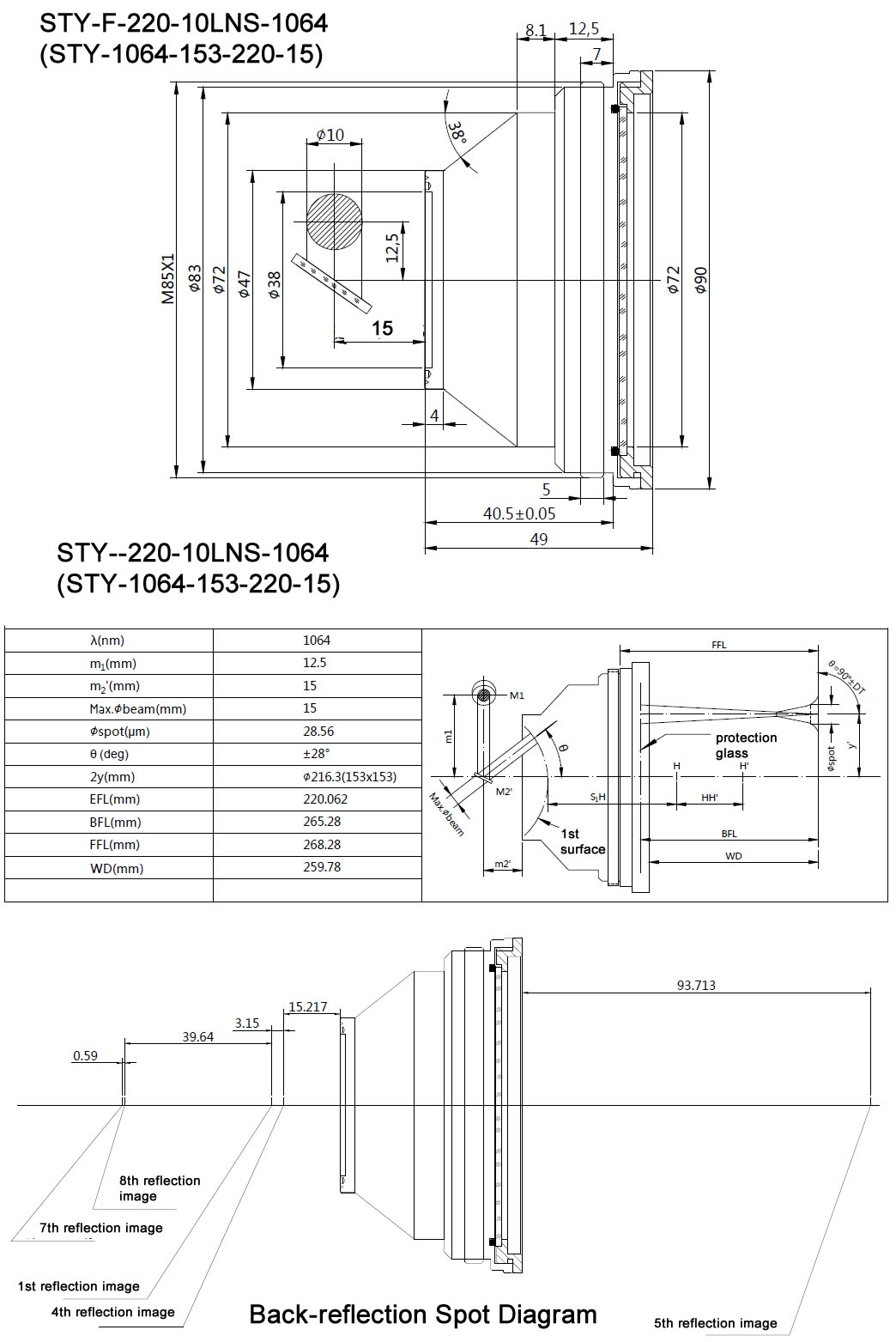

STY-220-10LNS-1064 220259.7810153X15342.890M85x1

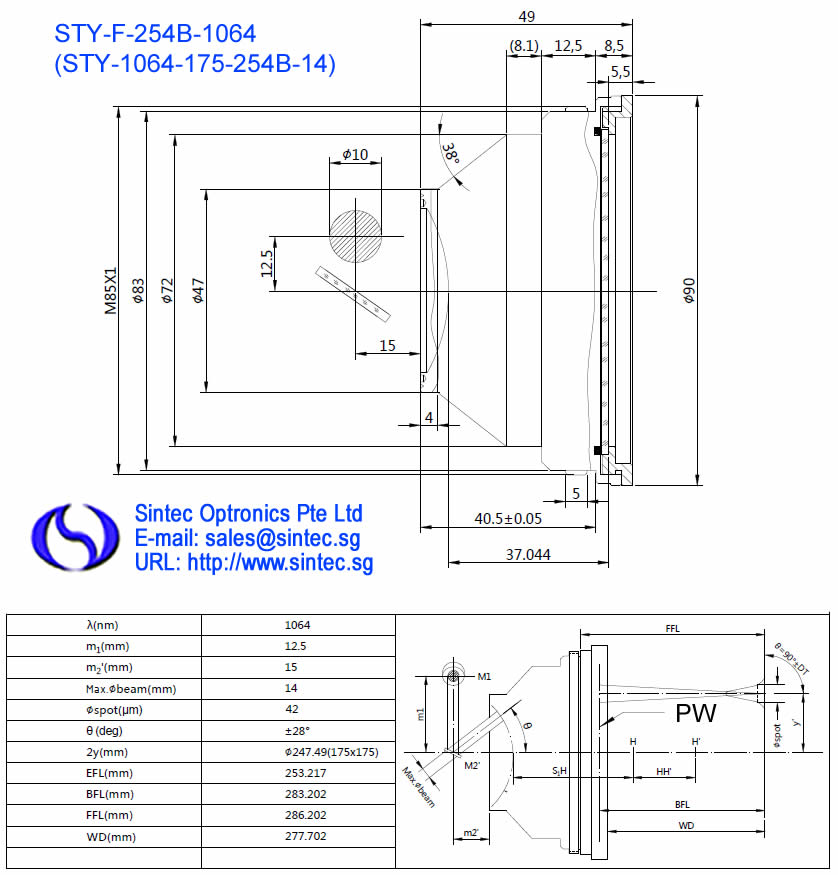

STY-254B-1064 254277.710175X17549.590M85x1

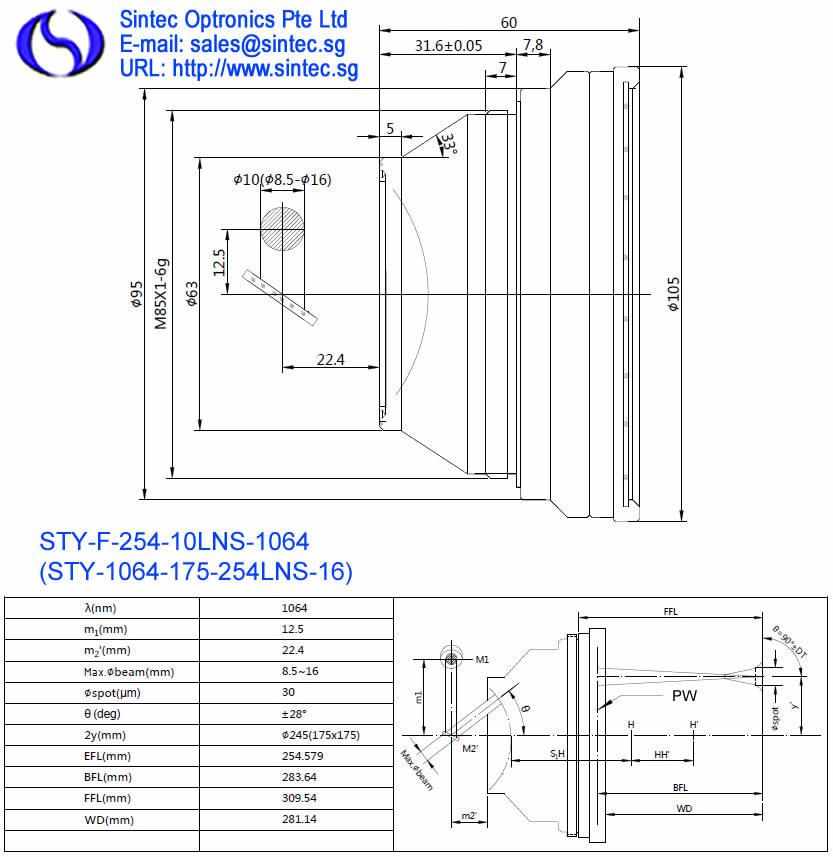

STY-254-10LNS-1064 254281.1414175X17535.3105M85x1
STY-254-20LNS-1064 254306.34220175X17524.7120M85x1
STY-30-1064254284.5830150X15016.5140M102X1/M112X1
STY-260-1064260287.5410180X18050.690M85x1
STY-290-1064290348.5210210X21056.590M85x1
STY-300D-1064-58300360.8610208X20858.490M85x1
STY-330-1064330383.9310230X23064.390M85x1
STY-330C-1064330387.6114230X23045.9120M85x1
STY-330-30-1064330376.4230200X20021.4140M102X1/M112X1

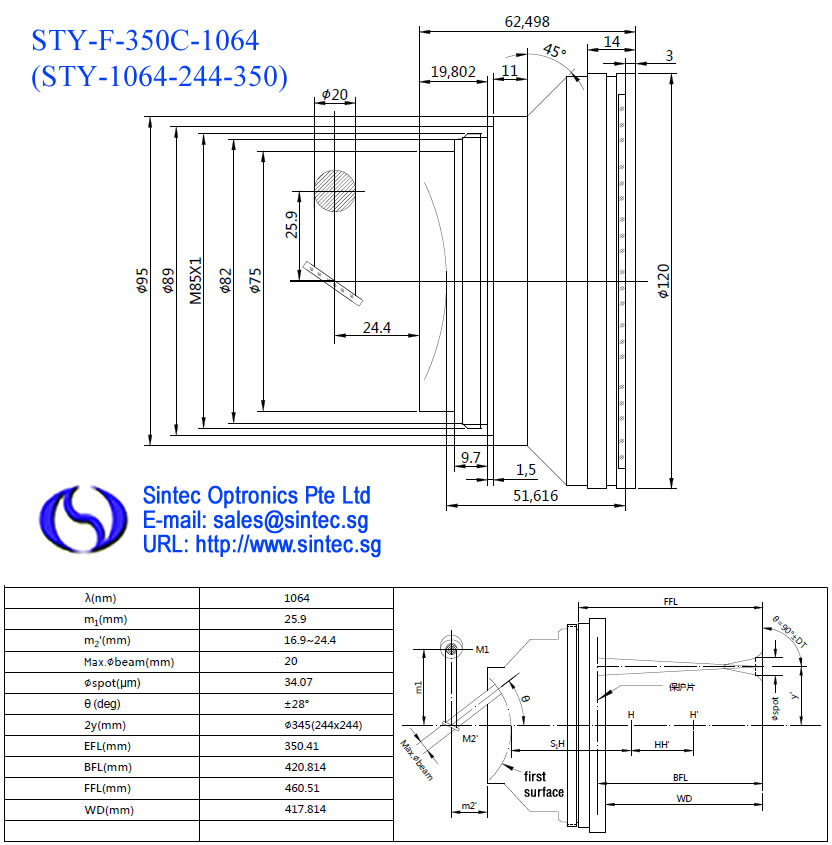

STY-350C-1064 350417.8120244X24434.1120M85x1
STY-390-20-1064390459.97720270X27038.0125M85x1
STY-420-10LNS-1064420481.3210300X30081.890M85x1

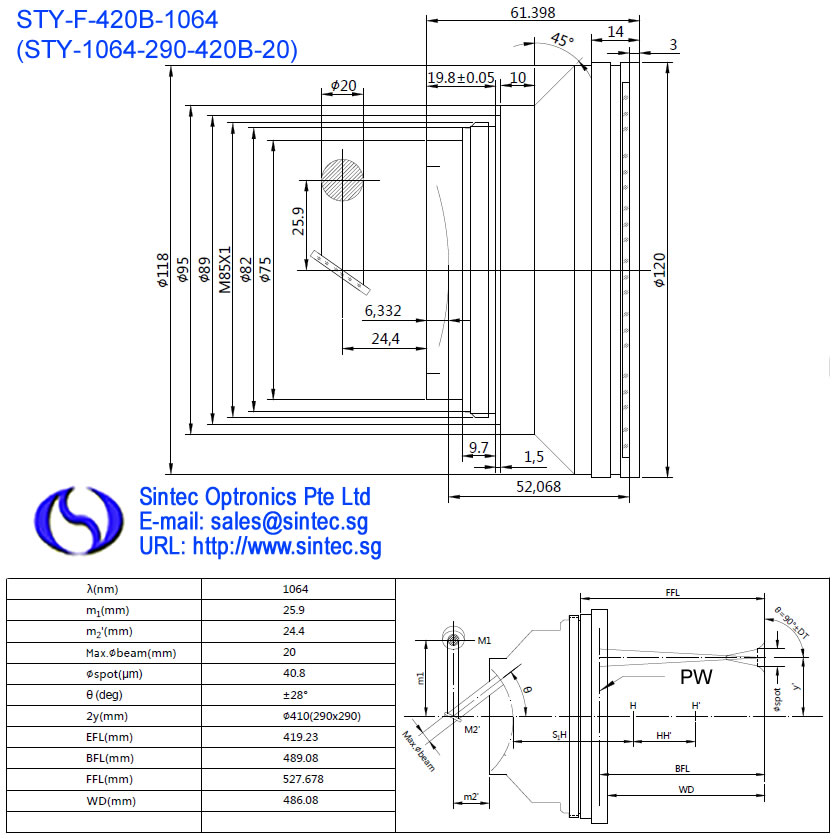

STY-420B-1064 420486.0820300X30040.9120M85x1
STY-420-30-1064420491.0330280X28027.3140M102X1/M112X1

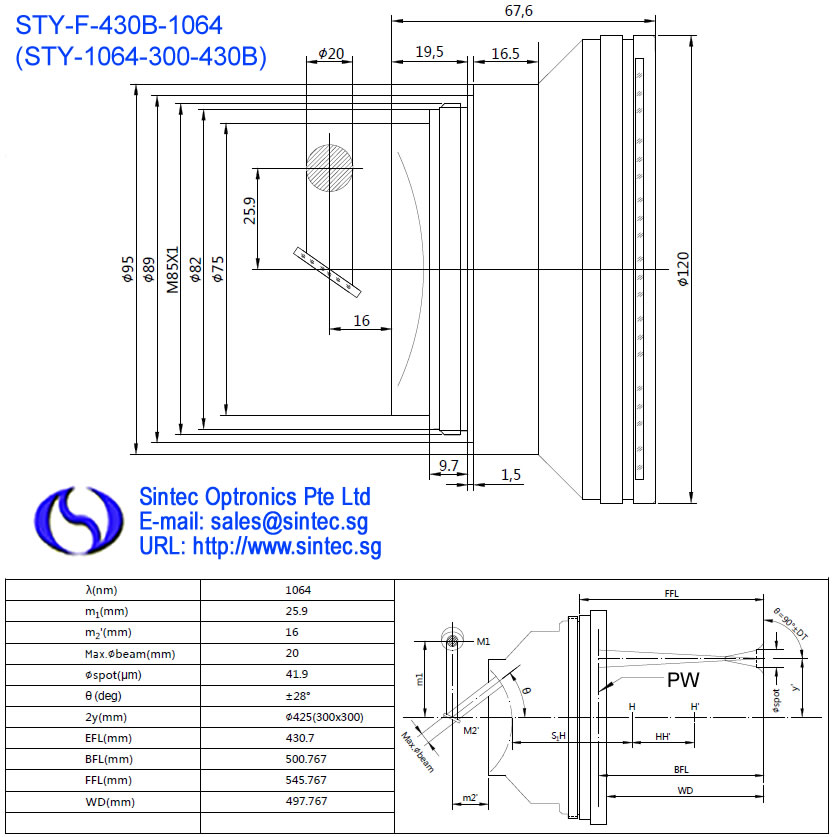

STY-430B-1064 430497.7720300X30041.9120M85x1
STY-515-1064515570.3520400X40050.1120M85x1
STY-525-1064525604.7320402X40251.1125M85x1
STY-580-1064580670.1920400X40056.5125M85x1
STY-815-1064815899.8320565X56579.3125M85x1

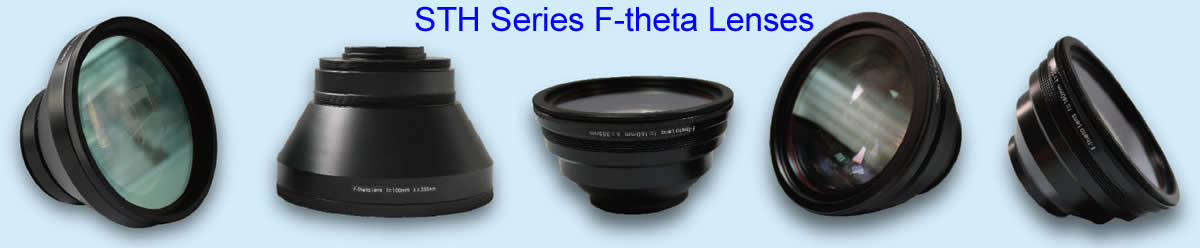

STH Series 1064nm F-theta Lens

STH Series f-theta Lenses

ModelFL
mm
WD
mm
EP
mm
SA
max
SAR
mm
FSD
µm
Mirrors L2/L1
mm
MT
STH-1064-28-63-863778±18º28x281510/10M39x1/M55x1
STH-1064-50-63-12637812±28º50x501216/16M85x1/M79x1
STH-1064-50-80-880928±25º50x502010/10M39x1/M55x1
STH-1064-63-100-81001148±25º63x632410/10M39x1/M55x1
STH-1064-70-100-12100114.612±28º70x701616/16M85x1/M79x1
STH-1064-70-100-2010012520±28º70x7061718/24M85x1/M79x1
STH-1064-90-130-1213014312±28º90x902116/16M85x1/M79x1
STH-1064-105-160-81601858±25º105x1053910/10M39x1/M55x1

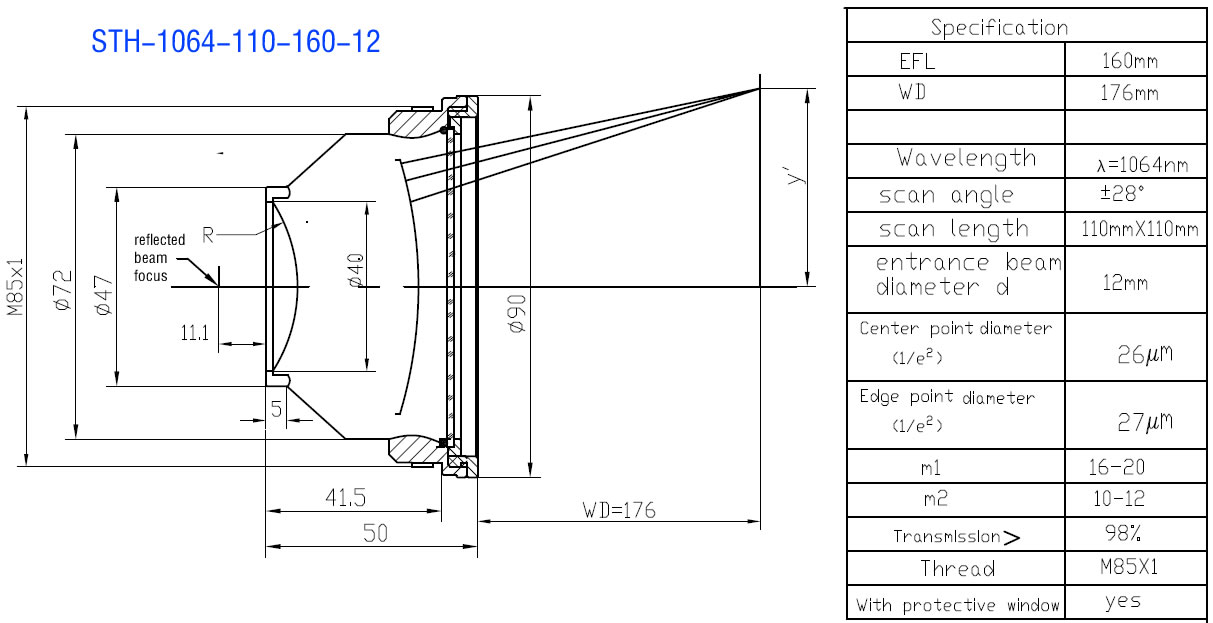

STH-1064-110-160-1216017612±28º110x1102616/16M85x1/M79x1
STH-1064-110-163-2016318520±28º110x1101718/24M85x1/M79x1
STH-1064-100-170-3017019530±25º100x1001126/30M85x1/M95x1
M102x1/M112x1
STH-1064-140-210-1221023012±28º140x1403416/16M85x1/M79x1
STH-1064-140-210-3021026330±25º140x1401526/30M85x1/M95x1
M102x1/M112x1
STH-1064-150-210-2021025520±28º150x1502418/24M85x1/M79x1
STH-1064-150-225-1222525012±28º150x1503416/16M85x1/M79x1
STH-1064-170-254-82542838±25º170x1706210/10M39x1/M55x1
STH-1064-175-254-1625428416±28º175x1753116/16M85x1/M79x1

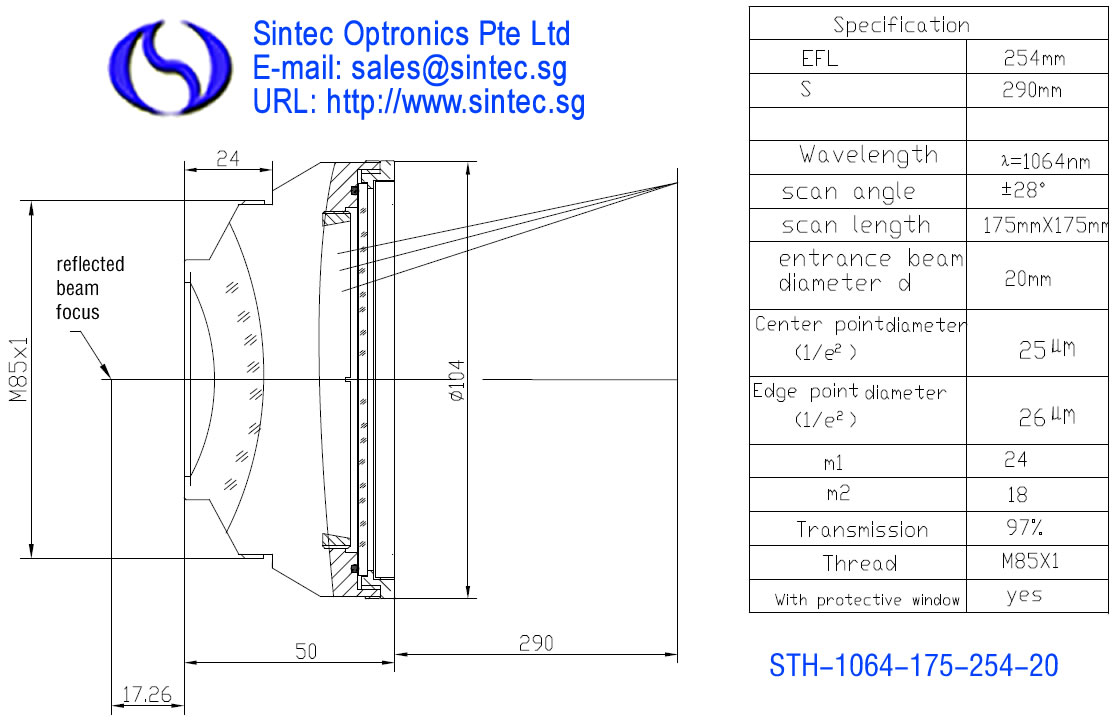

STH-1064-175-254-2025428520±28º175x1753118/24M85x1/M79x1
STH-1064-175-254-3025431230±25º175x1751726/30M85x1/M95x1
M102x1/M112x1
STH-1064-200-290-1629032416±28º200x2003116/16M85x1/M79x1
STH-1064-220-330-1633034616±28º220x2204016/16M85x1/M79x1
STH-1064-220-330-83303608±25º220x2208110/10M39x1/M55x1
STH-1064-220-330-2033037720±28º220x2204018/24M85x1/M79x1
STH-1064-220-330-3033036530±25º220x2202526/30M85x1/M95x1
M102x1/M112x1
STH-1064-250-380-1638041416±28º250x2504616/16M85x1/M79x1
STH-1064-300-420-1642046716±28º300x3005016/16M85x1/M79x1

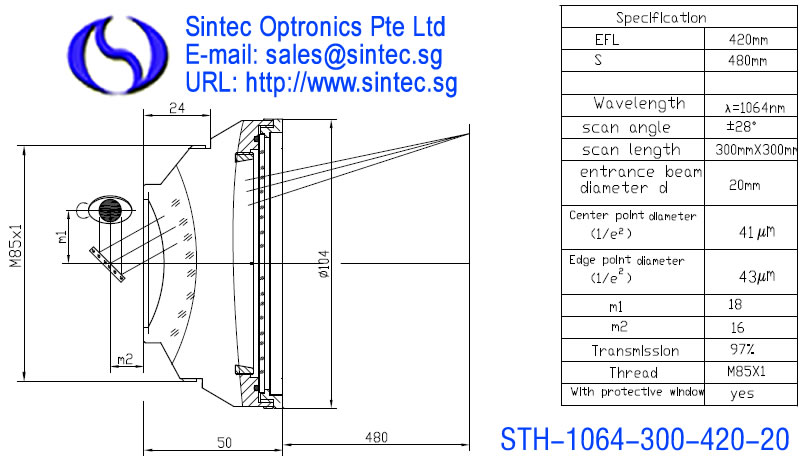

STH-1064-300-420-2042046720±28º300x3005518/24M85x1/M79x1
STH-1064-360-500-2050053520±28º360x3606618/24M85x1/M79x1
STH-1064-400-650-2065069720±28º400x4008518/24M85x1/M79x1

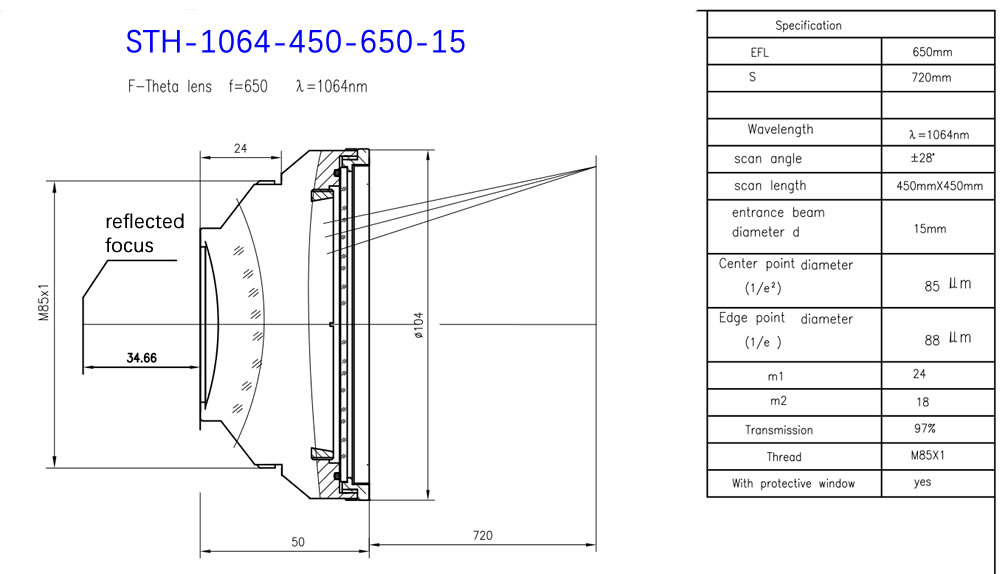

STH-1064-450-650-1565072015±28º400x4008518/24M85x1
STH-1064-500-800-2080086020±28º500x50010418/24M85x1/M79x1
STH-1064-600-900-2090097320±28º600x60011718/24M85x1/M79x1

STW Series 1064nm F-theta Lenses

Part   numberFL (mm)WD (mm)SAR (mm)SAEP (mm)FSD (μm)MT (mm)Material
STW-1064-35-73D5735535*35±8°5200-400M39*0.75Glass
STW-1064-40-80-D258078.8240*40±21°2512-30M85*1Glass
STW-1064-45-808091.3545*45±23°1011.3-12.4M55*1Glass
STW-1064-50-100100110.4450*50±20°1010-12M55*1Glass
STW-1064-50-100-D30100115.5350*50±25°307-12M112*1Glass
STW-1064-50-100Q100124.950*50士21°1034.3-40.4M55*1Quartz
STW-1064-50-160160183.350*50±9°840-45M39*1Glass
STW-1064-50-160-D12160175.250*50±25°1228-30M39*1Glass
STW-1064-50-210-D10210246.3850*50±10°1038-40M79*1Glass
STW-1064-50-210Q-D10210261.2550*50士9.7°1040.52-40.61M39*1Quartz
STW-1064-51-100   D20100115.851*51±20.8°2017-34M85*1Glass
STW-1064-63-86369.0233*33±21.6°86.95-12M39*1Glass
STW-1064-65-125125146.6365*65±21.3°1512.3-13.8M85*1Glass
STW-1064-66-125Q-D1412558.466*66土20.83°1417-20M58*1Quartz
STW-1064-70-100G10098.870*70±25°1410-12M85*1Glass
STW-1064-70-100N10097.5570*70±25°1020-20M85*1Glass
STW-1064-70-100Q100123.4270*70土25°1020-35M85*1Quartz
STW-1064-70-160-D30160170.270*70±18°3015-35M100*1Glass
STW-1064-80-88094.0452*52±27°89.84-10.18M39*1Glass
STW-1064-80-125-D15125152.680*80±26.4°1516-19M85*1Glass
STW-1064-80-170AC170217.580*80±25°3050-60M112*1Glass
STW-1064-94-1630Q-V1163204.794*94土25°2020-26.4M85*1Quartz
STW-1064-96-160-D20160180.8596*96±25°2054-108M85*1Glass
STW-1064-96-170-D30170181.396*96±22.9°3028-76M95*1Glass
STW-1064-100-8100117.8560*60±24.4°824-25M39*1Glass
STW-1064-100-160A160178.6100*100±24.5°1025-30M85*1Glass
STW-1064-100-160-D20160187.9100*100±24.6°2021.2-33.4M85*1Glass
STW-1064-100-160Q-D14160207.83100*100±24.7°1421.8-28.1法兰Quartz
STW-1064-100-165-D25165197.14100*100±24.8°2518-28M85*1Glass
STW-1064-100-254-D30254303.33100*100±24.9°3016-17M85*1Glass
STW-1064-107-163163180.86107*107±24.10°1226-28M85*1Glass
STW-1064-110-170170194.7110*110±24.11°3025-30M102*1Glass
STW-1064-110-170D30170192.9110*110±24.12°3012月16日M102*1Glass
STW-1064-111-254254277.13111*111±24.13845-45M39*1Glass
STW-1064-112-160Q-260191112*112±24.14°1032-38M85*1Quartz
STW-1064-112-163163181.93112*112±24.15°1032-36M85*1Glass
STW-1064-112-163A163182.1112*112±24.16°1423-55M85*1Glass

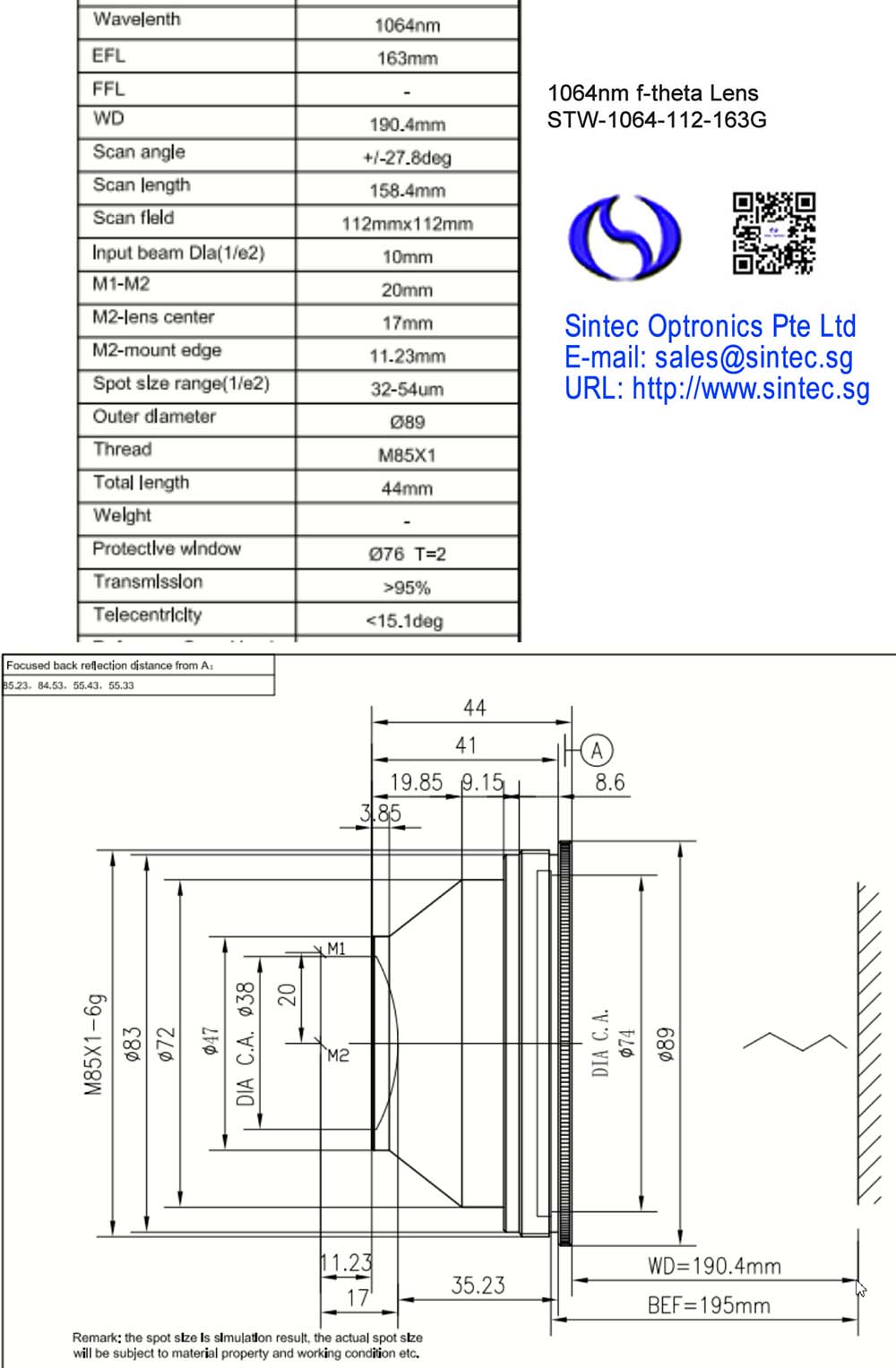

STW-1064-112-163G163190.4112*112±27.8°1032-54M85*1Glass
STW-1064-120-170(D14)170193.7120*120±24.18°1423-28M85*1Glass
STW-1064-130-210-D30-BC210255.81130*130±24.19°3020-24M102*1Glass
STW-1064-130-210A210226.1130*130±24.20°3020-24M112*1Glass
STW-1064-135-200200237.15135*135±24.21°1428-35M85*1Glass
STW-1064-140-210210238.4140*140±24.22°1450-54M85'1Glass
STW-1064-140-350Q-D7350357.72140*140±24.23°790-108M39*1Quartz
STW-1064-142-277Q277347.5142*142±24.241532-33M85*1Quartz
STW-1064-150-210G210245.1150*150±24.251030-62M85"1Glass
STW-1064-150-305-D10305384.31150*150±24.261058.44-59.61M79*1Quartz
STW-1064-152-192192221.77152*152±24.27°1540-403.875-32ThdGlass
STW-1064-160-8160184.8190*90±24.28°813.65-11.03M39*1Glass
STW-1064-F160B160182.94110*110±24.29°1226.8-38M85*1Glass
STW-1064-160-210G210246.3160*160±24.30°10106-110M79'1Glass
STW-1064-165-254-D20254294.5165*165±24.31°2026-32M85*1Quartz
STW-1064-F166-30165197.0785*85±24.32°3018-46M85*1Glass
STW-1064-169-255-D20255295.16169*169±24.33°2040.6-43.9M85*1Glass
STW-1064-170-255Q-D20255319.44170*170±24.34°2020-28M85*1Quartz
STW-1064-174-254G254298174*174±24.351025.3-27.1M85*1Glass
STW-1064-175-254254288.95175*175±24.361449-51M85*1Glass
STW-1064-175-450450250.44175*175±24.37835-48M79*1Glass
STW-1064-175-254Q254304.18175*175±24.38°1035-35M85*1Quartz
STW-1064-180-254-D10254295180*180±24.39°1025-32M85*1Quartz
STW-1064-180-254-D14254253.05180*180±24.40°1436-40M85*1Quartz
STW-1064-180-260260300.15180*180±24.41°10110-120M85*1Glass
STW-1064-200-500Q-D7500514.27200*200±24.42°7130-146M39*1Quartz
STW-1064-200-300-D10300325.21200*200±24.431068-112M85*1Glass
STW-1064-200-310-25310352.34200*200±24.442558-62M85*1Glass
STW-1064-205-330330385205*205±24.451440-60M85*1Glass
STW-1064-210-330330371.46210*210±24.461442-55M85*lGlass
STW-1064-220-330G330383.41220*220±24.471257-64M85*lGlass
STW-1064-220-350-D10350407.97220*220±24.481052-60M85*1Quartz
STW-1064-205   30Q-D10330362205*205±24.491062-67M79*1Quartz
STW-1064-215-340Q340203.82215*215±24.502030-46M85*1Quartz
STW-1064-250-735Q-D7735752.16250*250±24.517190-200M39*1Quartz
STW-1064-254-8254293.55155*155±24.52825-27M39*1Glass
STW-1064-254-8F254279.3150*150±24.53837-42M39*1Glass
STW-1064-255-360360391.82255*255±24.54°1280-90M85*1Glass
STW-1064-266-295295326.8198*198±24.55°1444-50M85*1Glass
STW-1064-280-420Q-V1420510.6280*280±24.56°1458-78M85*1Quartz
STW-1064-300-420420492.04300*300±24.57°1458-83M85*lGlass
STW-1064-300-420420463.2300*300±24.58°1454-74M85*1Glass
STW-1064-300-420-D30420472.13300*300±24.59°3030-30M149*1Glass
STW-1064-305-420-D14420482.5305*305±24.60°1458-63M95*1Glass
STW-1064-305-338C340203.82215*215±24.61°2030-42M85*lGlass
STW-1064-320-420-D30420391.8320*320±24.62°3028-38M150*1Glass
STW-1064-320-450Q450515.93320*320±24.63°1445-60M85*1Quartz
STW-1064-330-580580709.53330*330±24.64°1083.3-83.8M85*lGlass
STW-1064-340-500Q-D20500598.47340*340±24.65°2085-97M85*1Quartz
STW-1064-400-525525597.28400*400±24.66°10100-120M79*lGlass
STW-1064-400-623-D10623652.74400*400±24.67°10120-127.5M79*lGlass
STW-1064-425-875Q-D20875987.92425*425±24.68°2080-130M85*1Quartz
STW-1064-450-670QD15670753.46450*450±24.69°1580-90M85*1Quartz
STW-1064-450-700-D10700760.97450*450±24.70°10135440.6M79*lGlass
STW-1064-500-779-D10779829.17500*500±24.71°10150-159M79*1Glass
STW-1064-500-815815970.22500*500±24.72°2445-55M102*1Glass
STW-1064-600-930-D10-LP930991.3600*600±24.73°10179-191M79*1Glass
STW-1064-650-815815886.29650*650±24.74°3040-48M85*1Glass
STW-1064-900-130013001342.51900*900±24.75°3086-95M128*1Glass
STW-1064-110-250Q-D30-WC250311.6110*110± 183016.8-57.8M112*1Quartz
STW-1075-145-330Q-D30-WC330429.2145*145± 183041-111.4M112*1Quartz
STW-1075-195-460-D30-WC460573.28195*195± 17.33030-42M112*1Quartz
STW-1070-270-550Q-D3-WC550680.52270*270±203036-42M112*1Quartz
STW-1030-950-200-400V1-WC400311.92200*200±203026-28M85*1Quartz

STC Series 1064nm F-theta Lenses

Part numberFL (mm)WD (mm)SAR (mm)EP (mm)MT (mm)Material
STC-1030-1090-112-160160188.6112*11210M85*1Quartz
STC-1030-1090-116-165-12165187.6116*11612M85*1Quartz
STC-1030-1090-175-254-15254317175*17515M79*1/M102*1Quartz
STC-1030-1090-170-254-15-M79*1.0254327170*17015M79*1.0Quartz
STC-1030-1090-175-254-20254278.2175*17520M85*1Quartz
STC-1030-1090-170-254-20-WC254290170*17020
Quartz
STC-1030-1090-90-175-2017523390*9020M85*1Quartz
STC-1030-1090-160-260-20260333160*16020M85*1Quartz
STC-1030-1090-100-254-30-M102*1-WC254333100*10030M102*1/M85*1Quartz
STC-1030-1090-180-348-30-M102*1-WC348438180*18030M102*1Quartz
STC-1030-1090-180-400-30-M102*1-WC400501180*18030M102*1Quartz
STC-1030-1090-220-330-20330379.8220*22020M85*1Quartz
STC-1030-1090-254-420-20420510.9254*25420
Quartz
STC-1030-1090-290-430-15430529.5290*29015
Quartz
STC-1030-1090-290-430-20430529.5275*27520
Quartz
STC-1030-1090-250-500-30-M112*1-WC500607250*25030M112*1/M100*1Quartz
STC-1030-1090-70×115E-208-30-PLG208257.770*11530M72*1Quartz
STC-1030-1090-170-104-254-30-M85*1-WC254303170*10430M85*1Quartz
2_STC-1030-1090-105×200E-302-24-PLG302356.5105*20024
Quartz
STC-1030-1090-180-350-30-M102*1-WC350443180*18030M102*1Quartz
STC-1030-1090-340-180-420-30-M102*1-WC420515340*18030M102*1Quartz
STC-1030-1090-410-650-20-WC650560410*41020
Quartz
STC-1030-1090-440-650-20-WC650554.6440*44020
Quartz
STC-1064-50-80809150*5012M85*1Quartz
STC-1064-70-100100108.370*7012M85*1Quartz
STC-1064-110-160160170.2110*11012M85*1Quartz
STC-1064-150-210210278150*15012M85*1Quartz
STC-1064-175-254254295.4175*17514M85*1Quartz
STC-1064-200-290290314.9200*20014M85*1Quartz
STC-1064-220-330330343.7220*22014M85*1Quartz
STC-1064-270-380380397.1270*27014M85*1Quartz
STC-1064-300-420420437.1300*30014M85*1Quartz
STC-1064-400-525-20525567400*40020M85*1Quartz
STC-1064-450-650-20650720450*45020M85*1Quartz
STC-1064-560-800-20800861560*56020M85*1Quartz

STY Series 1064nm Telecentric F-theta Lens (Fused Silica)

Part   NumberEFL   (mm)WD   (mm)Ø   in (mm)Scan   Field (mm)Spot   Size (µm)Ø   Outside (mm)Max. IA (°)Mount   Thread
STY-32T-1030-10803231.79106X66.2901.4M85x1
STY-65T-1030-10806580.99820X2015.8900.58M85x1
STY-100HT-1030-1080100142.7261054X5419.51200.59M85x1
STY-100T-14-1030-1080100130.441450X5013.91200.5M85x1
STY-120T-10-1030-1080120168.591050X5023.41203M85x1
STY-125T-20-1030-1080125153.271455X5517.41122M85x1
2050X5012.21.8
STY-167T-1030-1080167215.51485X8523.21403.69M85x1
STY-167T-20-1030-1080167228.1162085X8516.31503.3M85x1
STY-200T-14-1030-1080200296.95414100X10027.81732
STY-200T-20-1030-1080200
20120X120


M85x1
STY-254T-14-1030-1080254376.5314110X11035.31265
STY-254T-14-1030-1080B254
14150X150



STY Series 1064nm Telecentric F-theta Lens (Optical Glass)

Part NumberEFL (mm)WD (mm)Ø in (mm)Scan Field (mm)Spot Size (µm)Ø Outside (mm)Max. IA (°)Mount Thread
STY-100T-1064100122.81555X5513.01202.1M85X1
STY-125T-1064125139.581566X6616.21203M85X1
STY-163T-10-1064163193.6421075X7531.71360.9M85X1
STY-210T-14-1064210277.13414100X10029.21344M85X1
STY-210T-30-1064210276.12730105X10513.61704M95X1/M102X1

Protection windows used in f-theta lens: we have the protection windows in the dimensions 75x1.7mm, 80x1.7mm and 113.5x2mm, which are coated on both sides at 532 - 1064nm.

If you can not find a suitable f-theta lens, please download the form here and email us your filled form. We can custom-desing and make the lenses according to your specific requirements.

  • Online submission
  • Send us a message

    CLOSE
